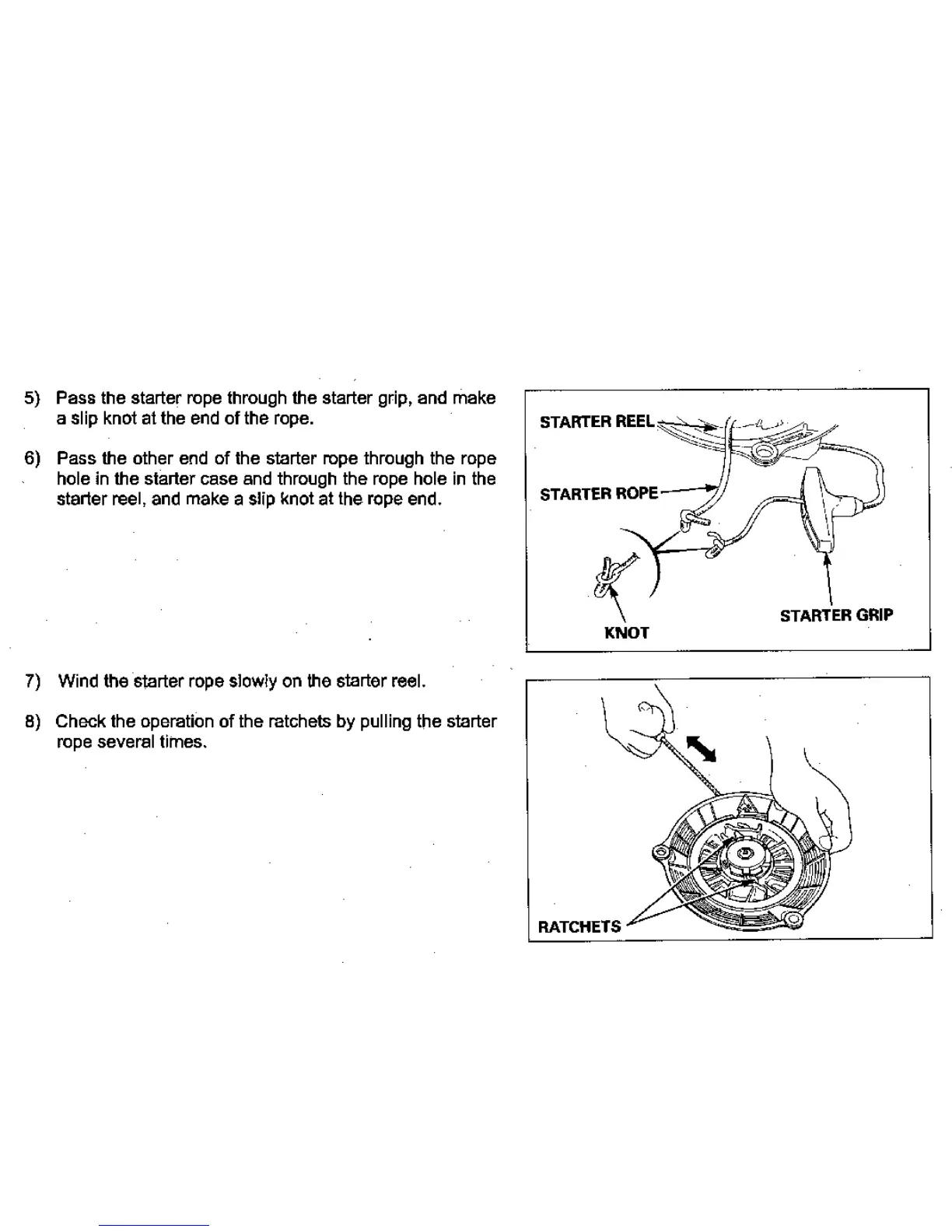

5) Pass the starter rope through the starter grip, and make
a slip knot at the end of the rope.
6) Pass the other end of the starter rope through the rope
hole in the starter case and through the rope hole in the
starter reel, and make a slip knot at the rope end.
\ STARTER GRIP
KNOT
7) Wind the starter rope slowly on the starter reel.
8) Check the operation of the ratchets by pulling the starter
rope several times.
gc160_gcaha_3599750_3721672

Honda GC190 Specifications

General

Engine Type	4-stroke, overhead cam, single-cylinder
Compression Ratio	8.5:1
Net Torque	8.3 lb-ft (11.3 Nm) at 2, 500 RPM
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto
Starting System	Recoil starter
Lubrication System	Forced splash
Fuel Type	Unleaded gasoline (86 octane or higher)
Displacement	187 cm³
Bore x Stroke	69 mm x 50 mm
Net Power Output	4.8 HP (3.6 kW) @ 3, 600 rpm
Oil Capacity	0.61 US qt (0.58 L)
Air Cleaner	Dual element
