Honda GC190 User Manual

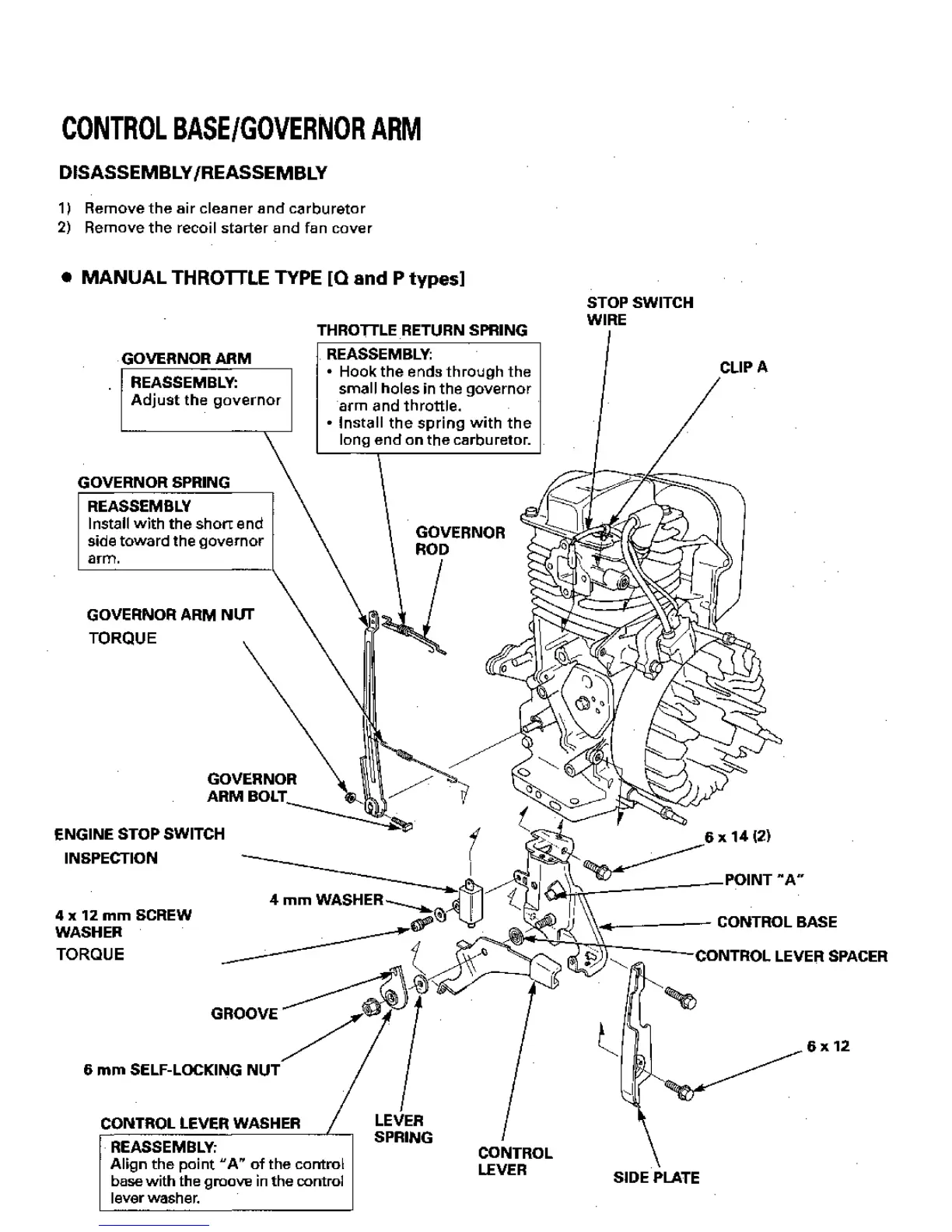

CONTROL BASE/GOVERNOR ARM
DlSASSEMBLY/REASSEMBLY
1) Remove the air cleaner and carburetor
2) Remove the recoil starter and fan cover
MANUAL THROTTLE TYPE [Q and’P types]
THROTTLE RETURN SPRING
REASSEMBLY:
Hook the ends through the
Adjust the governor
small holes in the governor
arm and throttle.
GOVERNOR SPRING \
STOP SWITCH
WIRE
I .CLIP A
Install the spring with the
long end on the carburetor.
nstall with the short end
ide toward the governor
GOVERNOR ARM NUT
TORQUE
GOVERNOR
ENGINE STOP SWITCH
INSPECTION
4 x 12 mm SCREW
WASHER
TORQUE TROL LEVER SPACER
ONTROL BASE
6 mm SELF-LOCKING NUT
CONTROL
ase with the groove in the control
1 lever washer.
I
gc160_gcaha_3599750_3721672

Honda GC190 Specifications

General

Engine Type	4-stroke, overhead cam, single-cylinder
Compression Ratio	8.5:1
Net Torque	8.3 lb-ft (11.3 Nm) at 2, 500 RPM
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto
Starting System	Recoil starter
Lubrication System	Forced splash
Fuel Type	Unleaded gasoline (86 octane or higher)
Displacement	187 cm³
Bore x Stroke	69 mm x 50 mm
Net Power Output	4.8 HP (3.6 kW) @ 3, 600 rpm
Oil Capacity	0.61 US qt (0.58 L)
Air Cleaner	Dual element
