Honda GCV160 User Manual

2009.01.10 E
E-22
109

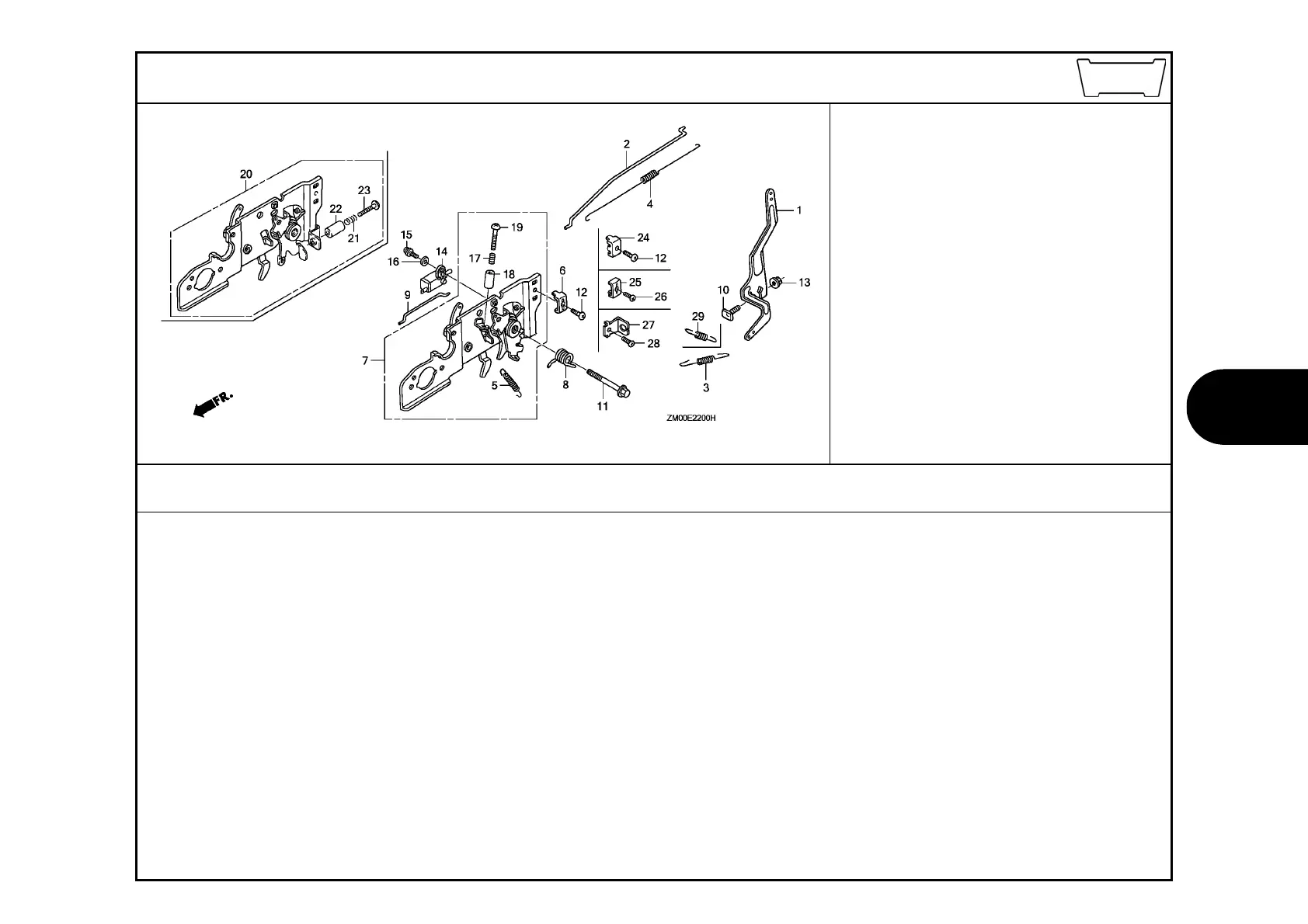

CONTROL(1)
2
24 16617-VG3-000 HOLDER, CABLE ••••••••••••••• 1 - - - - - - 2439634 -------- A1A,A1C,A1E,A1E7,A1E8,A1G7,A1P,A1W2,A1W7,A2A,A2C
A2E,A2E4,A2E7,A2E8,A2E9,A2G7,A3E,A7E1,N1,N1D,N1E1
N1E2,N1E7,N1J1,N1R,N1U,N1W,N1W1,N1W2,N1W7,N1W8
N1W9,N2,N2E,N2E1,N2E3,N2E7,N2E8,N2E9,N2U,N3U,N3V
N7A1
- 1 1 1 - 1 1 -------- -------- A1AW,A1E,A1G9,A1M,A1P,A2A9,A2G4,A3E,A3E9,A3G9,A3T9
A3W7,A3W8,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1,C3E
C3E1,C4E,C4E1,E1G7,E2G7,NBL1,N1D,N1E1,N1E2,N1J1
N1R,N1T8,N1T9,N3T8,N3T9,N3U,N3W8,N3W9,N7S1,S1G4
S2E2,S2E3,S3E9,S3G9,S4E4,S4E9,S4G4,S4G9
- - 1 - - 1 1 -------- -------- A1A,A1E7,A2E7,N1U,N2U,N3V,N7A1
- - - 1 - - - 1239888 -------- A1E7,A1E8,A1G7,A1W7,A2E7,A2E8,A2E9,A2G7,A2G9,A3E7
A7E1,N1E7,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N7A1
- - - - 1 - -
25 16576-891-000 HOLDER, CABLE ••••••••••••••• - 1 - - - - - -------- -------- A1AS
26 90016-Z0A-V00 SCREW, RECESSED, 5X18 ••••••• - 1 - - - - - -------- -------- A1AS
27 16617-Z0L-800 HOLDER, CABLE ••••••••••••••• - 1 1 - - 1 1 -------- -------- BHH,BHH1,EHHB
28 93500-05008-0A SCREW, PAN, 5X8 ••••••••••••• - 1 1 - - 1 1 -------- -------- BHH,BHH1,EHHB
29 16563-Z1L-850 SPRING, IDLE GOVERNOR ••••••• - - - 1 - - - -------- -------- S1G4,S2E3,S3G9,S4G4,S4G9
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
I 6

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
