Honda GCV160 User Manual

October 29,2011
CODE NO.
13ZM00E8
PARTS CATALOGUE NEWS
Honda Motor Co., Ltd.
Customer Service Technology Development Division
PARTS CATALOGUE - CORRECTED
PARTS
CATALOGUE
NEWS
GCV160
GCV160A
GCV160A0
GCV160E
GCV160LE
GCV160LA
GCV160LA0
Printed in Japan NEWS NO. 033
Reqd.QTY
Block
No.
Ref.
No.
Note Part No. Description
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No. Parts catalogue code
E-22 7 L 16580-Z0M-870 BASE COMP., CONTROL........... - - - 1 - - - 2511562 3135603 A1G9,A2G4,A2G7,A2G9,A3E7,A3E9,A3G9,A3W8
A4G4,A4G7,A4G9
- - - - 1 - - 2511562 3135603 A2A9,A4A9

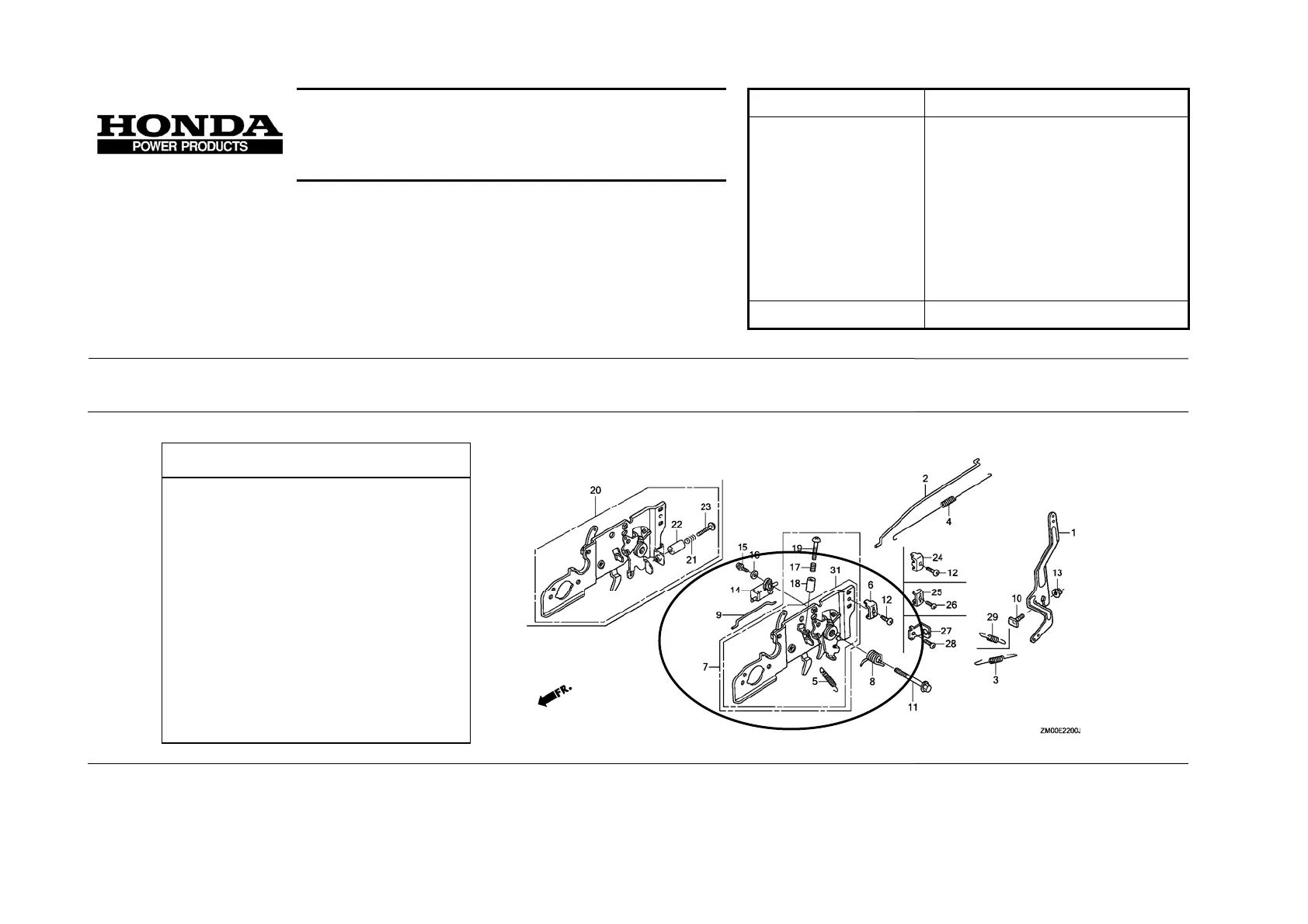

CONTROL(1) E-22
7 (20,31)
1161A2 BASE, CONTROL ････････････････ 0.3
Ref. (Relative ref. Number)
No. LON Description FRT
NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION
T:APPLICATION CORRECTION Z:REMARKS CHANGE
1/3

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
