Honda GCV160 User Manual

90
2009.01.10 E
2
E-19

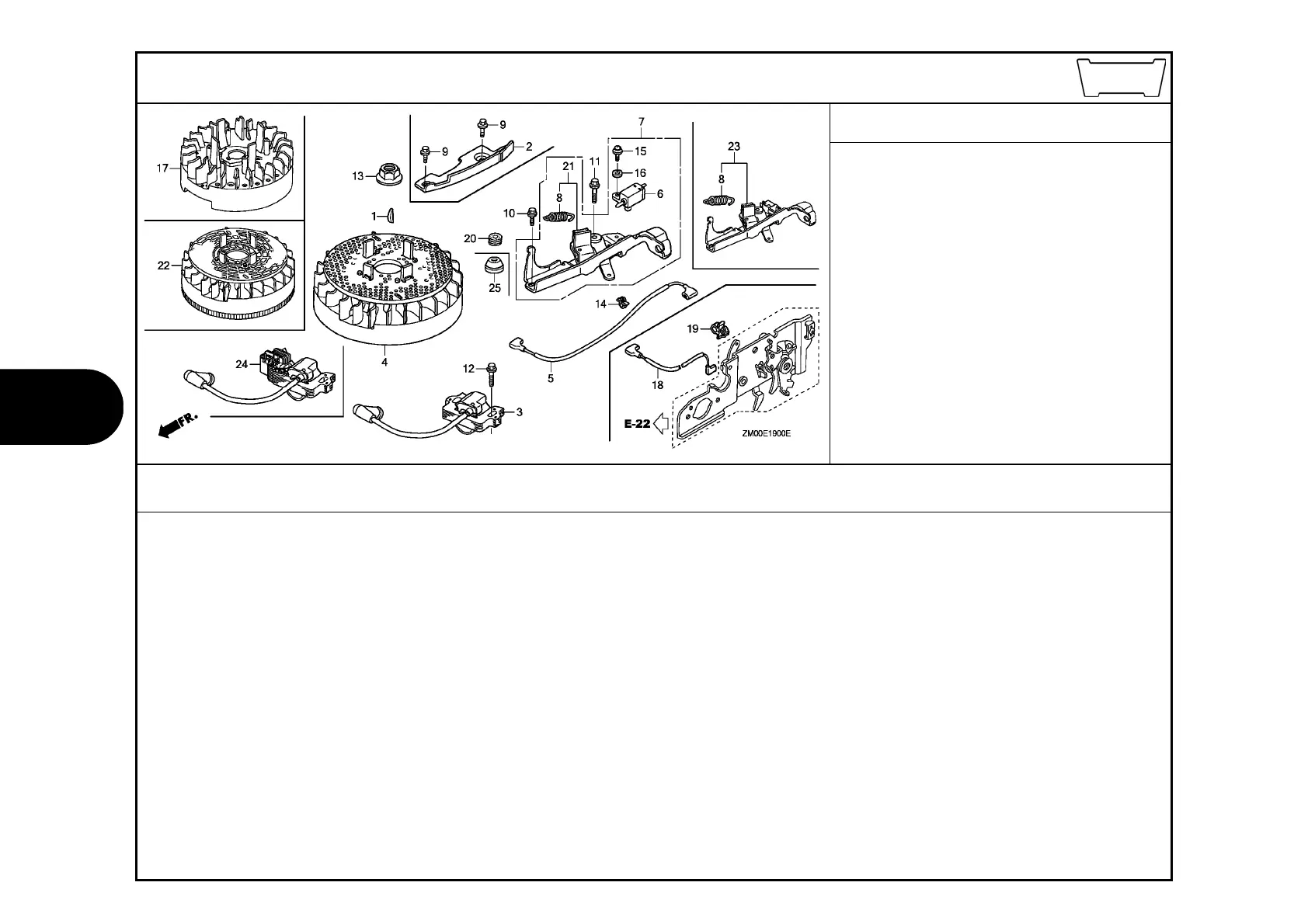

FLYWHEEL(1)
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
1 13331-357-000 KEY, SPECIAL WOODRUFF, 25X18 1 - - 1 1 - -
- 1 1 - - 1 1 -------- -------- A1A,A1AE,A1AF,A1AS,A1AW,A1C,A1E,A1E7,A1E8,A1M,A1W7
A2A,A2C,A2E7,A2E8,A2E9,A2G7,A3A,A3E,A7E1,C1E,C1E1
C2E,C2E1,C3E,C3E1,C4E,C4E1,EHHB,E1A2,E1A4,E1G7
E2G7,E5A4,N1C,N1E1,N1E7,N1R,N1U,N1W7,N1W8,N1W9
N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5C,N7A1,N7S1,RTL1
R1A,R3A,R3A1,STA1,S1A,S1A1,S1M,S2G7,S3A,S3A2,S3H
S3H2
- 1 - - - - - -------- -------- A2R,BHH,BHH1,N1A,N1AF,N1L,N5AF,N5MF,N5R
- - - - - 1 - -------- 6702082 A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R
2 19612-ZM0-000 PLATE, SIDE ••••••••••••••••• 1 - - - - - - -------- -------- N2D
1 - - - - - - -------- 2340423 A2R,N1D,N1U,N2U,N3U,N3V
- 1 - - - - - -------- 1360691 A2R,N1A,N1C,N1U,N2U,N3V,N5A,N5C
19612-ZM0-J20 •••••••••••••••••••••••••••• 1 - - 1 1 - - -------- -------- N1E1,N1E2,N1E7,N1J1,N1R,N1W,N1W1,N1W2,N1W7,N1W8
N1W9,N2E,N2E1,N2E2,N2E3,N2E7,N2E8,N2E9,N7A1
1 - - - - - - 2340424 -------- A2R,N1D,N1U,N2U,N3U,N3V
- 1 - 1 - - - -------- -------- BHH1,N1D,N1T8,N1T9,N3T8,N3T9,N3W8,N3W9
- 1 - - - - - -------- 5008780 BHH,N1AF,N1E1,N1E7,N1L,N1R,N1W7,N1W8,N1W9,N2E7
N2E8,N2E9,N3U,N5AF,N7A1,N7S1
- 1 - - - - - 1360692 5008780 A2R,N1A,N1C,N1U,N2U,N3V,N5A,N5C
- - - 1 - - - -------- -------- A2R
19612-Z0L-000 •••••••••••••••••••••••••••• - 1 - 1 - - - -------- -------- EHHB,N5MF,N5R,S1G4
- 1 - - - - - 5008781 -------- A2R,BHH,N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R,N1U,N1W7
N1W8,N1W9,N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C
N7A1,N7S1
- - 1 - - 1 1 -------- -------- N1R,N1U,N2U,N3U,N3V,N7A1,N7S1
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
2 1121A7 PLATE, SIDE •••••••••••••••••• 0.2
3 (24)
6141A5 COIL, IGNITION(ONE) •••••••••• 0.2
4 (17,22)
2161B5 FLYWHEEL ••••••••••••••••••••• 0.3
5 (18)
6111B3 CORD, STOP SWITCH •••••••••••• 0.1
6 6151D9 SWITCH, ENGINE STOP •••••••••• 0.2
7 (23)
6141A0 BRAKE ASSEMBLY, ENGINE STOP •• 0.3
8 4151E0 SPRING, BRAKE LEVER •••••••••• 0.2
H 3

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
