Honda GCV160 User Manual

84
2009.01.10 E
2
E-15

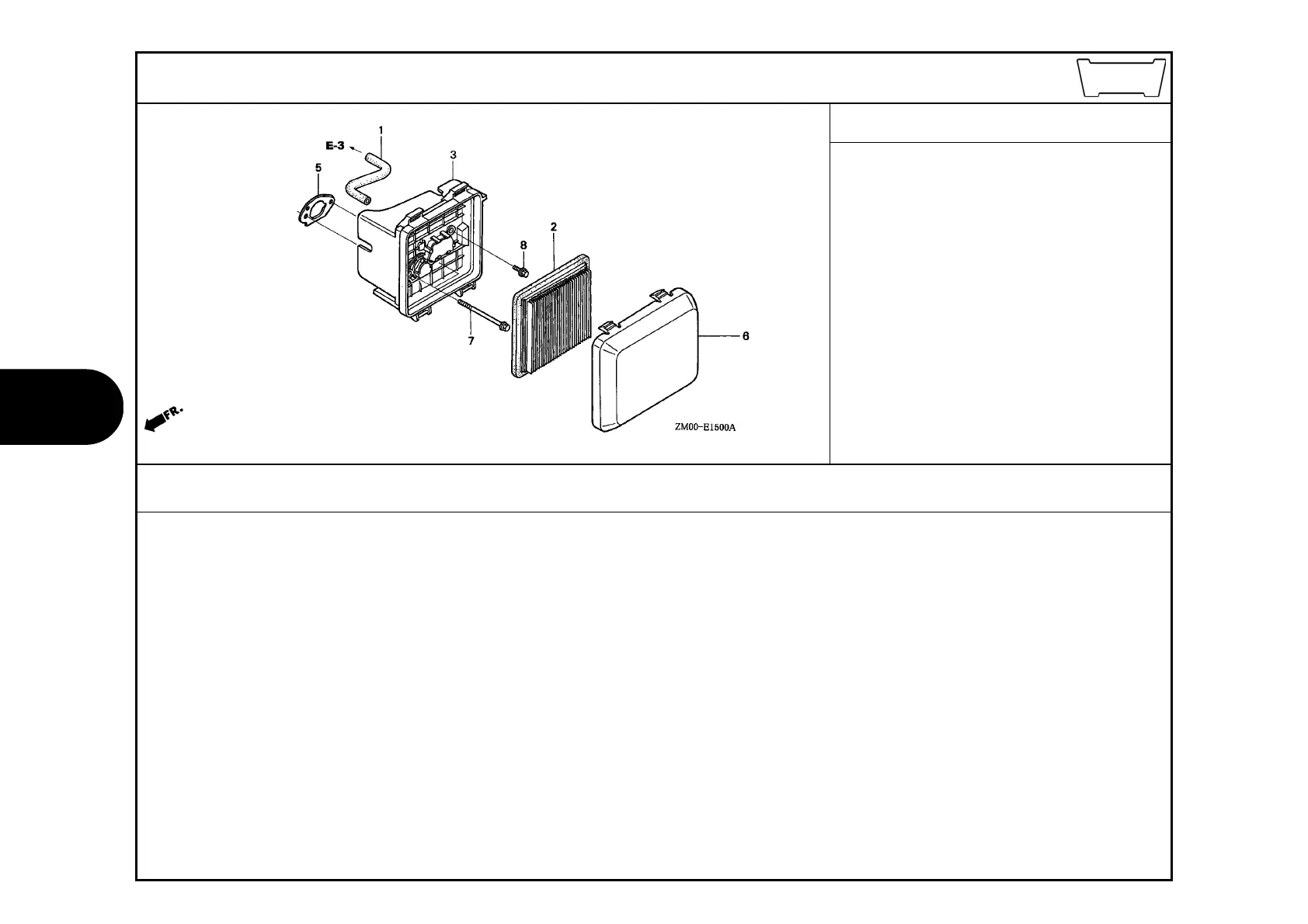

AIR CLEANER
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
1 15721-ZM0-000 TUBE, BREATHER •••••••••••••• 1 1 1 1 1 1 1
2 17211-ZL8-000 ELEMENT, AIR CLEANER •••••••• 1 - - - - - - -------- 2240610 A1A,A1C,A1E,A1J,A1P,A1U,A1W2,A2A,A2C,A2E,A2E4,A2R
A2U,A3E,A4E,N1,N1D,N1E1,N1E2,N1U,N1W,N1W1,N1W2,N2
N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V
17211-ZL8-003 •••••••••••••••••••••••••••• 1 - - - - - - -------- -------- A1E7,A1E8,A1G7,A1W7,A2E7,A2E8,A2E9,A2G7,A7E1,N1E7
N1J1,N1R,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N3U,N7A1
1 - - - - - - 2240611 -------- A1A,A1C,A1E,A1J,A1P,A1U,A1W2,A2A,A2C,A2E,A2E4,A2R
A2U,A3E,A4E,N1,N1D,N1E1,N1E2,N1U,N1W,N1W1,N1W2,N2
N2D,N2E,N2E1,N2E2,N2E3,N2U,N3V
17211-ZL8-023 •••••••••••••••••••••••••••• - 1 1 1 1 1 1
3 17220-ZM0-000 CASE ASSY., AIR CLEANER ••••• 1 - - - - - -
- 1 - 1 - - - -------- -------- A1A,A1AE,A1AF,A1AS,A1C,A1E,A2A,A2A9,A2C,A2R,A3A
A3E,BHH,EHHB,E1A4,E1G7,E2G7,E5A4,NBL1,N1A,N1AF,N1C
N5A,N5AF,N5C,N5MF,N5R,N7A1,N7S1,RTL1,R1A,R3A1,STA1
STL1,S1A,S1A1,S1M,S3A,S3A2,S3H
- 1 - - - 1 - -------- -------- A1E8,A1W7,A2E8,A2E9,A2G7,A7E1,E1A2,N1E1,N1E7,N1W7
N1W8,N1W9,N2E7,N2E8,N2E9,R3A
- 1 - - - - - -------- 6624355 A1E7,A1M,A2E7,BHH1,C1E,C1E1,C2E,C2E1,C3E,C3E1,C4E
C4E1,N1L,N1R,N1U,N2U,N3U,N3V,S2G7,S3H2
- - - 1 1 - - -------- 2441541 A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2E7,A2E8,A2E9,A2G4
A2G7,A2G9,A3E7,A3E9,A3G9,A3T9,A3W7,A3W8,A4A9,A4G4
A4G7,A4G9,A7E1,N1D,N1E1,N1E2,N1E7,N1J1,N1R,N1T8
N1T9,N1W7,N1W8,N1W9,N2E7,N2E8,N2E9,N3T8,N3T9,N3W8
N3W9,S1E1,S2E,S2E1,S2E2,S2E3,S3E9,S3G9,S4E4,S4E9
S4G4,S4G9
- - - - 1 - - -------- 2441541 A2A9,N7A1
- - - - - 1 - -------- 6624355 A1A,A1AF,A2R,BHH,N1A,N1AF,N5AF,N5MF,N5R,N7A1,N7S1
S1A,S1M,S3A,S3H
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
1 1111K5 TUBE, BREATHER ••••••••••••••• 0.1
2 3121B8 ELEMENT, AIR CLEANER ••••••••• 0.1
3 3121A5 CASE, AIR CLEANER •••••••••••• 0.2
5 3121D9 PACKING, AIR CLEANER ••••••••• 0.2
G13

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
