Honda GCV160 User Manual

2009.01.10 E
55
2
E-11

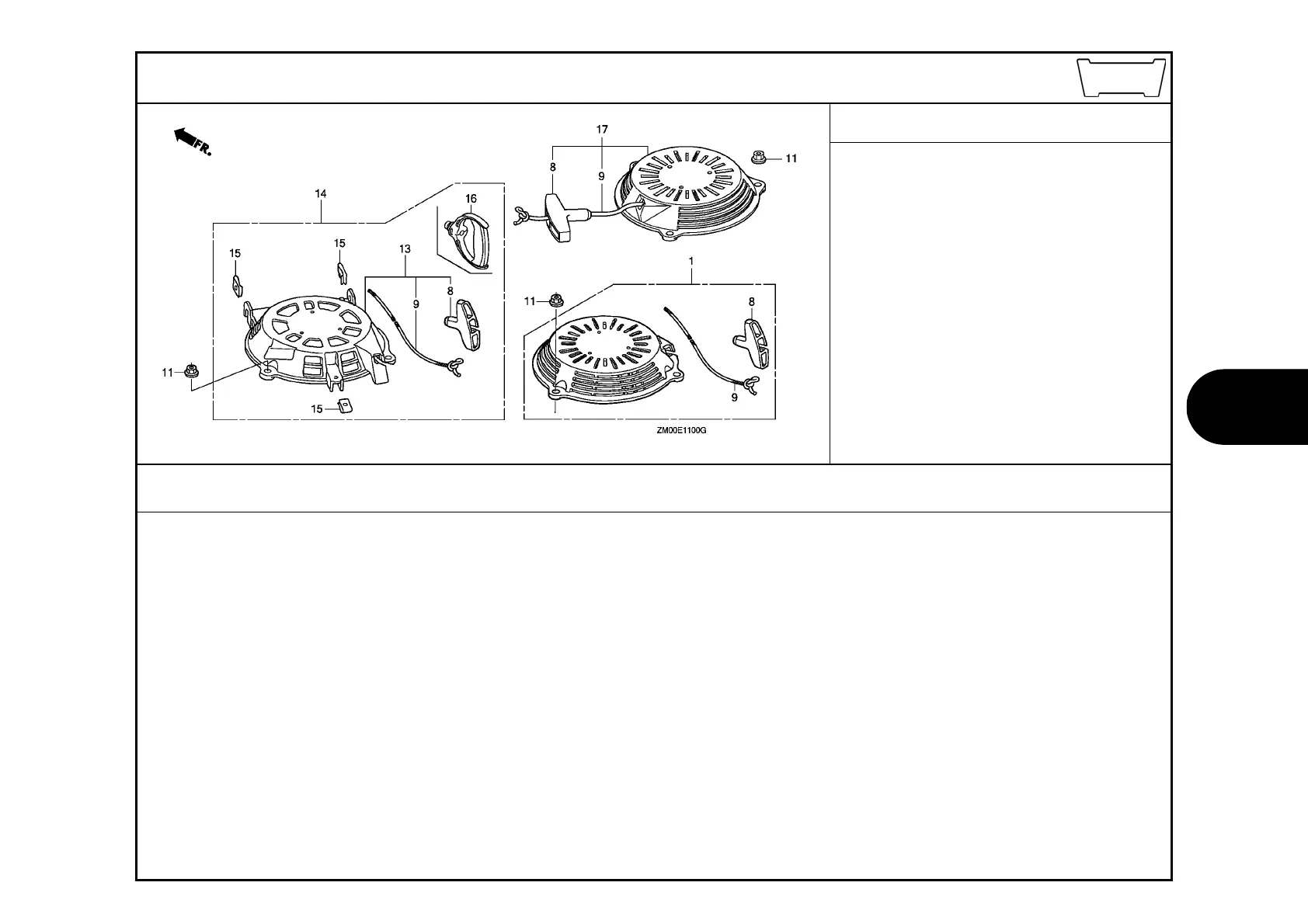

RECOIL STARTER
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
1 28400-ZM0-003ZA STARTER ASSY., RECOIL
*NH1*...................BLACK 1 - - - - - - -------- 1297891 N1D,N1E1,N1E2,N1U,N2D,N2E,N2E1,N2E2,N2E3,N2U
28400-ZM0-003ZB *R8*...............BRIGHT RED 1 - - - - - - -------- 1297891 N1E2,N1U,N2E,N2E3,N2U,N3V
28400-ZM0-013ZA *NH1*...................BLACK 1 - - - - - - -------- -------- N1E7,N1J1,N2E7,N2E8,N2E9
1 - - - - - - 1297892 -------- N1D,N1E1,N1E2,N1U,N2D,N2E,N2E1,N2E2,N2E3,N2U
1 - - - - - - -------- 2146956 A2R
28400-ZM0-013ZB *R8*...............BRIGHT RED 1 - - - - - - -------- 2424487 N2E7,N2E9
1 - - - - - - 1297892 2424487 N1E2,N1U,N2E,N2E3,N2U,N3V
28400-ZM0-013ZC *R280*..............POWER RED 1 - - - - - - 2424488 -------- N1E2,N1U,N2E,N2E3,N2E7,N2E9,N2U,N3V
28400-ZM0-023ZA *NH1*...................BLACK - 1 1 1 - - - -------- -------- N1D,N1E1,N1E2,N1E7,N1J1,N1U,N2E7,N2E8,N2E9,N2U
28400-ZM0-023ZC *R280*..............POWER RED - 1 1 1 - - - -------- -------- N1D,N1E1,N1E2,N1J1,N2E7,N2E9,N3V
- - - 1 - - - -------- -------- N1E7,N2E8
28400-ZL8-013ZA *NH1*...................BLACK 1 - - - - - - -------- -------- A7E1,N3V,N7A1
1 - - - - - - 2146957 -------- A2R
28400-ZL8-023ZA *NH1*...................BLACK - 1 1 1 - 1 1 -------- -------- A2R,A7E1,E1A4,E5A4,N1A,N1C,N1L,N5A,N5C
- 1 - 1 - - 1 -------- -------- N1AF,N5AF,N5MF,N7A1,N7S1
28400-ZL8-023ZC *R280*..............POWER RED - 1 - - - - 1 -------- -------- E1A4,E5A4,N5R
- - - 1 - - - -------- -------- A2R
28400-ZM0-631ZA STARTER ASSY., RECOIL
(LONG ROPE)
*NH1*...................BLACK
1 - - - - - - -------- 1297891
A1A,A1C,A1E,A1J,A1U,A2A,A2C,A2E,A2U,A3E,A4E,N1,N2
28400-ZM0-631ZB *R8*...............BRIGHT RED 1 - - - - - - -------- 1297891 A1E,A1P,A2E
28400-ZM0-632ZA *NH1*...................BLACK 1 - - - - - - -------- -------- A1E7,A1E8,A1G7,A2E4,A2E7,A2E8,A2E9,A2G7,N1W,N1W7
N1W8,N1W9,N3U
1 - - - - - - 1297892 -------- A1A,A1C,A1E,A1J,A1U,A2A,A2C,A2E,A2U,A3E,A4E,N1,N2
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
1 (13,14,17)
1121B9 STARTER, RECOIL •••••••••••••• 0.1
8 (16)
1121A3 GRIP, RECOIL STARTER ••••••••• 0.1
9 1121B3 ROPE, RECOIL STARTER ••••••••• 0.3
E16

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
