Honda GCV160 User Manual

54
2009.01.10 E
E-10

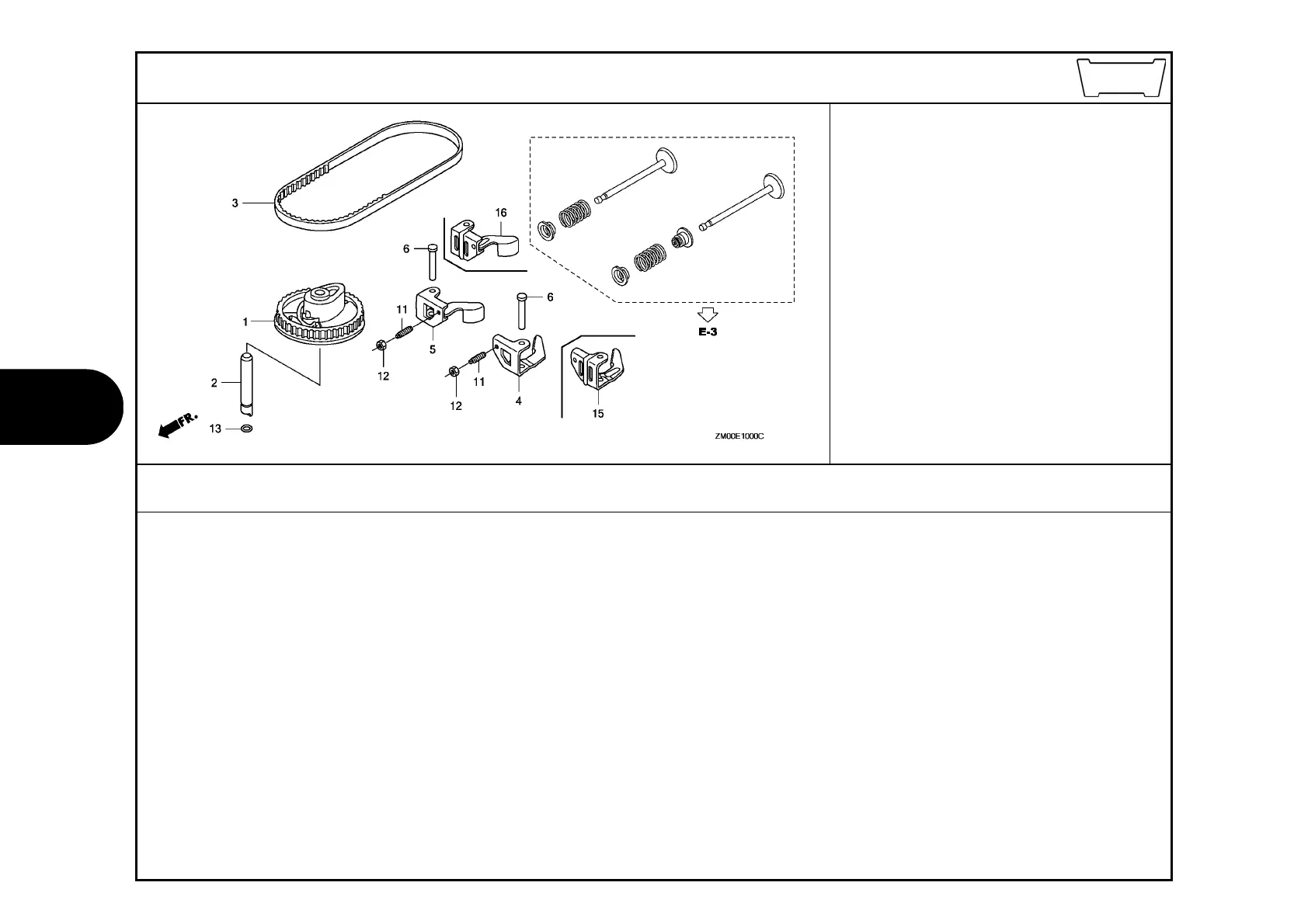

CAMSHAFT PULLEY
2
4 14431-ZL8-000 ARM, IN. VALVE ROCKER ••••••• 1 - - - - - -
5 14441-ZL8-000 ARM, EX. VALVE ROCKER ••••••• 1 - - - - - -
6 14461-ZL8-000 SHAFT, ROCKER ARM ••••••••••• 2 2 2 2 2 2 2
11 90012-333-000 SCREW, TAPPET ADJUSTING ••••• 2 2 2 2 2 2 2
12 90206-001-000 NUT, TAPPET ADJUSTING ••••••• 2 2 2 2 2 2 2
13 91301-ZM0-V31 O-RING, 6.8X1.9(ARAI) ••••••• 1 1 1 - - 1 1
91301-Z0M-003 O-RING, 6.8X1.9 ••••••••••••• - - - 1 1 - -
15 14431-Z0J-000 ARM, IN. VALVE ROCKER ••••••• - 1 1 1 1 1 1
16 14441-Z0J-000 ARM, EX. VALVE ROCKER ••••••• - 1 1 1 1 1 1
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
E15

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
