Honda GCV160 User Manual

PARTS CATALOGUE NEWS
BOOKNo.:13ZM00E8
Reqd.QTY
Block
No.
Ref.
No.
Note Part No. Description
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No. Parts catalogue code

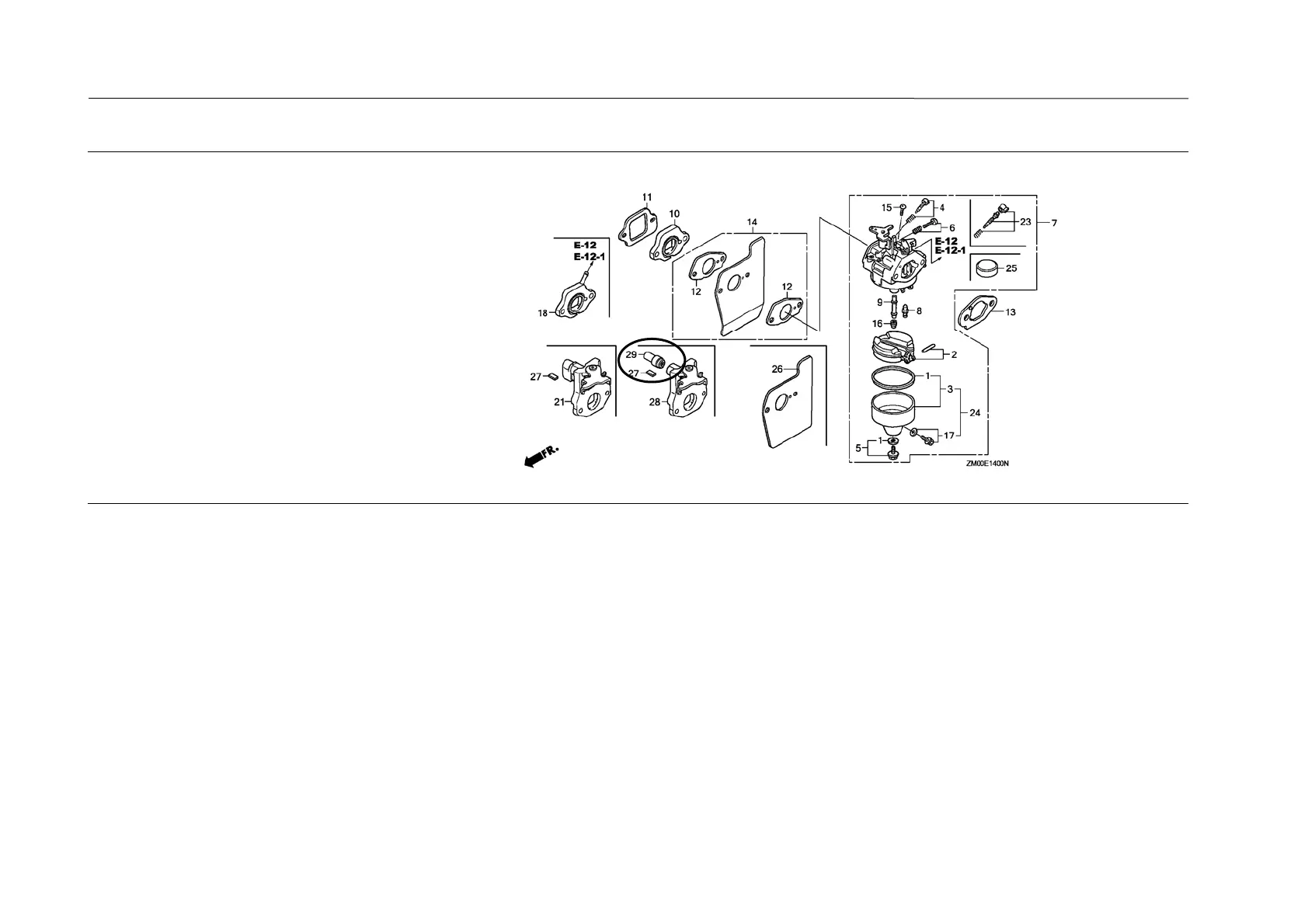

CARBURETOR E-14
E-14 7 16100-Z0L-874 CARBURETOR ASSY. (BB75E A) ... - - 1 - - - - ------- 1064371 S2G7
- - - - - - 1 ------- ------- S1M,S3H
A 16100-Z0L-875 CARBURETOR ASSY. (BB75E B) ... - - 1 - - - - 1064372 ------- S2G7
21 L 16600-Z0L-840 CONTROL ASSY., CHOKE ......... - 1 - 1 - 1 1 ------- ------- S1M,S2E2,S2E3,S2G7,S3A2,S3E9,S3G9,S3H
S4E4,S4E9,S4G4,S4G9
- - 1 - - - - ------- 1059693 S2G7
28 D 16600-Z1L-840 CONTROL ASSY., CHOKE ......... - - 1 - - - - 1059694 ------- S2G7
29 T 16620-Z1L-841 THERMOWAX ASSY. .............. - - 1 - - - - 1059694 ------- S2G7
- - - 1 - - - ------- ------- S1G4
NOTE A:PART NO.CHANGE D:NEWLY PROVIDED E:PART NO.DELETION K:REQUIRED NO.CORRECTION L:APPLICATION SERIAL NO.CORRECTION
T:APPLICATION CORRECTION Z:REMARKS CHANGE
2/2

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
