Honda GCV160 User Manual

46
2009.01.10 E
E-6

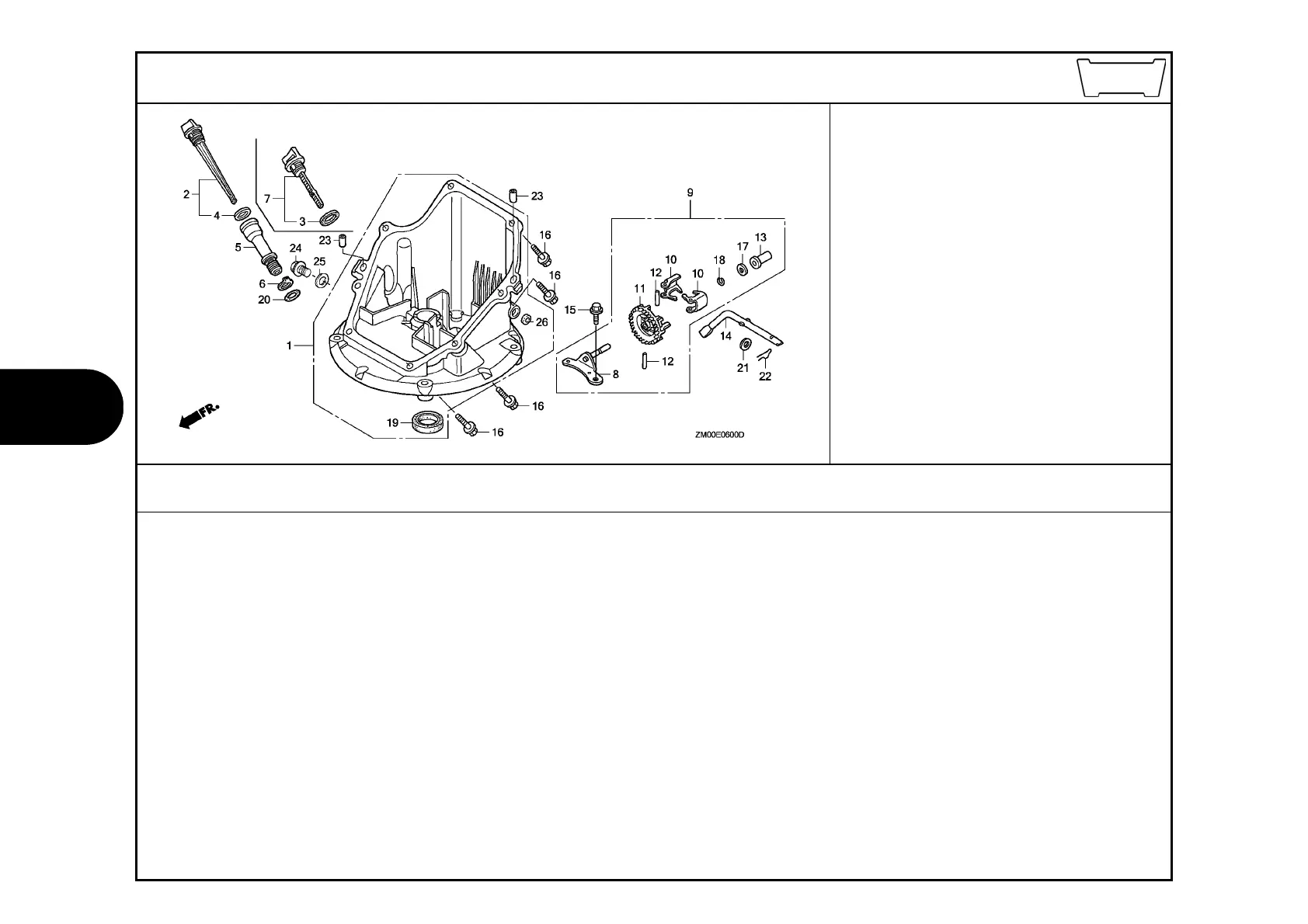

OIL PAN
2
7 15650-ZM0-003 GAUGE ASSY., OIL LEVEL •••••• 1 1 1 1 - - - -------- -------- A1J,A1M,N1D,N1J1,N1L
1 - - 1 - - - -------- -------- A1A,A1C,A2A,A2C,A2R,N1,N2,N2D
- 1 - - - - - -------- 3724306 A1A,A1AF,A1AS,A1C,A2A,A2C,A2R,A3A,N1A,N1AF,N1C,N5A
N5AF,N5C,S1A,S1A1,S3A2
15650-Z0L-000 •••••••••••••••••••••••••••• - 1 1 - - 1 1 -------- -------- A1AW,N5MF,N5R
- 1 - - - - - 3724307 -------- A1A,A1AF,A1AS,A1C,A2A,A2C,A2R,A3A,N1A,N1AF,N1C,N5A
N5AF,N5C,S1A,S1A1,S3A2
- - - - - 1 1 -------- -------- A1A,A1AF,A2R,N1A,N1AF,N5AF,S1A
8 16508-ZM0-000 SHAFT COMP., GOVERNOR HOLDER 1 - - - - - - -------- 1887052 A1A,A1C,A1E,A1J,A1P,A1U,A2A,A2C,A2E,A2R,A2U,A3E
A4E,N1,N1D,N1E1,N1E2,N1U,N1W,N2,N2D,N2E,N2E1,N2E2
N2E3,N2U,N3V
16508-ZM0-010 •••••••••••••••••••••••••••• 1 - - - - - - -------- -------- A1E7,A1E8,A1G7,A1W2,A1W7,A2E4,A2E7,A2E8,A2E9,A2G7
A7E1,N1E7,N1J1,N1R,N1W1,N1W2,N1W7,N1W8,N1W9,N2E7
N2E8,N2E9,N3U,N7A1
1 - - - - - - 1887053 -------- A1A,A1C,A1E,A1J,A1P,A1U,A2A,A2C,A2E,A2R,A2U,A3E
A4E,N1,N1D,N1E1,N1E2,N1U,N1W,N2,N2D,N2E,N2E1,N2E2
N2E3,N2U,N3V
- 1 1 1 1 1 1
9 16510-ZM0-010 GOVERNOR ASSY. •••••••••••••• 1 1 1 1 1 1 1
10 16511-ZL8-000 WEIGHT, GOVERNOR •••••••••••• 2 2 2 2 2 2 2
11 16512-ZM0-000 HOLDER, GOVERNOR WEIGHT ••••• 1 1 1 1 1 1 1
12 16513-ZE1-000 PIN, GOVERNOR WEIGHT •••••••• 2 2 2 2 2 2 2
13 16531-ZE1-000 SLIDER, GOVERNOR •••••••••••• 1 1 1 1 1 1 1
14 16541-ZM0-000 SHAFT, GOVERNOR ARM ••••••••• 1 1 1 1 1 1 1
15 90014-952-000 BOLT, FLANGE, 6X14(CT200) ••• 1 1 1 1 1 1 1
16 90121-952-000 BOLT, FLANGE, 6X25(CT200) ••• 8 8 8 8 8 8 8
17 90451-ZE1-000 WASHER, THRUST, 6MM ••••••••• 1 1 1 1 1 1 1
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
E 7

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
