Honda GCV160 User Manual

52
2009.01.10 E
E-8

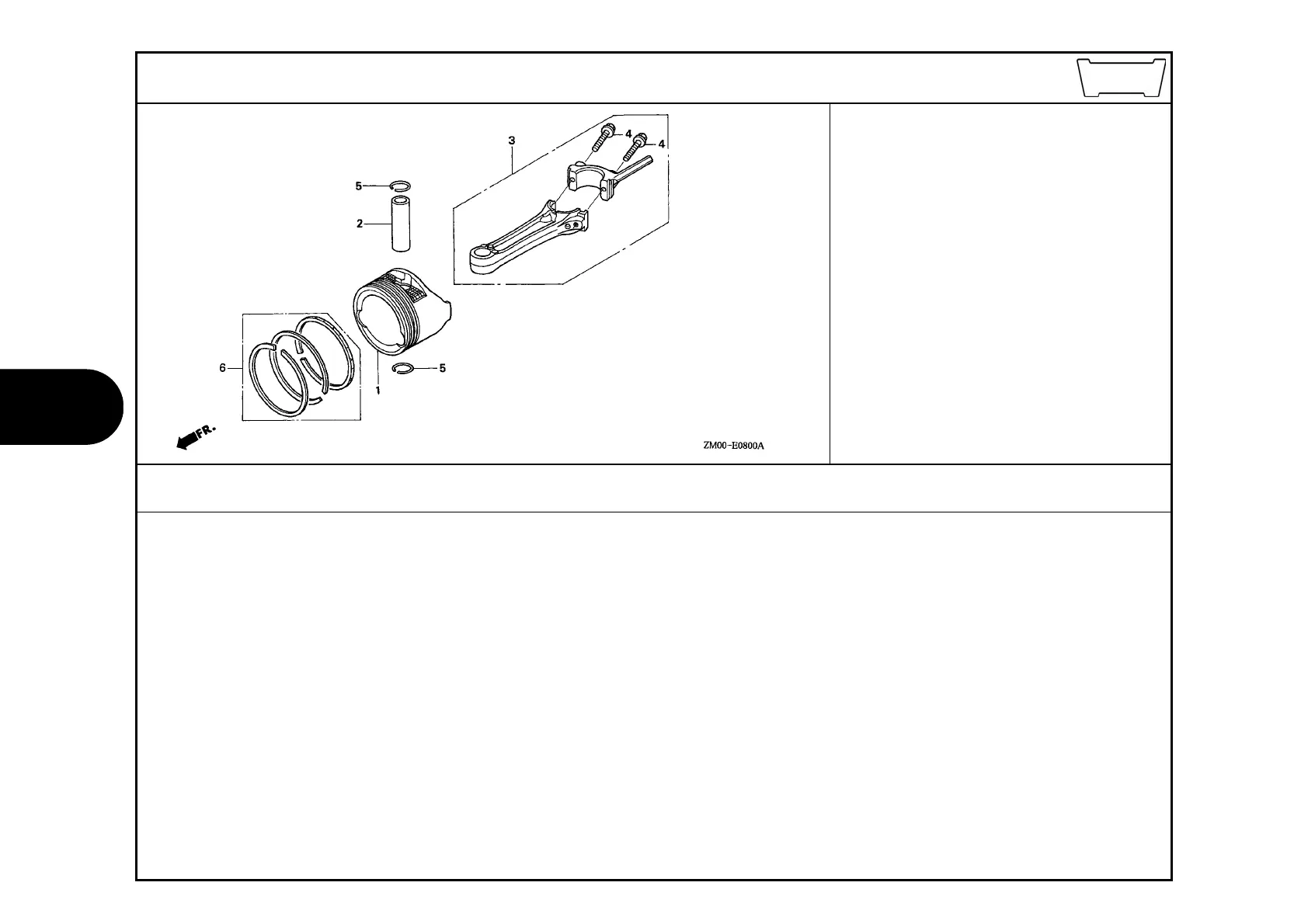

PISTON/CONNECTING ROD
2
(6) 13010-Z0L-014 RING SET, PISTON (STD.)
(TEIKOKU) - 1 - 1 - - - -------- -------- A1AW,A3G9,A3T9,A4G4,A4G7,A4G9,C1E,C1E1,C2E,C2E1
C3E,C3E1,C4E,C4E1,S1G4,S2E2,S2E3,S3E9,S3G9,S4E4
S4E9,S4G4,S4G9
- 1 - - - - - 5383515 -------- A1A,A1AE,A1AF,A1AS,A1C,A1E,A1E7,A1E8,A1M,A1W7,A2A
A2C,A2E7,A2E8,A2E9,A2G7,A2R,A3A,A3E,A7E1,BHH,BHH1
NBL1,N1A,N1AF,N1C,N1E1,N1E7,N1L,N1R,N1U,N1W7,N1W8
N1W9,N2E7,N2E8,N2E9,N2U,N3U,N3V,N5A,N5AF,N5C,N5MF
N5R,N7A1,N7S1,RTL1,STA1,STL1,S1A,S1A1,S1M,S2G7,S3A
S3A2,S3H,S3H2
- 1 - - - - - 8024761 -------- EHHB,E1A2,E1A4,E1G7,E2G7,E5A4,R1A,R3A,R3A1
- - 1 - 1 1 1
- - - 1 - - - 2033979 -------- A1E7,A1E8,A1G7,A1G9,A1P,A1W7,A2A9,A2E7,A2E8,A2E9
A2G4,A2G7,A2G9,A2R,A3E7,A3E9,A3W7,A3W8,A7E1,N1D
N1E1,N1E2,N1E7,N1J1,N1R,N1T8,N1T9,N1W7,N1W8,N1W9
N2E7,N2E8,N2E9,N3T8,N3T9,N3W8,N3W9,N7A1,S1E1,S2E
S2E1
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
GCV GCV GCV GCV GCV GCV GCV
160 160 160 160 160 160 160
A A0 E LE LA LA0
Serial No.
E13

Honda GCV160 Specifications

General

Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Transistorized magneto
Starting System	Recoil Starter
Engine Type	Air-cooled 4-stroke
Displacement	160 cm3 (9.8 cu in)
Bore x Stroke	68 mm x 45 mm
Net Power Output	3.3 kW (4.4 HP) @ 3, 600 rpm
Oil Capacity	0.55 L (0.58 US qt)
Dimensions	335 mm
