Honda GX240 User Manual

28
SERVICING YOUR ENGINE

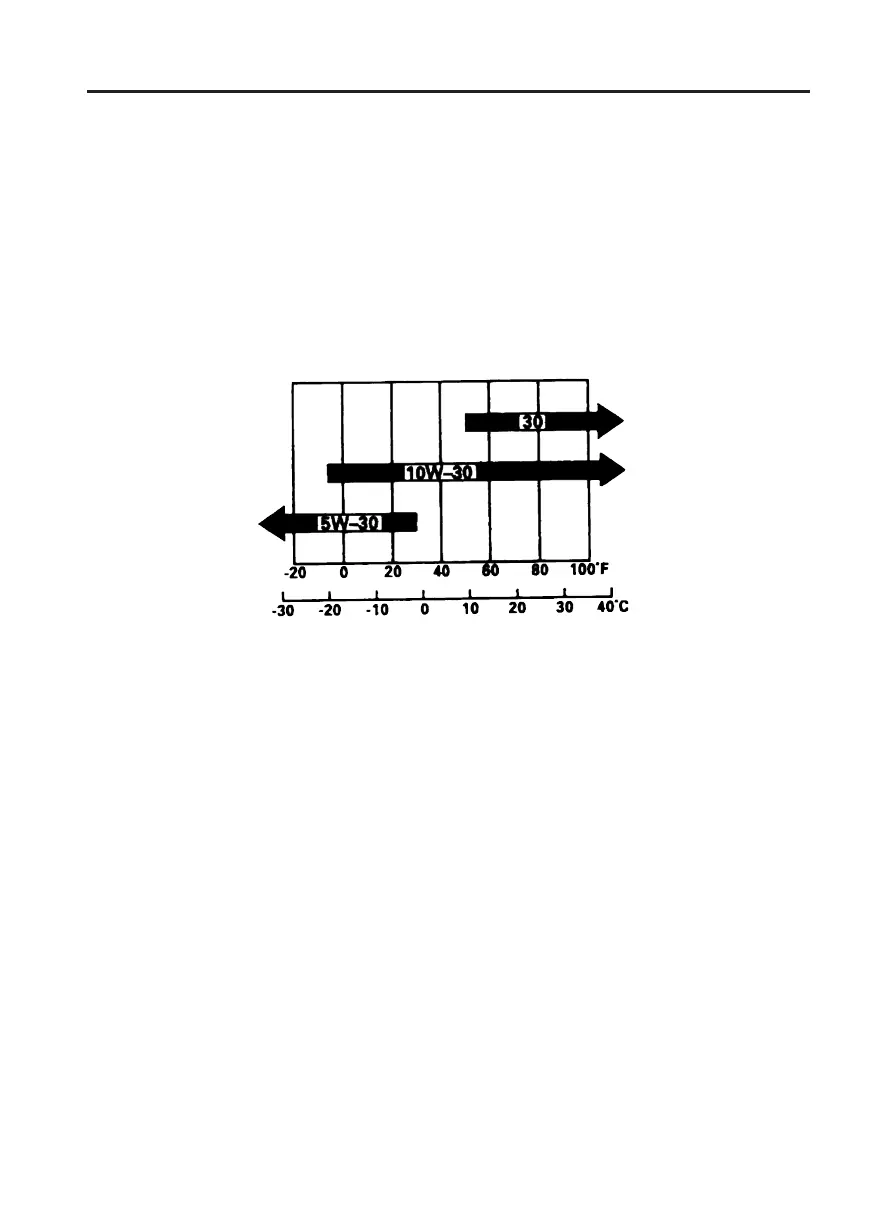

ENGINE OIL RECOMMENDATIONS
AMBIENT TEMPERATURE
SAE Viscosity Grades
Oil is a major factor affecting performance and service life. Use
4-stroke automotive detergent oil.
SAE 10W-30 is recommended for general use. Other viscosities shown
in the chart may be used when the average temperature in your area is
within the recommended range.
The SAE oil viscosity and service classification are in the API label on
the oil container. Honda recommends that you use API SERVICE
categorySJorSLoil.
03/08/21 20:10:36 31ZH9613_029

Honda GX240 Specifications

General

Compression Ratio	8.2:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Fuel System	Carburetor
Lubrication System	Forced splash
Displacement	242 cm³
Net Power Output	3, 600 rpm
Net Torque	2, 500 rpm
Fuel Tank Capacity	5.3 liters
Oil Capacity	1.1 liters
Starting System	Recoil starter
Dry Weight	25 kg (55 lbs)
Bore x Stroke	73.0 x 58.0 mm (2.9 x 2.3 in)
