Honda HRH536 User Manual

4 EN

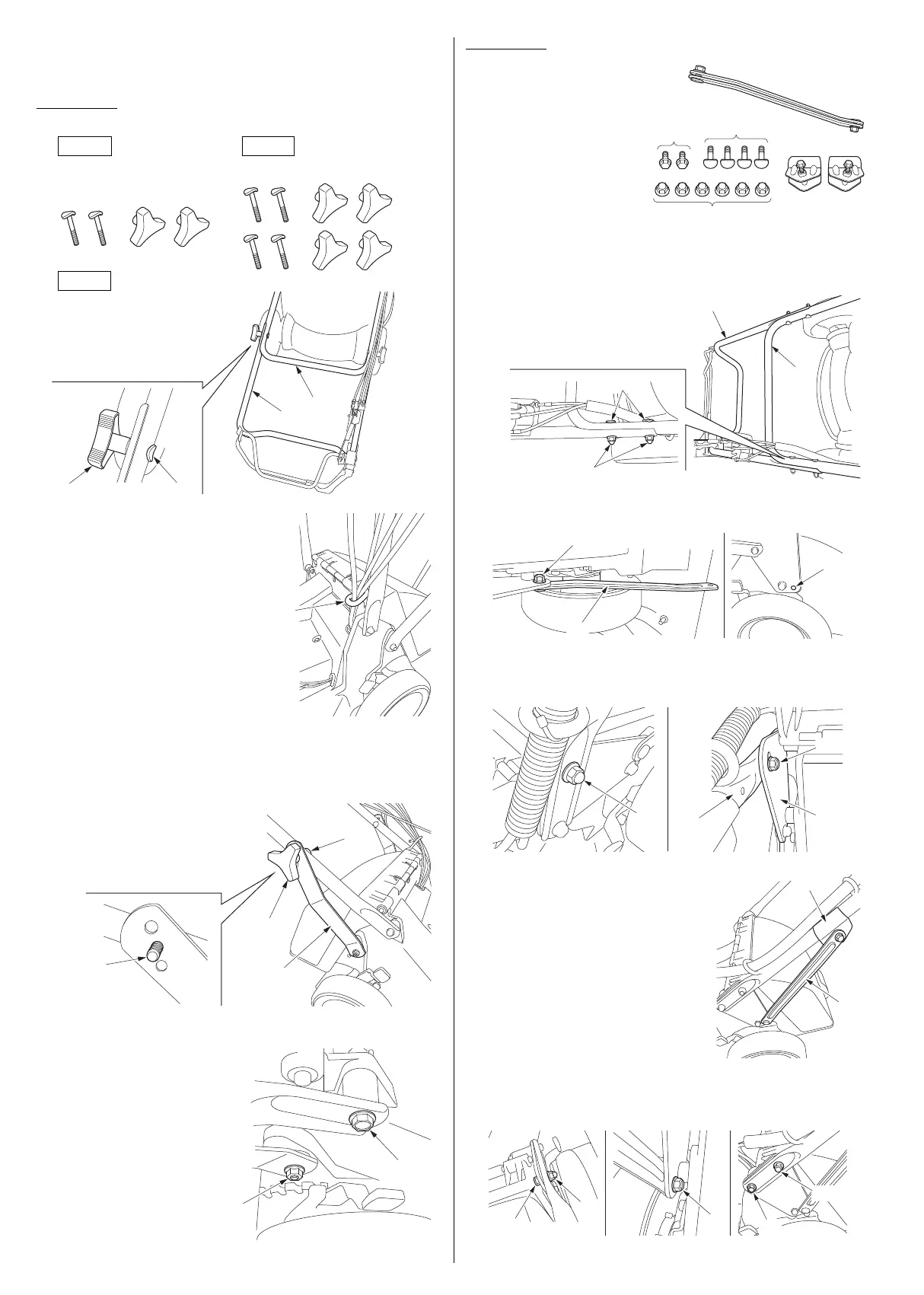

INITIAL SET UP
HANDLE ASSEMBLY METHOD
For HRD536:
1. Parts are included in the box but separate from the machine.
2. Unfold Handle pipe and insert the
cables in the cable guide [5].
3. Screw the bolt [6] and the nut [7] each side of the machine. On
support handle [8] , 3 position are possible. Choose the best one
base on your size.
4. Screw the nut [9] and bolt
[10] firmly.
For HRH536:
1. Parts are included in the
box but separate from the
machine.
[11] : 2 support with 2 bolts
[12] : 4 bolts
[13] : 2 bolts
[14] : 6 nuts
[15] : 2 collar with 2 bolts
2. Fix together Upper handle [16] and lower handle [17] with 2 bolts
[12] and 2 nuts [14] each side. Be careful with cable to pass
them under lower handle same as on the illustration.
3. Fix support [11] on the machine (insert welded screw in hole [a] )
wi
th nut [b] installed on support . Screw it just by hand, each side.
4. Screw bolt [13] with nut [14] to connect lower handle pipe [17]
and handle stay [18] . Each side of the machine. Fix just by
hand. Be careful not to pinch cable.
5. After removing the bolt on the collar
[15] put it over the handle pipe as
showed on the illustration each side
of the machine, fix together support
[11] and collar [15] each side of the
machine with the bolt.
Position of the collar [15] will affect
end handle height depending on
your size. Fix it firmly.
6. Fix firmly the bolt [13] and nut [14] .
Fix firmly nut [b] of support [11] and bolt [19] .
Repeat the operation of the opposite side of the machine.
HXEH QXEH
2 bolts, 2 nuts. 4 bolts, 4 nuts.
[1]
[3][4]
[2]
QXEH
Fix together Upper
handle [1] and lower
handle [2] with 1 bolt [3]
and 1 nut [4] each side.
[5]
[6]
[6]
[7]
[8]
[9]
[10]
[11]
[13]
[12]
[15]
[14]
[14]
[12]
[16]
[17]
[a]
[b]
[11]
[14]
[17]
[13]
[18]
[11]
[15]
[14]
[14]
[19]
[b]
[13]
3RVF16220.book Page 4 Thursday, April 11, 2019 5:39 PM

Honda HRH536 Specifications

General

Engine	Honda GXV160
Cutting Width	53 cm
Cutting Height Range	14-52 mm
Drive	Self-propelled
Starter	Recoil
Cutting Height Adjustment	Single lever
Displacement	163 cm³
Fuel Tank Capacity	1.5 liters
Wheel Size	200 mm
Deck Material	Aluminum
Engine Type	4-stroke, OHV
Cutting Heights	7 positions
