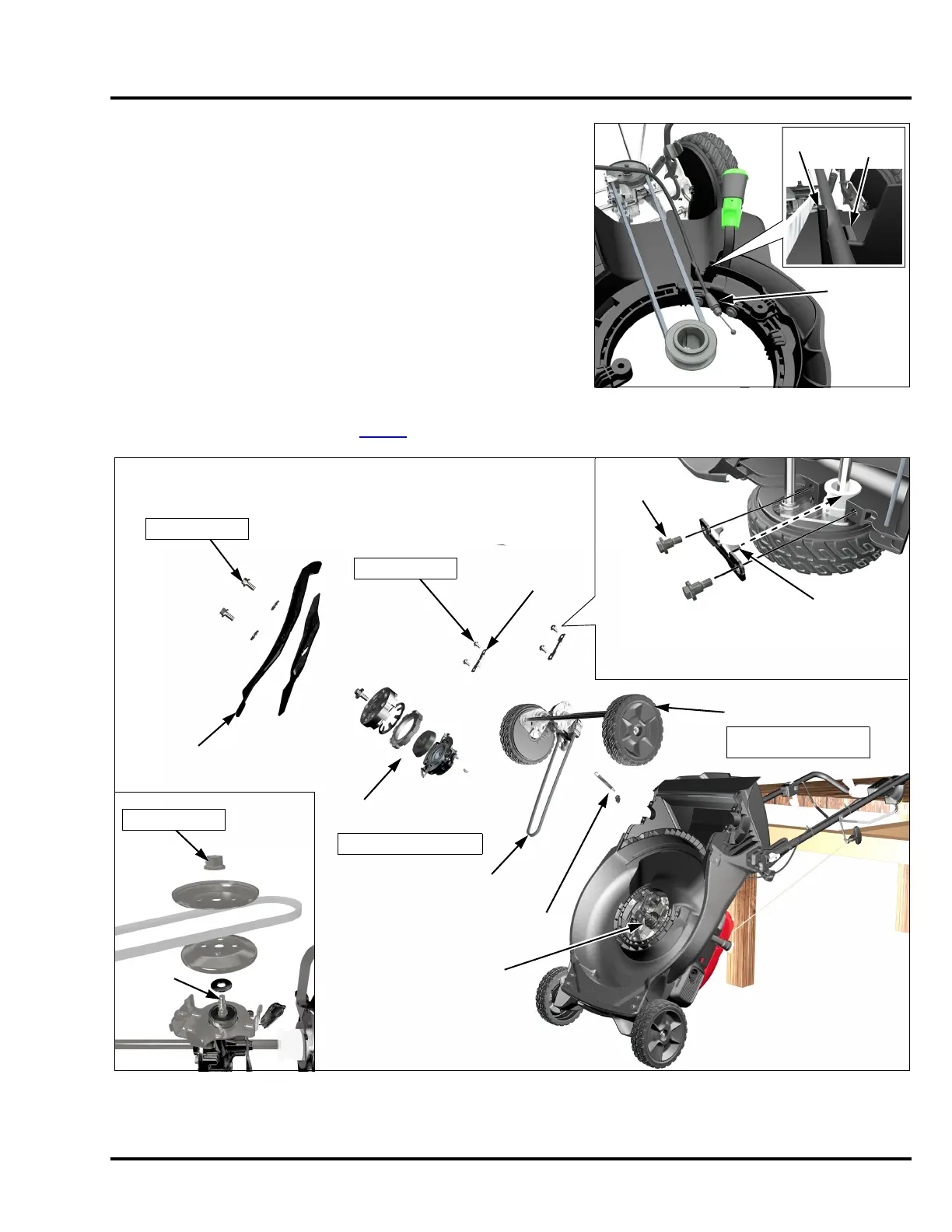

13-7
HRN216 TRANSMISSION/DRIVE BELT
INSTALLATION
Installation is done in the reverse order of removal. Pay attention to
the following:
• Be sure to install the 10 mm special hardened washer on the
transmission input shaft before assembling the driven pulley.
• Align the holes in the pulley halves when reassembling the pulley.
• Be sure the belt is straight and not twisted during reassembly.
• Check that the rib guide on the top of the scroll is between the belt
and the Roto-Stop cable, as shown.
• Ensure the Woodruff key is properly installed in the crankshaft
and does not fall out when installing the Roto-Stop brake assy.
• Make sure the axle holders are installed in the correct direction
with the triangle tabs facing inward.
• Readjust the Smart Drive cable (P. 3-10
).
RIB
Do not install
belt in this
area.
ROTO-STOP
CABLE (VYA)
DRIVE BELT
DRIVE
PULLEY
16 x 15 mm
WOODRUFF KEY
INPUT
SHAFT
10 mm FLANGE NUT
6 x 16 mm
FLANGE BOLT (4)
AXLE HOLDER TABS
TRANSMISSION/AXLE
ASSEMBLY
BLADES
ROTO-STOP
BRAKE ASSEMBLY
27 N•m (20 ft-lb)
The triangle tabs should face
inward and contact the
driveshaft bushing lip farthest
away from the wheel.
6x16 mm
FLANGE BOLT
AXLE
HOLDER (2)
14 N•m (10 ft-lb)
BLADE BOLTS/
WASHERS
54 N•m (40 ft-lb)
DISASSEMBLY/
REASSEMBLY: P. 3-10
TRANSMISSION
SPRING/BRACKET
INSTALLATION: P. 3-10
To Next Page
