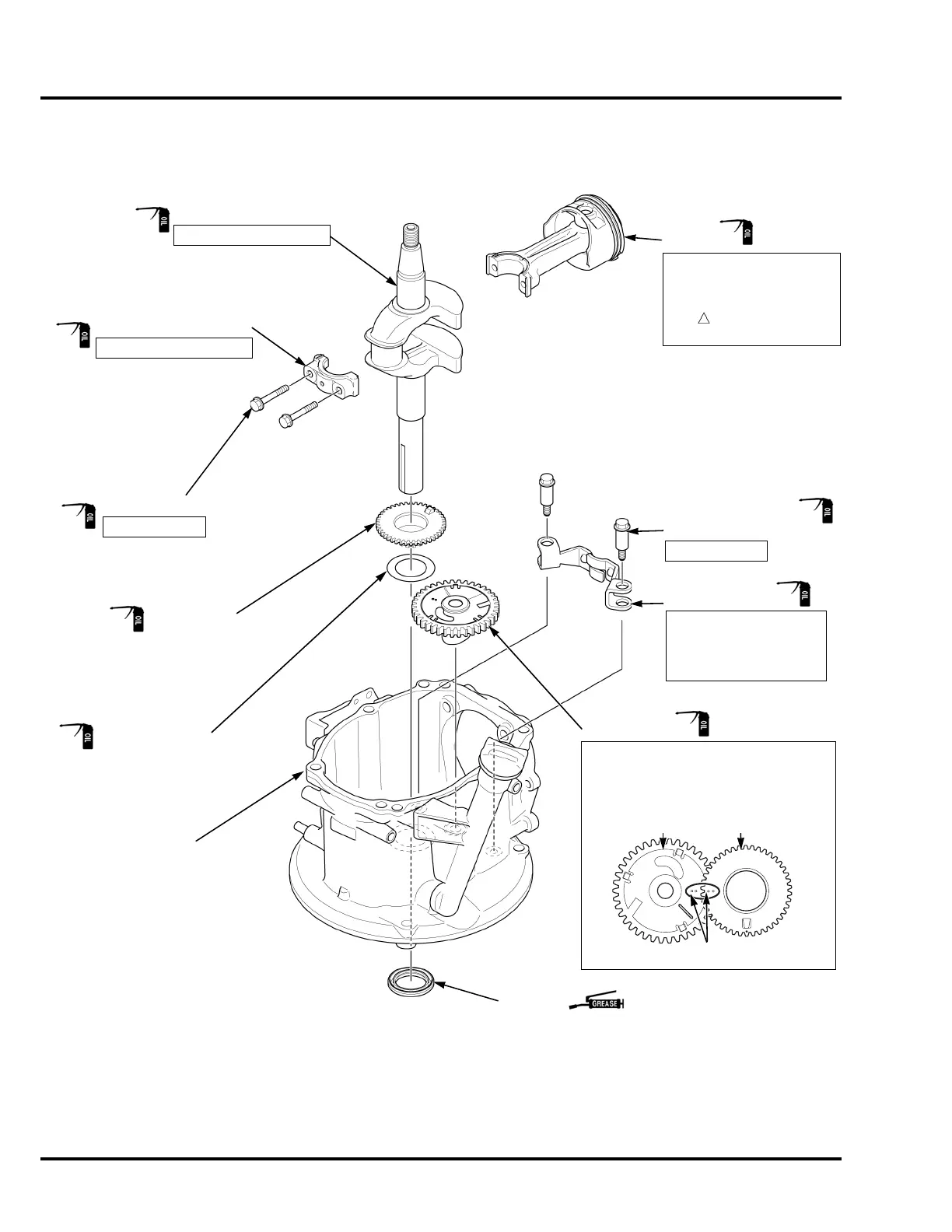

5. CRANKSHAFT/CAMSHAFT/PISTON REMOVAL/INSTALLATION
OIL SEAL
CAMSHAFT
CRANKSHAFT
CONNECTING ROD CAP
CONNECTING ROD BOLT (2)
12 N•m (9 ft-lb)
TIMING GEAR
THRUST WASHER
PISTON
INSPECTION:
Install the piston through the
crankcase so that the
“FW ” mark points toward
the flywheel side.
10 N•m (7 ft-lb)
VALVE LIFTER (2)
VALVE LIFTER BOLT (2)
CRANKCASE
INSTALLATION: P. 10-8
Install the timing gear [1] and camshaft [2]
by aligning the two sets of dots [3].
[1]
[2]
[3]
INSTALLATION: P. 1 0 -1 9
INSTALLATION:
If reusing the valve lifters,
reinstall in their original
locations.
INSTALLATION: P. 10-19
