VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRN216
6. Slide the two 6 x 7 mm special nuts out of the front
cover.

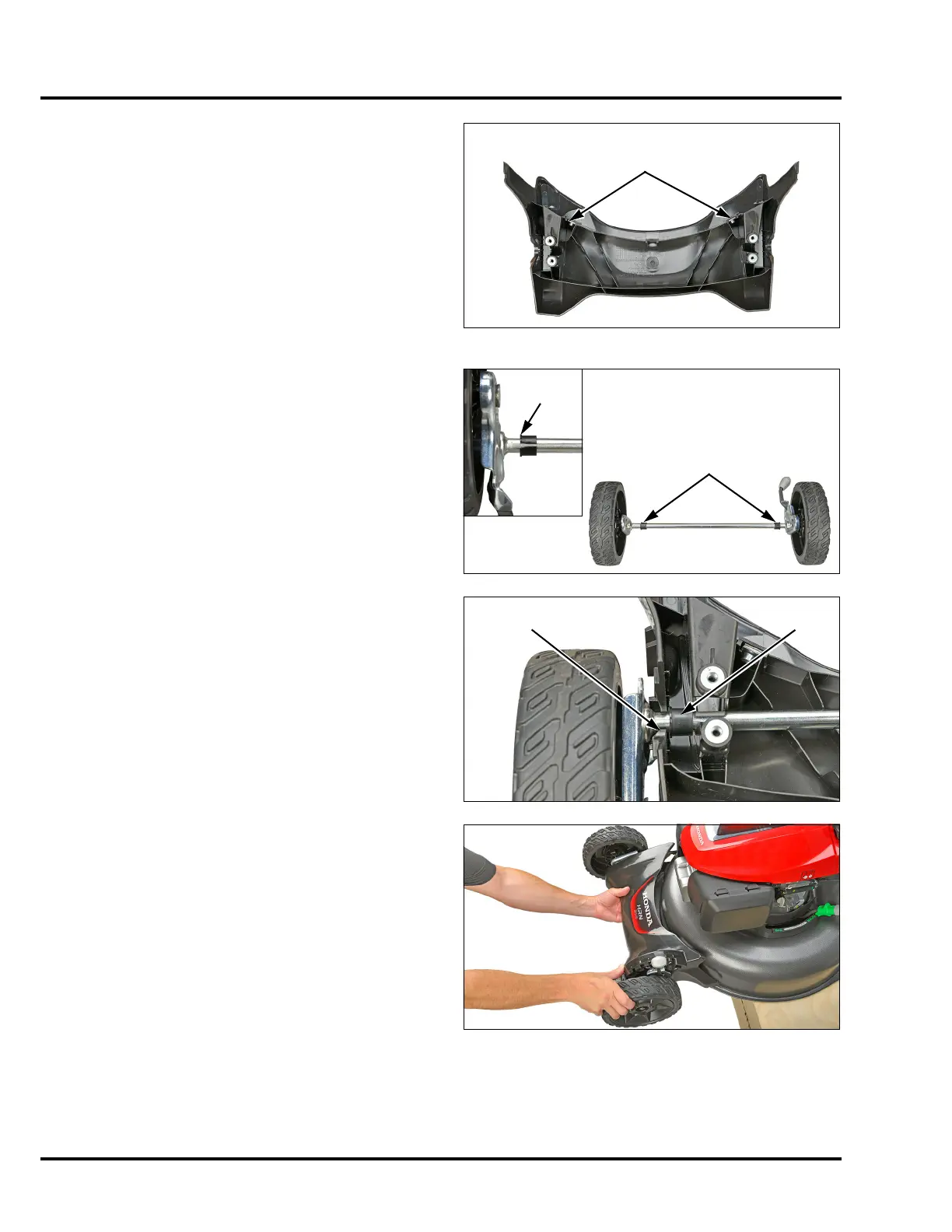

INSTALLATION
1. Apply grease inside the plastic sleeves, and then install
the plastic sleeves over the front axle assembly so that
the retaining lip side of the sleeves face the wheels.
2. Place the front axle assembly into the front cover,
ensuring the plastic sleeves fit in between the covers
walls and not in the axle holders. Ensure the axle
snaps into both locking tabs in the front cover.
3. Place the front cover and front axle onto the mower
deck until it sits flush against the deck all the way
around.
PLASTIC SLEEVE (2)
RETAINING
LIP
PLASTIC
SLEEVE
LOCKING
TABS
