12-12
VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRN216

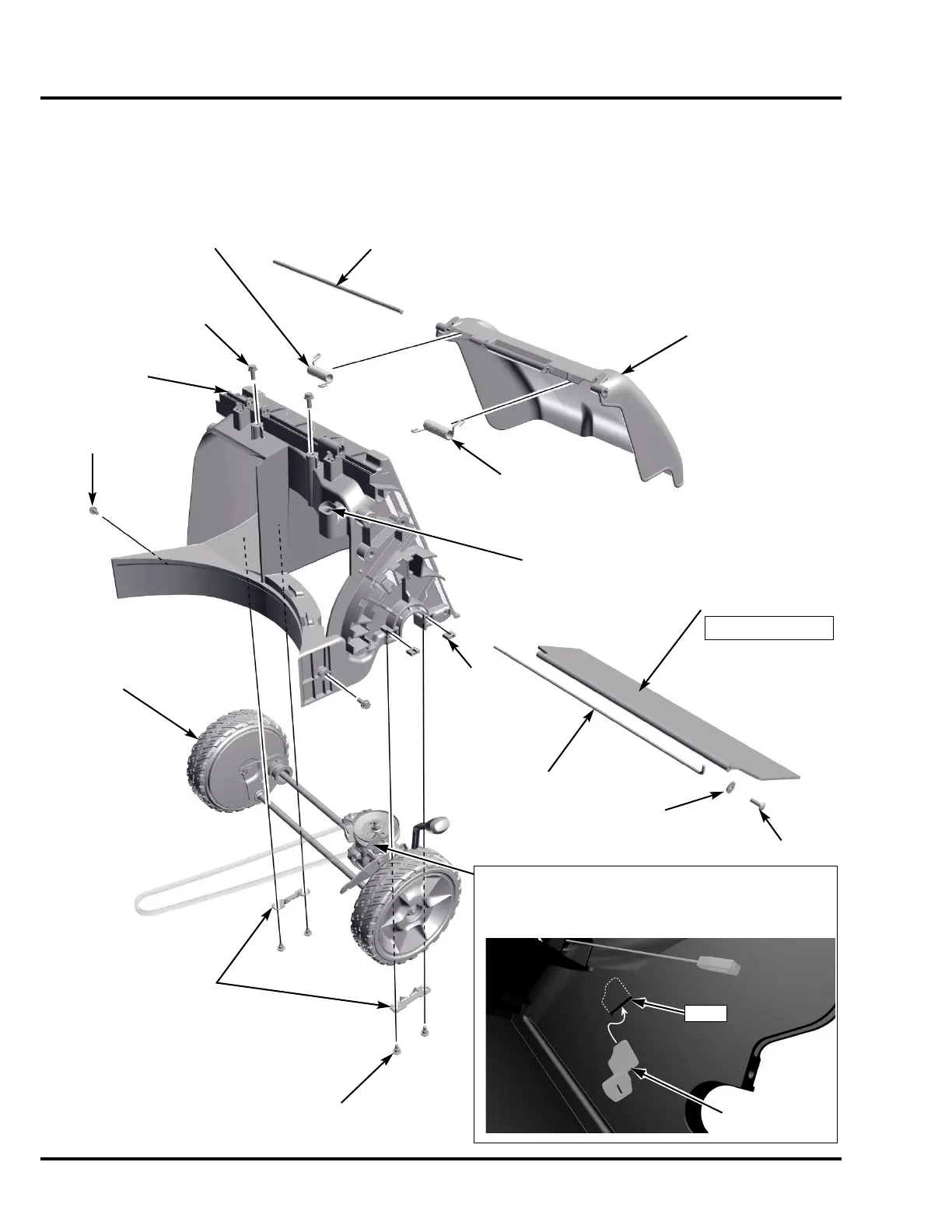

4. REAR HOUSING
PARTS IDENTIFICATION
SCREW
REAR SHIELD
REMOVAL: P. 12-17
DISCHARGE
GUARD
SHAFT
SPECIAL
NUT (4)
REAR
HOUSING
ASSEMBLY
DISCHARGE
GUARD
DISCHARGE GUARD
RETURN SPRING (R)
DISCHARGE
GUARD
RETURN
SPRING (L)
6 mm SHOULDER BOLT (4)
PLAIN
WASHER
REAR SHIELD
SHAFT
AXLE BRACKETS (2)
TRANSMISSION/AXLE
SHAFT ASSEMBLY
(VKA/VLA/VYA type shown)
6 x 12 mm
FLANGE
BOLT (2)
6 x 12 mm
FLANGE
BOLT (2)
SMART DRIVE
CABLE HOLDER
(VKA/VLA/VYA types)
TRANSMISSION RETURN SPRING BRACKET
The spring bracket is Z-shaped and fits into a slot in the rear
housing. The bracket can fall out of the slot when no spring
tension exists. Be sure the spring bracket is properly in the rear
housing slot when reinstalling the transmission return spring.
SPRING
BRACKET
SLOT
SERVICE BULLETIN #110
