12-18
VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRN216
INSTALLATION

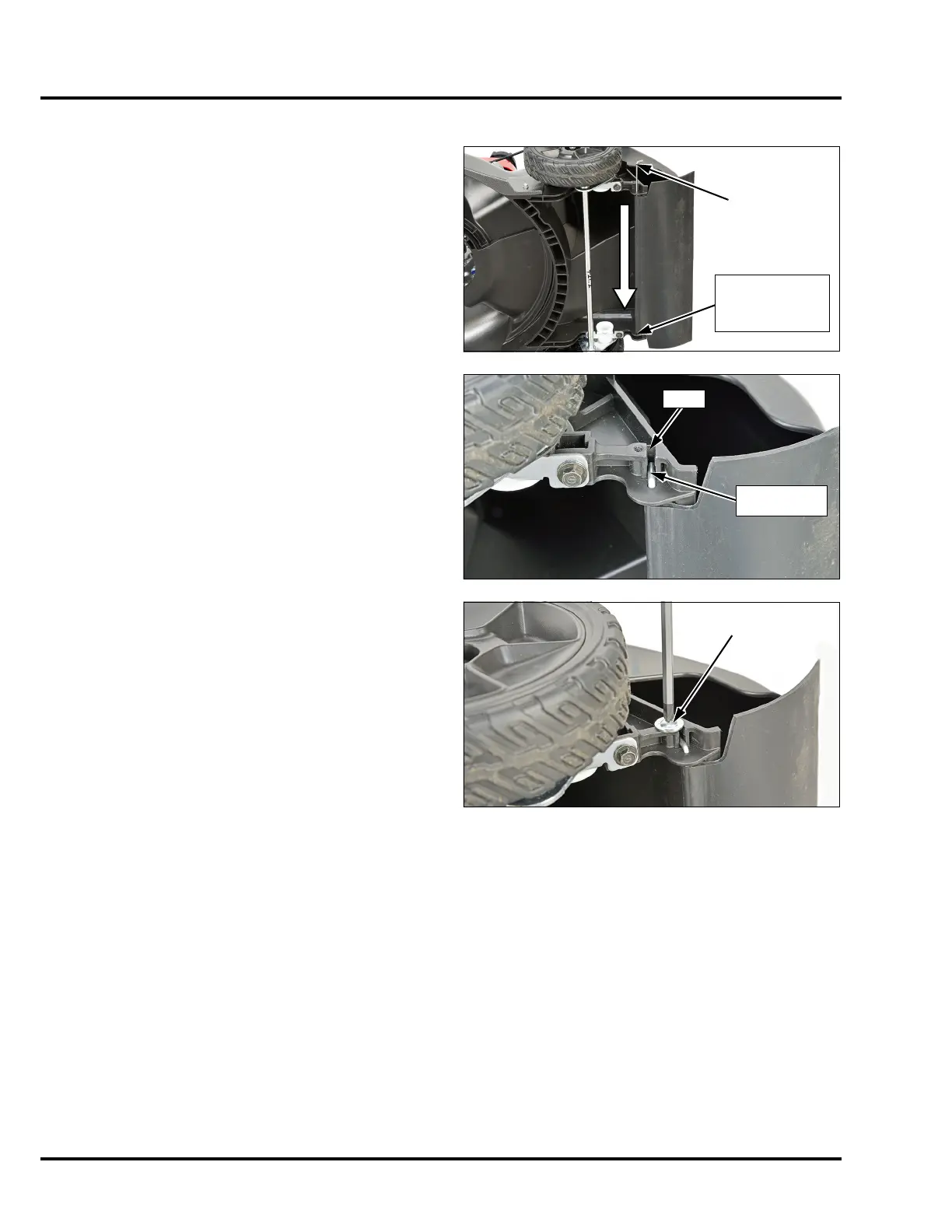

1. Hold the rear shield in place, and then slide the shaft
through the left-hand side of the rear housing, through
the rear shield, and then into the right-hand side of rear
housing.
2. Insert the bent end of the shaft into the slot in the
left-hand side of the rear housing until it is full seated.
3. Install the Phillips-head screw and plain washer into the
rear housing.
REAR SHIELD
SHAFT
Be sure the shaft
is inserted into
the hole in the
rear housing.
