6 Mounting and Connection Instructions - Door module RS485
! Outputs: 2 Relays Contact rating: 3 A/24 V DC (e.g. door relay, alarm relay, tamper relay)
1 semiconductor output (active 0 V, max. 15 V DC, 12 mA)
The number of the applicable inputs/outputs decreases if two doors are operated via the door module,
(See chapter 10. Connections).
1.2 Configuration
The door module in conjunction with the ACS-8 controls the access to a room. The use of an additional interior
reader makes it possible to control also the exit of a room. The readers must function according to the same
reading technology (magnetic card reader, contactless reader or chip card reader).
The door module recognizes by means of the door monitoring contact in the door strike whether the door was
open too long or the door was opened by force.

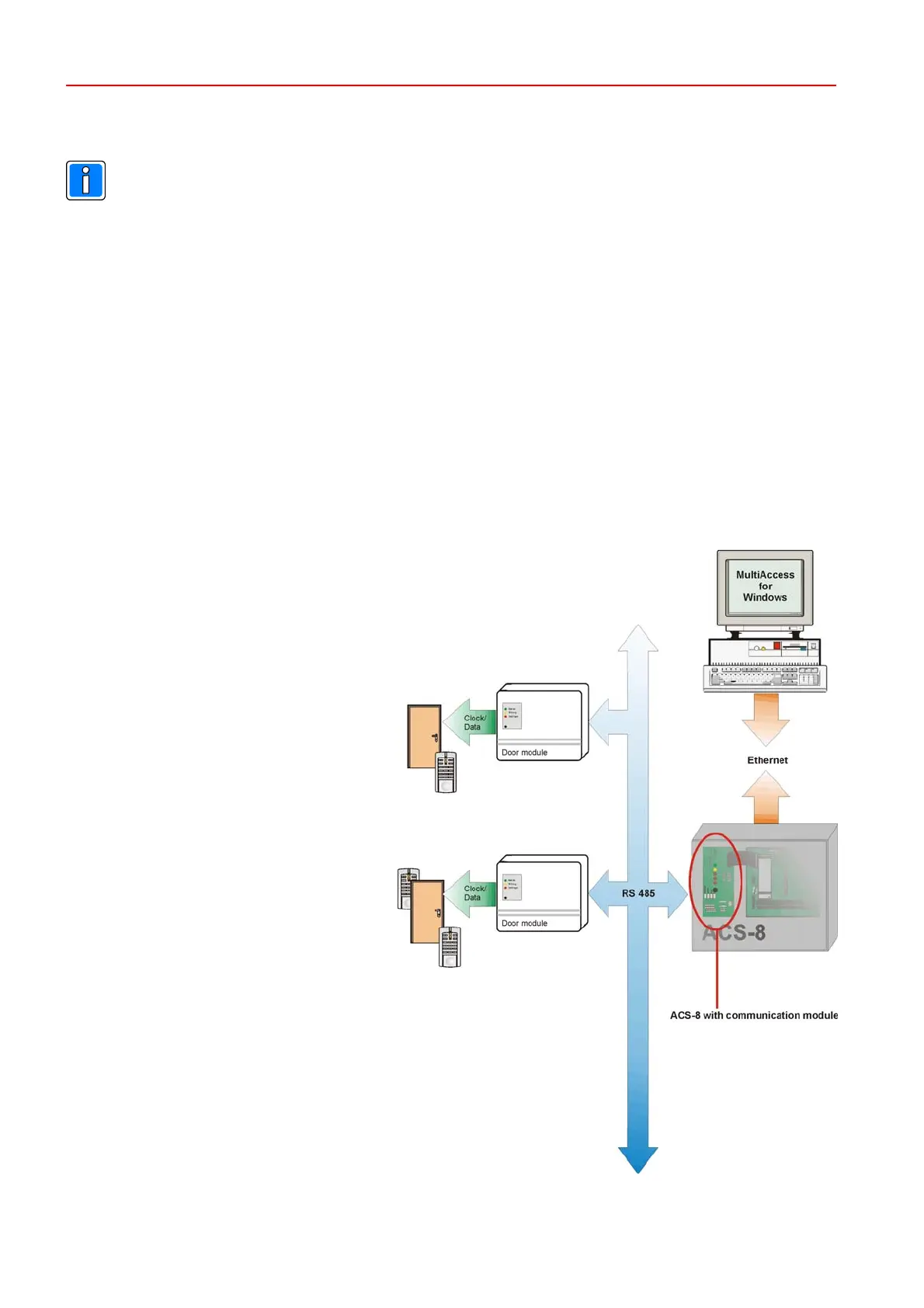

1.2.1 Example MultiAccess for Windows
With MultiAccess for Windows the door module can administrate one door.
Configuration example 1:
Just the access to a room is controlled
via one reader. It is possible to exit the
room without identification.
A door release push-button in the
secured zone makes it possible to
release the door lock manually.
Configuration example 2:
Room access and exit are controlled
by two readers. The "antipassback"
option can be activated. Thus, the
present location of each person can
be identified.
