Mounting and Connection Instructions - Door module RS485 7

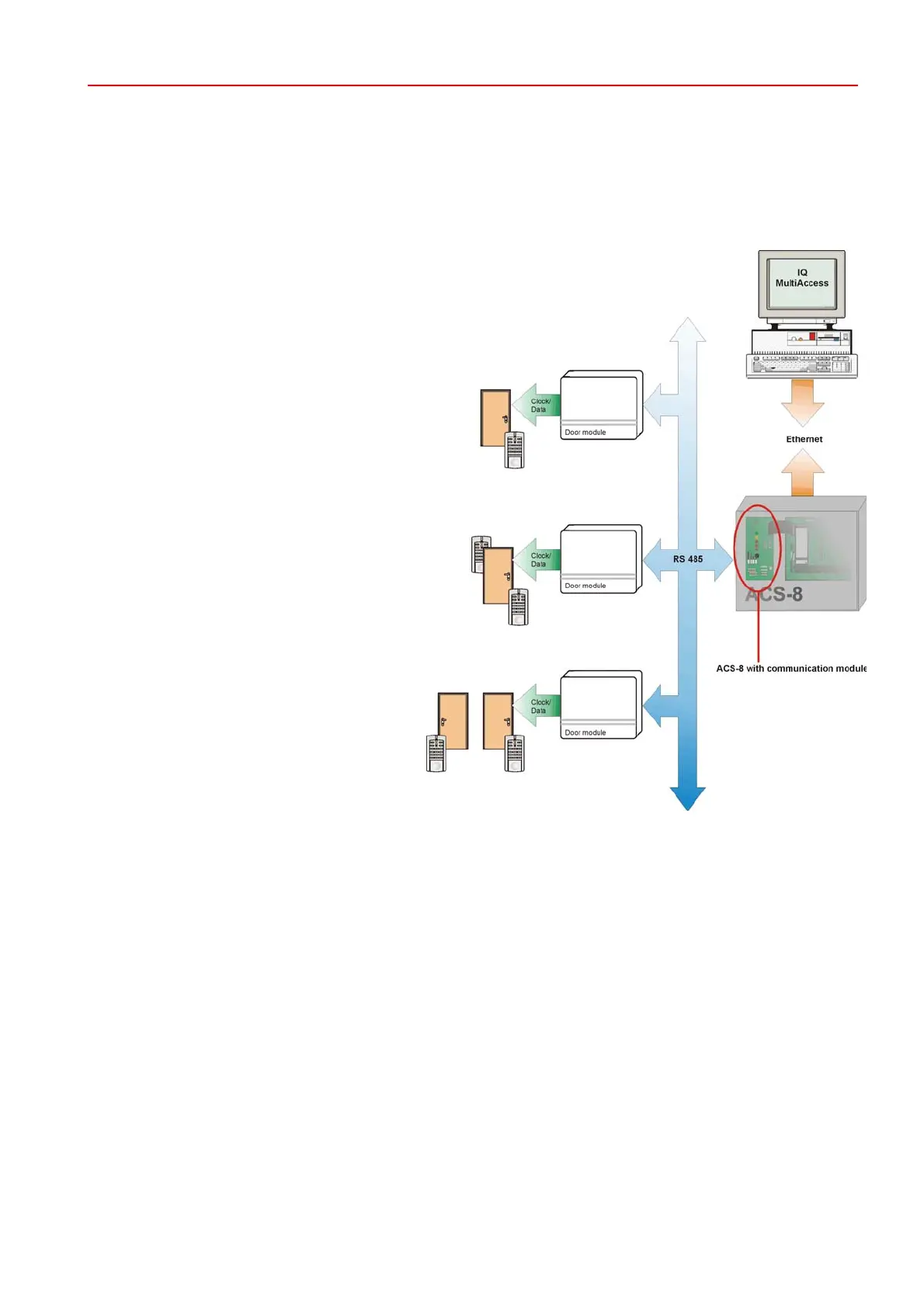

1.2.2 Example IQ MultiAccess
With IQ MultiAccess the door module can administrate two doors.
Configuration example 1:
Just the access to a room is controlled via
one reader. It is possible to exit the room
without identification.
A door release push-button in the secured
zone makes it possible to release the door
lock manually.
Configuration example 2:
Room access and exit are controlled by
two readers. The "antipassback" option
can be activated. Thus, the present
location of each person can be identified.
Configuration example 3:
a) Just the access to two rooms is
controlled via a reader each.
It is possible to exit the room
without identification.
b) A room with tow doors:
The access to the room is only
possible via door no. 1. The exit
is only possible via door no. 2.
Thus, the exit is also controlled.
