8.3

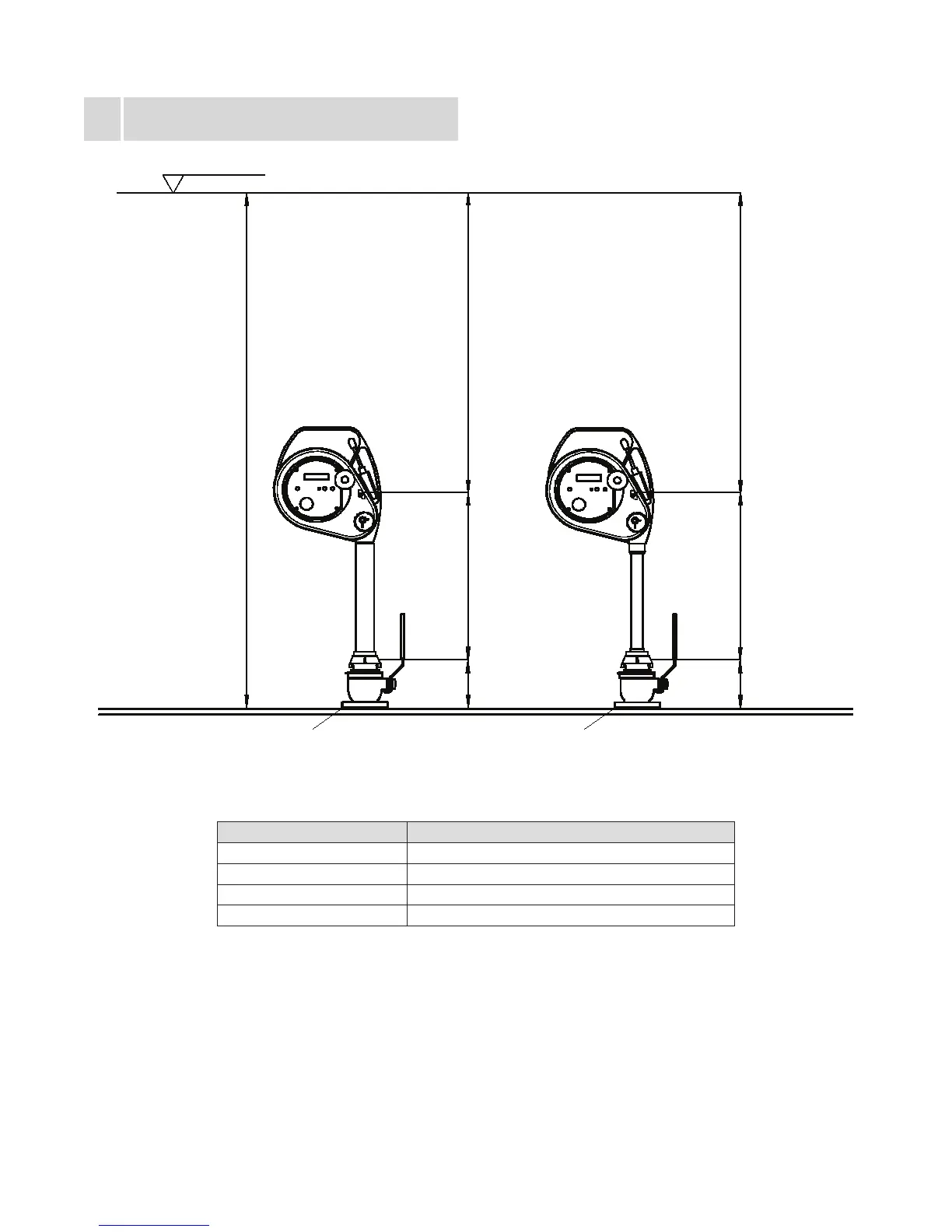

Example of installation on the deck,
connector Q2
Tank Zero Ullage level
HX
474 mm
HV
SS1 Q2SS2 Q2
Reading
index
Flange
Tank Deck
HX
474 mm
HV
Reading
index
Flange
Figure 8-3
Valve designation C.2-SS; C.2-SS-W; C.2-SS-BL; C.2-SS-SEC
Bottom connection thread or ange
Boring 2”
*) HV (mm)
141
*) HX (mm) H-615
*) Dimension HV is without gasket. If gaskets are used dimension HX is reduced by thickness of gasket.
H
