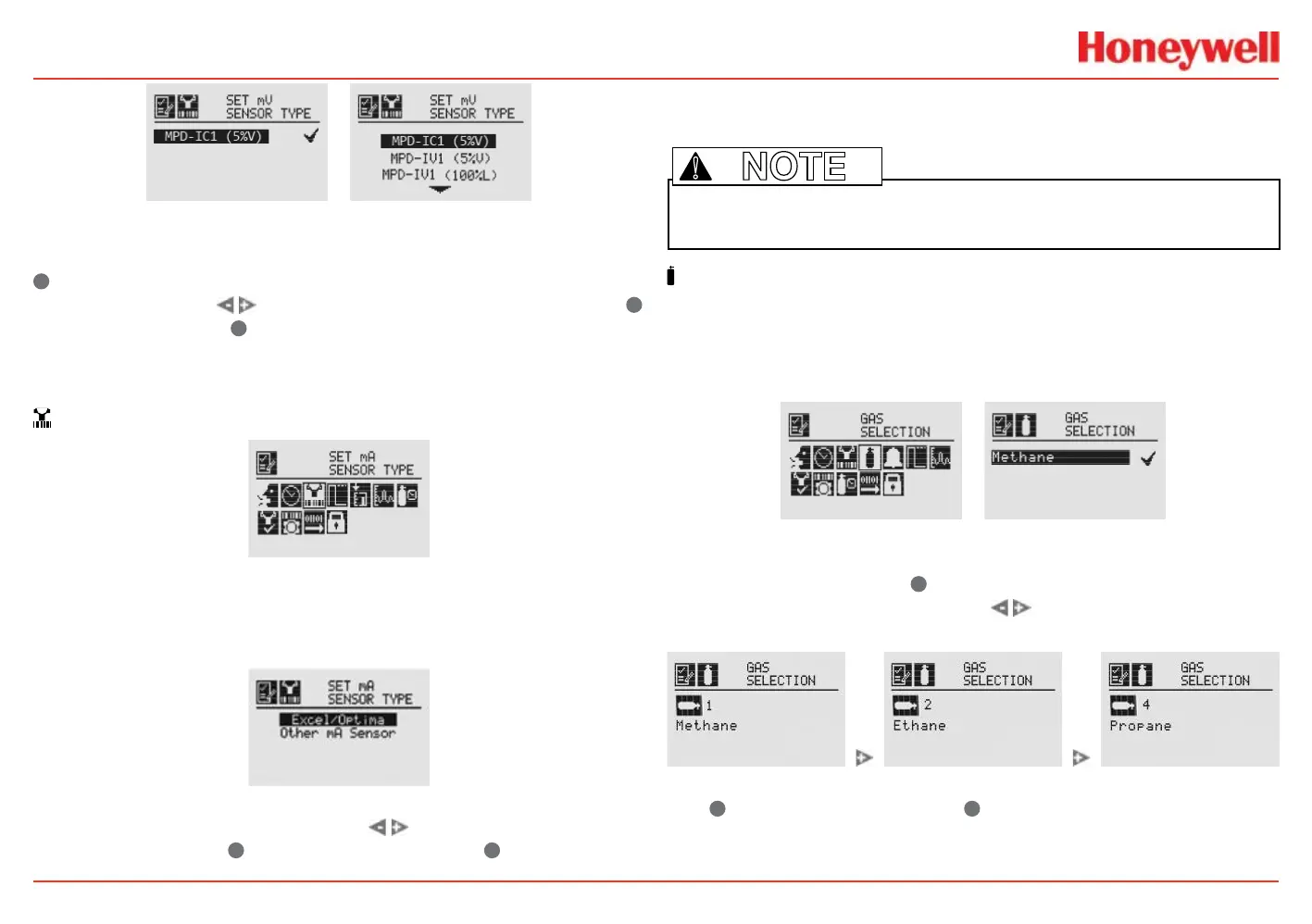

Figure 74. Current congured mV sensor and mV Available Sensor list
The rst screen displays the currently congured sensor. Select
✓
to navigate to the Sensor Selection screen. To select a new
mV sensor, use the
switches to scroll through the list. Use
✓
to select a sensor or
✖
to discard the sensor selection, retaining
the previously selected sensor, and return to the previous menu.
Set mA Sensor Type
Figure 75. Set mA Sensor Type screen
Set mA Sensor Type identies the type of mA sensor attached
to the transmitter. The available mA sensor choices are “Excel/
Optima” and “Other mA Sensor.”
Figure 76. mA Available Sensor list
To select a new mA sensor, use the switches to move
through the list. Use
✓
to make the selection or
✖
to discard the
selection, retain the previously selected sensor, and return to the
previous menu.
Note: This configuration option is not available for XNX transmitters with EC sensors.
NOTE
!
Gas Selection
Gas Selection sets the target gas for sensors capable of
detecting multiple gases. The available gases for each of the
capable sensors is determined by the device connected to the
transmitter.
Figure 77. Gas Selection menu
After selecting Gas Selection, the initial screen displays the
current target gas. Select
✓
to display the list of available gases
for the congured sensor. Use the
switches to scroll through
the list. A sample of the list is shown in Figures 80 and 81.
Figure 78. Available Target Gas list
Use
✓
to select the new gas or
✖
to discard the selection, retain
the previously selected gas, and return to the previous menu.
When a new gas is selected, these screens are displayed:
