XNX Universal Transmitter

Installation and Operation

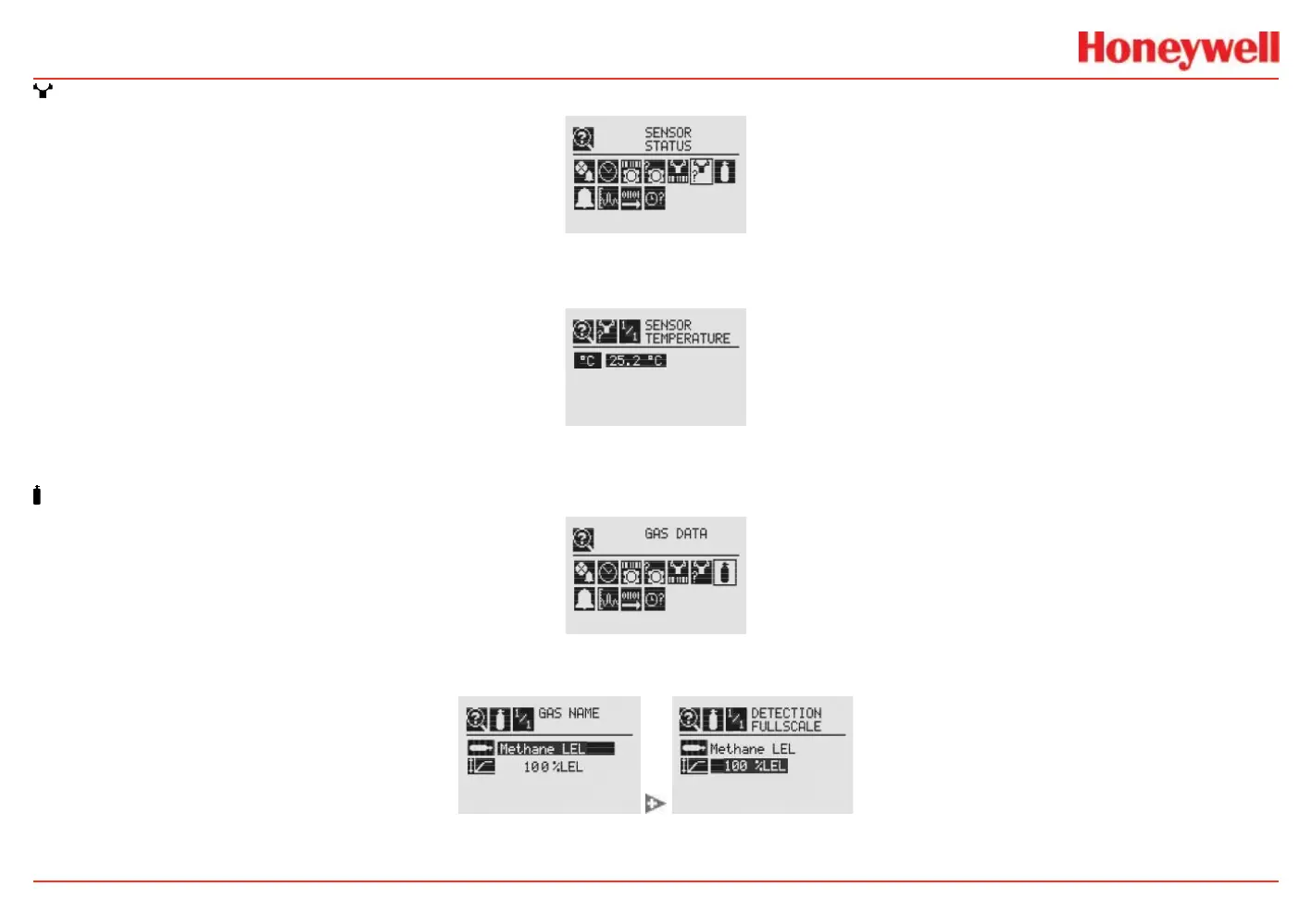

Sensor Status

Figure 172. Sensor Status screen

Sensor Status displays the temperature of the sensor attached to the transmitter. When equipped with an EC or mV sensor, sensor

life is also displayed.

Figure 173. Sensor Temperature screen

Gas Data

Figure 174. Gas Settings screen

Gas Data displays the current detectable gas as congured for the attached sensor.

Figure 175. Gas Abbreviation and Full Scale screens
