XNX Universal Transmitter
Installation and Operation
92

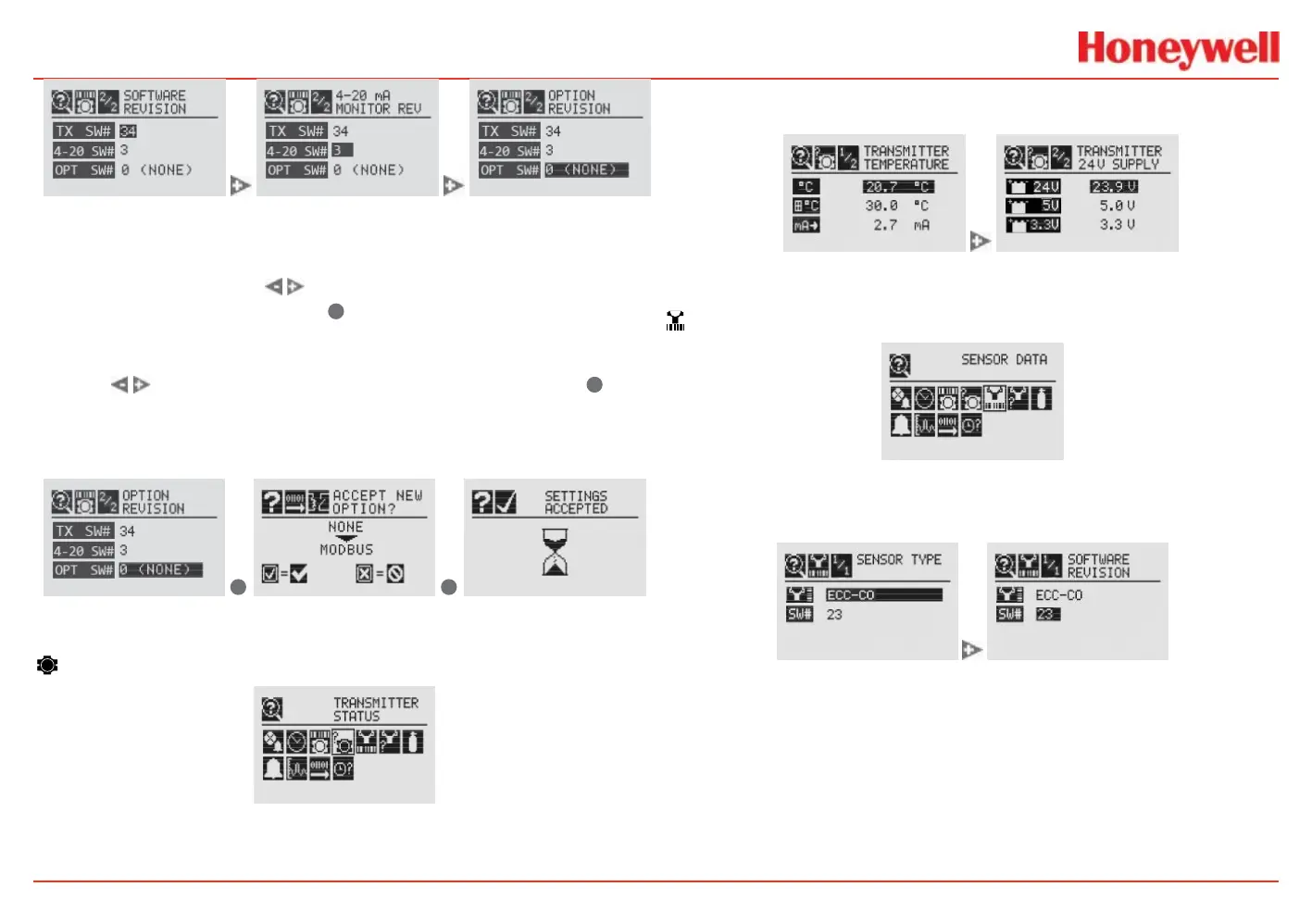

Figure 166. Transmitter Software, 4-20 Monitor and Option Version screens
Transmitter Data is also used to update the conguration of the
transmitter when an option board is added or changed. To add
the new option, use the
switches to navigate to the Option
Revision screen, then swipe the
✓
magnetic switch on the front
panel to display the Accept New Option Screen. The screen will
show the current option (if any) and the newly installed option.
Use the
switches to highlight the option then swipe the
✓
magnetic switch on the front panel to accept the change. The
transmitter will update the part number of the unit. The new
option will then be operational.
✓
✖
Figure 167. Updating the Transmitter for Option Boards Added or Changed screens
Transmitter Status
Figure 168. Transmitter Status screen
Transmitter Status displays information about the transmitter
including temperature, 4-20 mA output value, and supply
voltage.
Figure 169. Transmitter Temperature and Supply Voltage screens
Sensor Data
Figure 170. Sensor Data screen
Sensor Data displays information about the transmitter including
sensor type and sensor software revision.
Figure 171. Sensor Type and Software screens
