XNX Universal Transmitter

Installation and Operation

Range/Alarm Settings

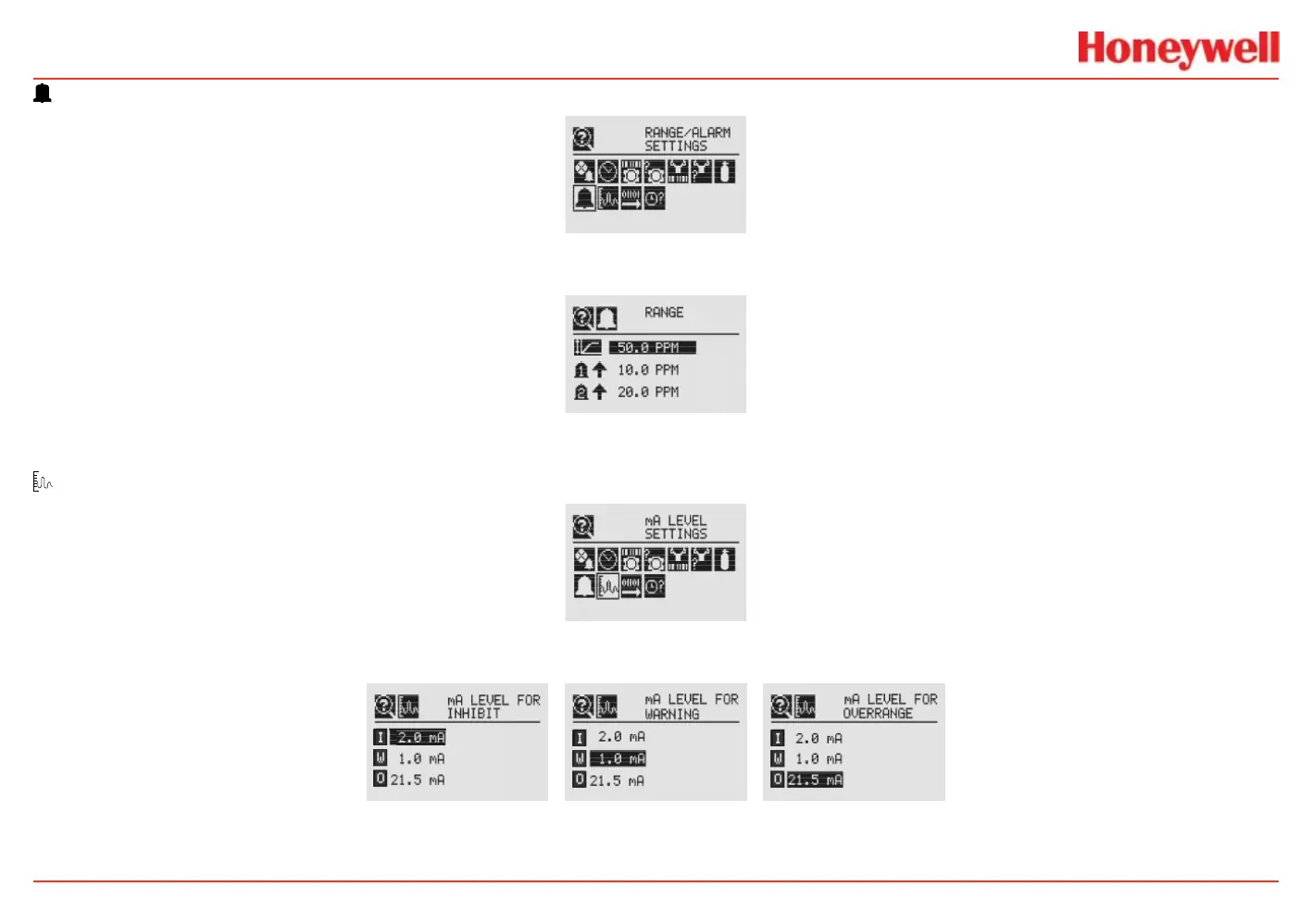

Figure 176. Range/Alarm Settings screen

Range/Alarm Settings displays the currently congured alarm information.

Figure 177. Alarm Display Rang screen

mA Level Settings

Figure 178. mA Level Settings screen

The mA Level Settings section shows the current values for mA output for Inhibit, Warning, and Overrange output.

Figure 179. mA Output Inhibit, Warning and Overrange screens.
