sending normal idle signals. After a period of time called Tw (time to wake), the link becomes
active and begins passing traffic. Ts and Tw are negotiated between the link partners using LLDP.
To display the EEE page, click LLDP > EEE in the navigation pane. EEE activated columns show if
the switch and the link partner have agreed upon which wakeup times to use.

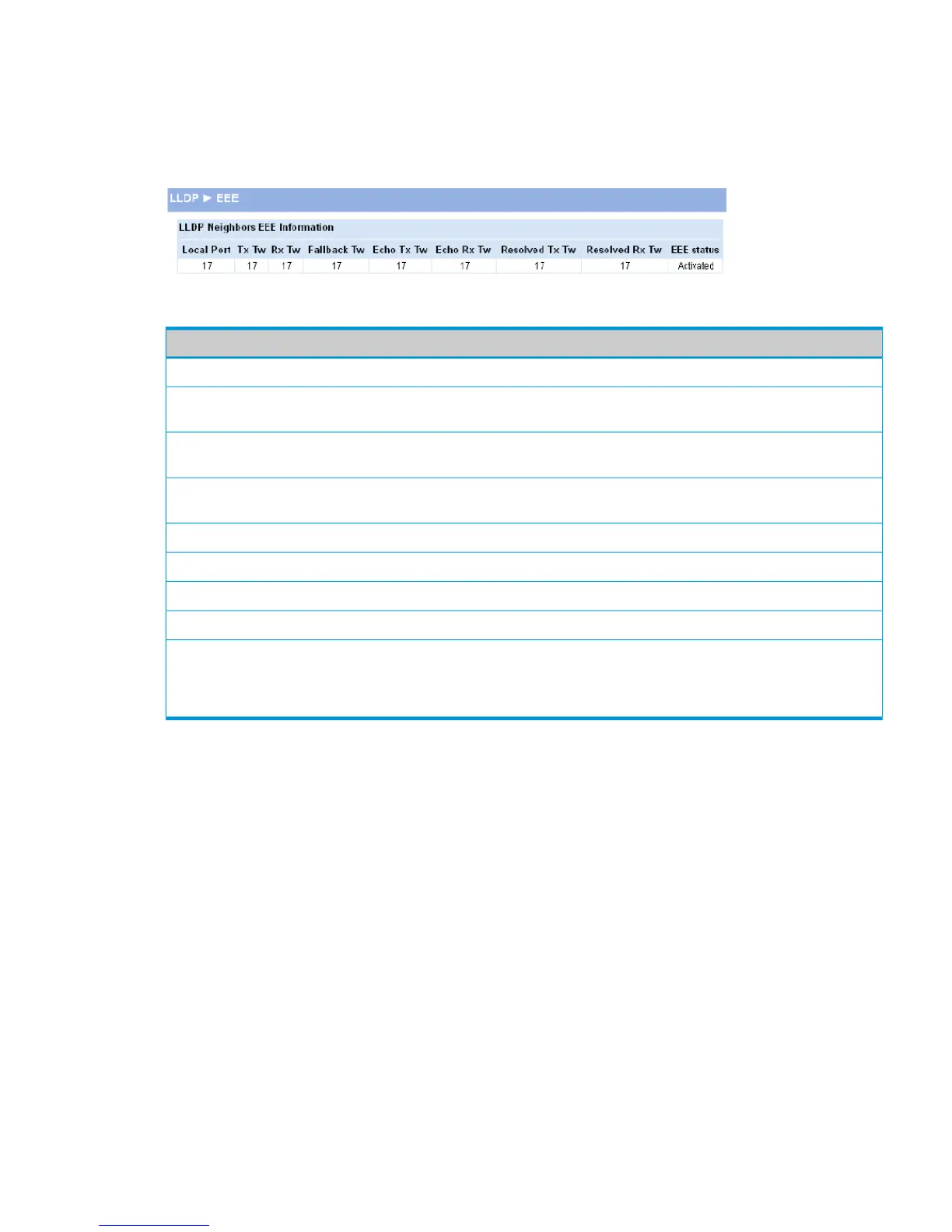

Figure 39 LLDP Neighbors EEE Information Page
Table 32 LLDP Neighbors EEE Information Fields
DescriptionField
The port on which LLDP frames are received or transmitted.Local Port
The time in microseconds that the transmitting link partner waits after leaving the low
power idle mode, before sending data.
Tx Tw
The time in microseconds that the receiving link partner requests the transmitting link
partner to wait after leaving the low power idle mode, before sending data.
Rx Tw
An alternate value for the time that the receiving link partner requests the transmitting
link partner to wait after leaving LPI mode, before sending data.
Fallback Receive Tw
Echo sent to the link partner of the latest values received from the link partner.Echo Tx Tw
Echo sent to the link partner of the latest values received from the link partner.Echo Rx Tw
The current Tx Tw value in use.Resolved Tx Tw
The current Rx Tw value in use.Resolved Rx Tw
Status of the Energy Efficient Ethernet.EEE Status
Activated—Switch and link partner have agreed upon wakeup time.
Not Activated—Switch and link partner have not agreed upon wakeup time.
Energy Efficient Ethernet 53
