Access panel
To access internal components, you must remove the access panel:
1. Prepare the computer for disassembly (Preparation for disassembly on page 15)

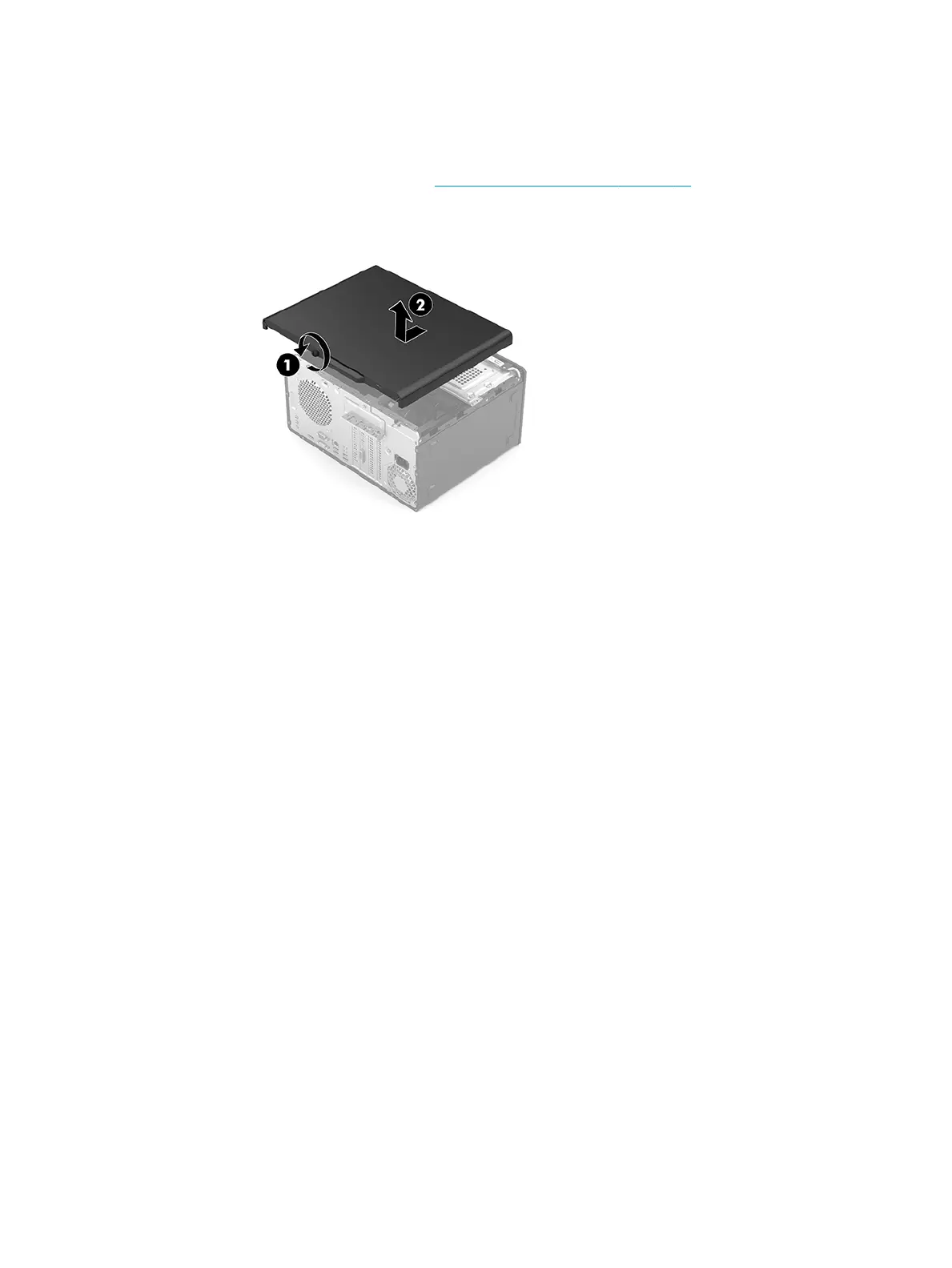

2. Loosen the captive thumbscrew (1), and then slide the panel back (2) and lift it o the computer (3).
To replace the access panel, reverse the disassembly procedures.
16 Chapter 4 Removal and replacement procedures
