Installing an Expansion Bay Drive
62

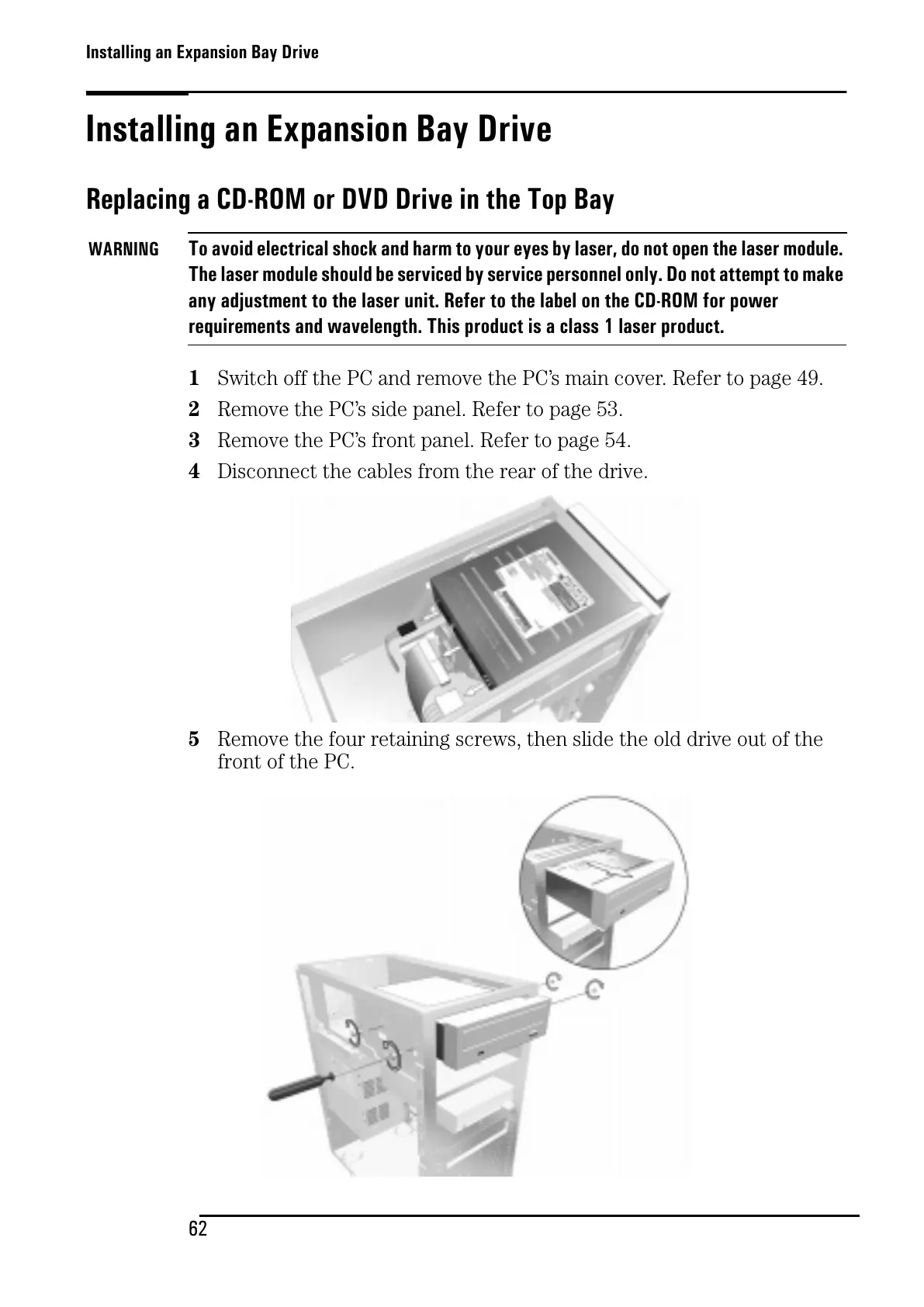

Installing an Expansion Bay Drive
Replacing a CD-ROM or DVD Drive in the Top Bay
WARNING
To avoid electrical shock and harm to your eyes by laser, do not open the laser module.
The laser module should be serviced by service personnel only. Do not attempt to make
any adjustment to the laser unit. Refer to the label on the CD-ROM for power
requirements and wavelength. This product is a class 1 laser product.
1 Switch off the PC and remove the PC’s main cover. Refer to page 49.
2 Remove the PC’s side panel. Refer to page 53.
3 Remove the PC’s front panel. Refer to page 54.
4 Disconnect the cables from the rear of the drive.
5 Remove the four retaining screws, then slide the old drive out of the
front of the PC.
To Next Page
