HP Compaq 2230s User Manual

Connector pin assignments 9–2

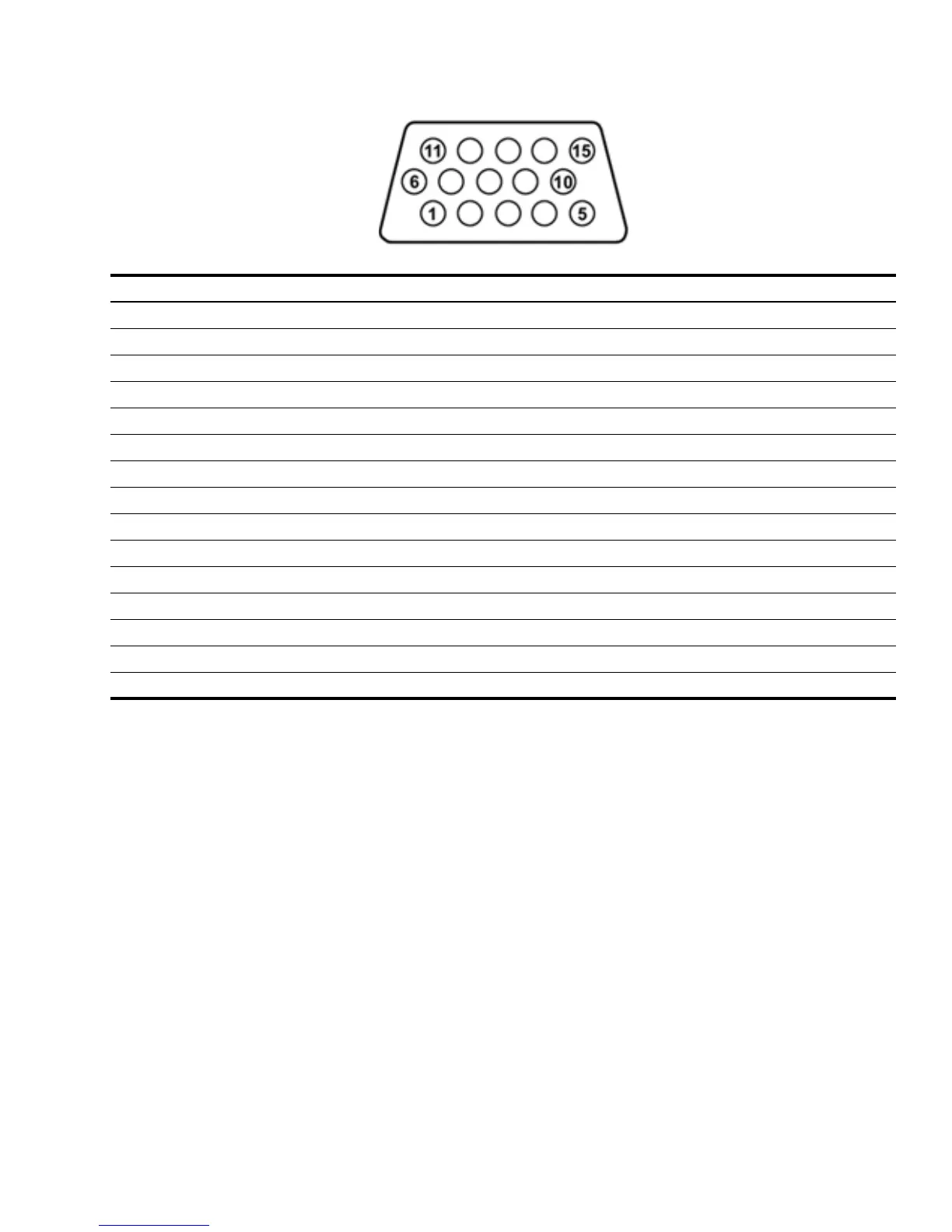

External monitor
Pin Signal
1 Red analog
2 Green analog
3 Blue analog
4 Not connected
5 Ground
6 Ground analog
7 Ground analog
8 Ground analog
9 +5 VDC
10 Ground
11 Monitor detect
12 DDC 2B data
13 Horizontal sync
14 Vertical sync
15 DDC 2B clock

HP Compaq 2230s Specifications

General

Processor model	-
Processor family	Intel® Celeron® M
Processor manufacturer	Intel
HDD speed	5400 RPM
HDD interface	SATA
Card reader integrated	No
Total storage capacity	120 GB
Display surface	Gloss
Display diagonal	12.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Type	PC
Modem speed	56 Kbit/s
Internal modem	Yes
Wireless technology	802.11a/b/g/n draft 2.0
Bluetooth version	2.0+EDR
Networking features	Marvell Ethernet (10/100/1000 NIC)
Operating system installed	Windows Vista Business
Number of battery cells	4
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
AC adapter power	65 W
Battery performance	37 W
Pointing device	Touchpad + Scroll zone
Country of origin	China

Weight and Dimensions

Depth	294 mm
Height	226 mm
Weight	1850 g
Height (front)	28 mm
