Heat sink

Before removing the heat sink, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,

and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the battery (see “Battery” on page 4-7).

5. Remove the following components:

a. Hard drive (see “Hard drive” on page 4-8)

b. Memory module (see “Memory module” on page 4-10)

c. WLAN module (see “WLAN module” on page 4-12)

d. Optical drive (see “Optical drive” on page 4-16)

e. Keyboard (see “Keyboard” on page 4-18)

f. Top cover (see “Top cover” on page 4-21)

g. Audio board (see “Audio board” on page 4-32)

h. Fan (see “Fan” on page 4-33)

i. System board (see “System board” on page 4-34)

Remove the heat sink:

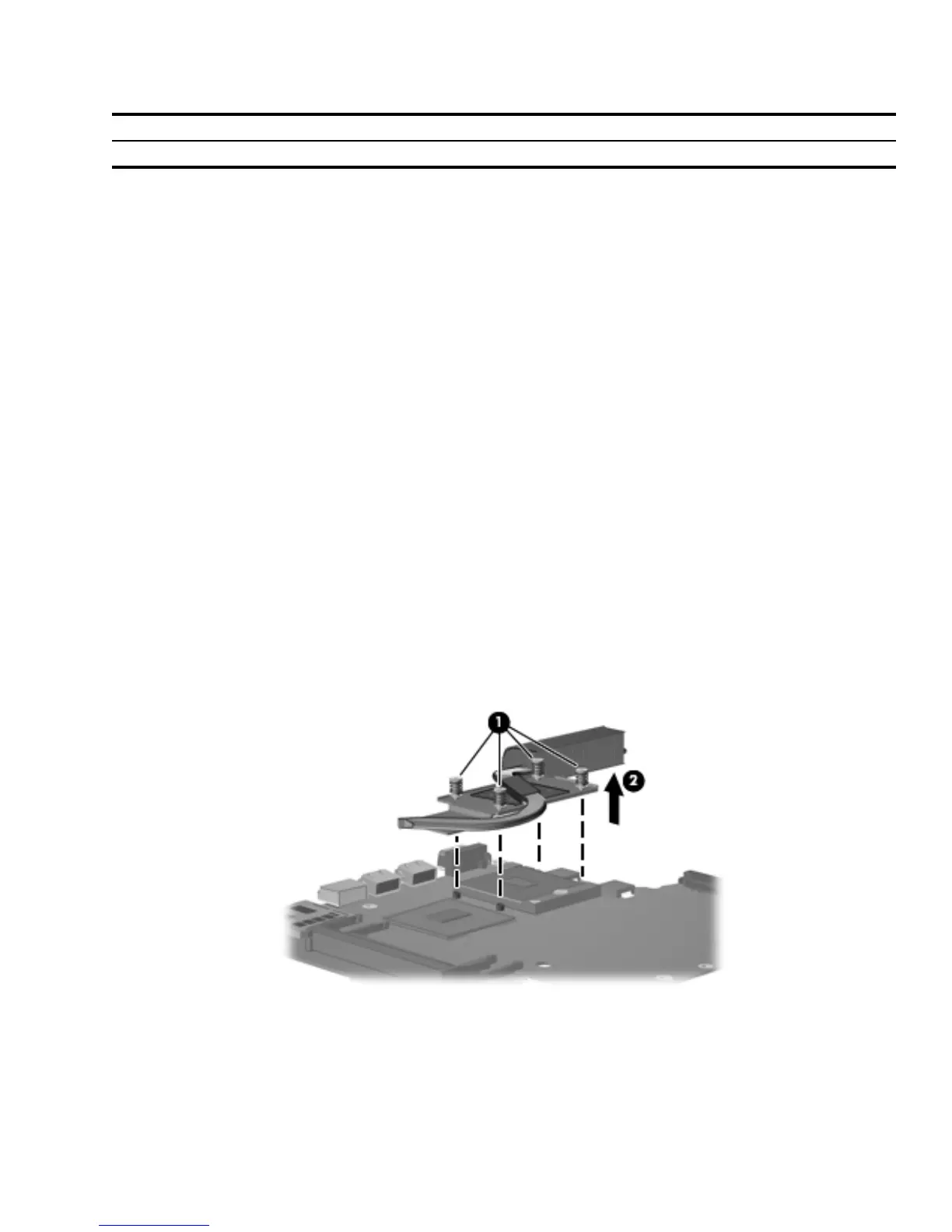

1. Loosen the four Phillips PM2.0×10.0 captive screws 1 that secure the heat sink to the system board.

2. Remove the heat sink 2 by lifting it straight up.

Description Spare part number

Thermal module (includes heat sink and thermal material) 493270-001
