Removal and replacement procedures 4–21

Top cover

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,

and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then

unplugging the AC adapter from the computer.

4. Remove the battery (see “Battery” on page 4-7).

5. Remove the following components:

a. Hard drive (see “Hard drive” on page 4-8)

b. Memory module (see “Memory module” on page 4-10)

c. WLAN module (see “WLAN module” on page 4-12)

d. Optical drive (see “Optical drive” on page 4-16)

e. Keyboard (see “Keyboard” on page 4-18)

Remove the top cover:

1. Close the computer and turn it upside down, with the front toward you.

2. Remove the following:

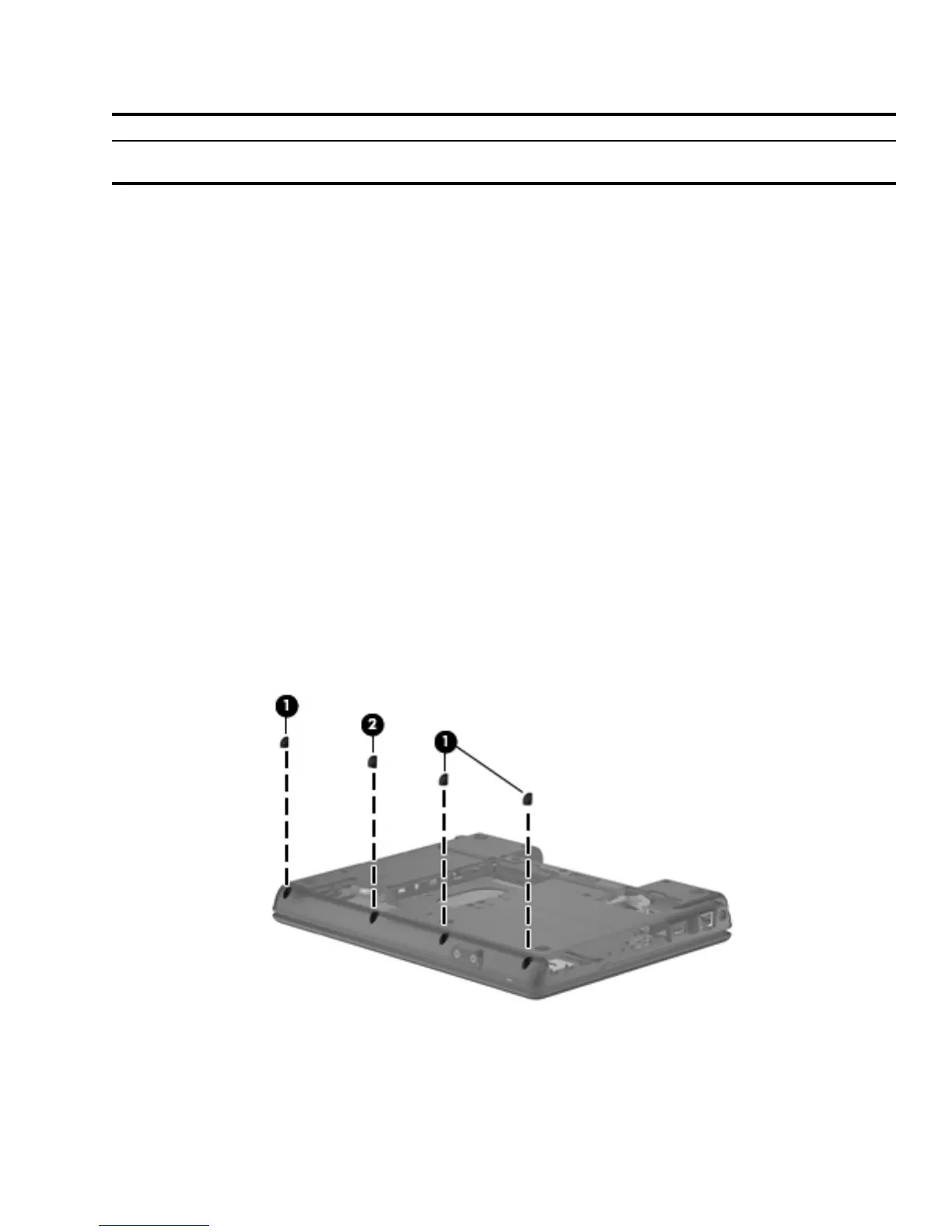

Remove the four rubber screw covers on the front of the computer. Note that three of the screw covers are the

same 1 and one screw cover 2 is different. The rubber screw covers are included in the Plastics Kit, spare part

number 493274-001.

Description Spare part number

Top cover (includes caps lock light, capacitive board, fingerprint reader board and

cable, TouchPad, and TouchPad cable)

493278-001
