Right-side components

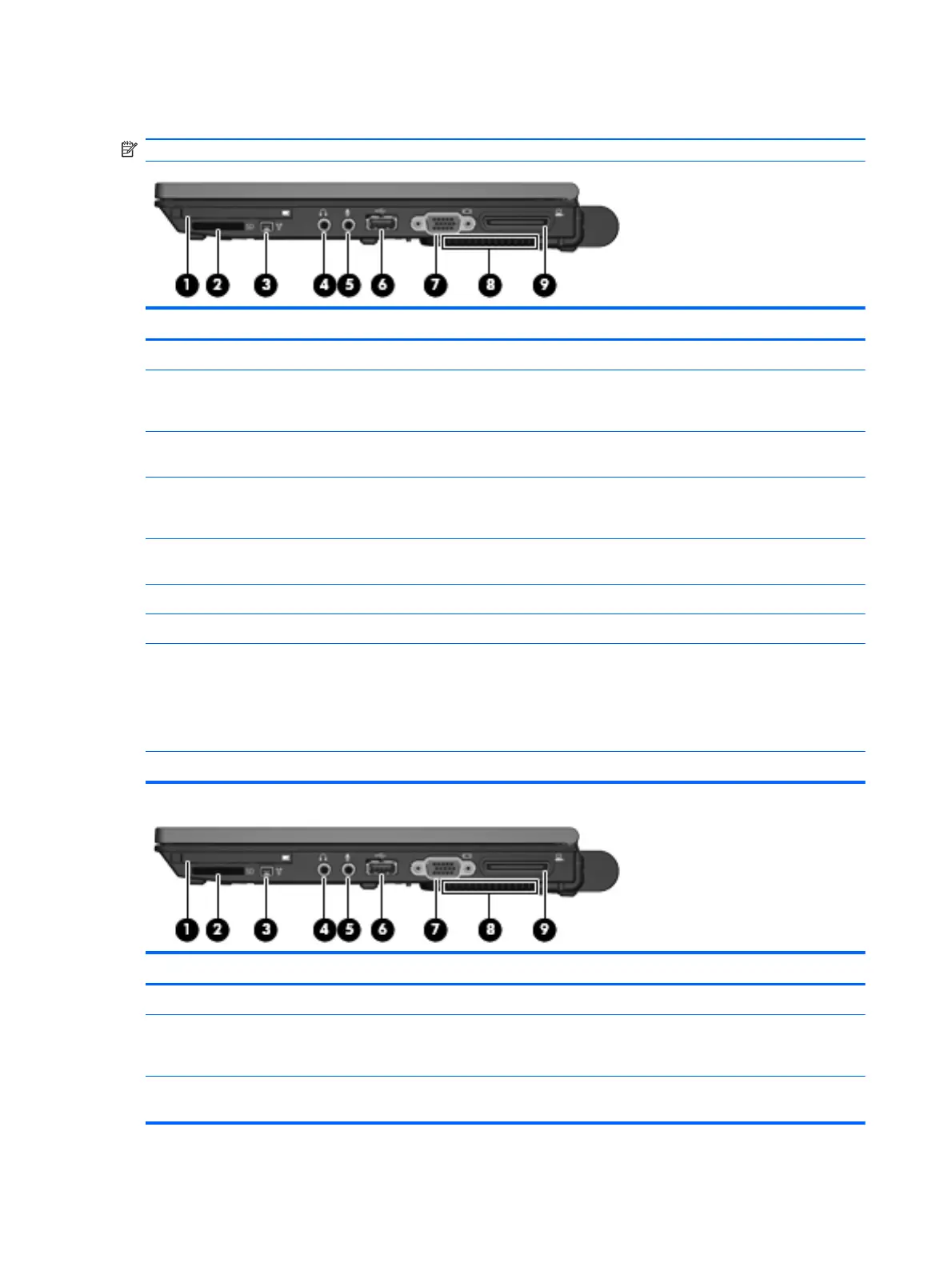

NOTE: Computer features vary depending on model. Refer to one of the following illustrations.
Item Component Function
(1) PC Card slot (select models only) Supports optional Type I or Type II PC Cards.
(2) Media Card Reader Supports the following optional digital card formats:
Secure Digital (SD) Memory Card, MultiMediaCard
(MMC).
(3) 1394a port Connects an optional IEEE 1394 or 1394a device, such
as a camcorder.
(4) Audio-out (headphone) jack Produces computer sound when connected to optional
powered stereo speakers, headphones, ear buds, a
headset, or television audio.
(5) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(6) USB port Connects an optional USB device.
(7) External monitor port Connects an external VGA monitor or projector.
(8) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(9) Docking connector Connects an optional docking device.
Item Component Function
(1) Smart card reader (select models only) Supports smart cards and Java™ Cards.
(2) Media Card Reader Supports the following optional digital card formats:
Secure Digital (SD) Memory Card, MultiMediaCard
(MMC).
(3) 1394a port Connects an optional IEEE 1394 or 1394a device, such
as a camcorder.
14 Chapter 2 External component identification
