PC Card assembly
Description Spare part number
PC Card assembly 451742-001
Before removing the PC Card assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 41).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 52)
b. Optical drive (see
Optical drive on page 56)
c. Switch cover (see
Switch cover on page 57)
d. Keyboard (see
Keyboard on page 59)
e. Display assembly (see
Display assembly on page 62)
f. Top cover (see
Top cover on page 67)
g. System board (see
System board on page 70)

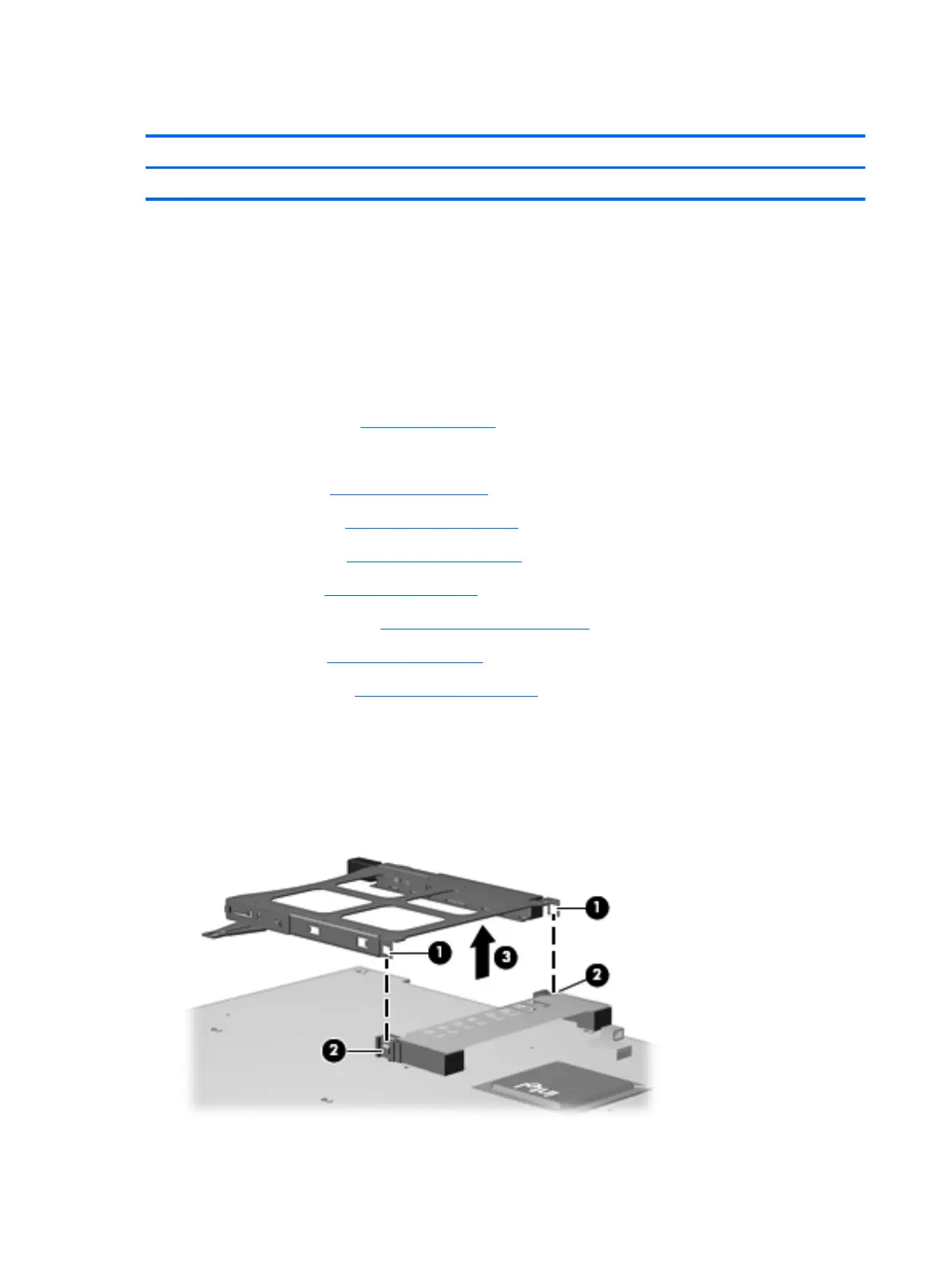

Remove the PC Card assembly:
1. Turn the system board upside down, with the front toward you.
2. Detach the slots on the PC Card assembly (1) from the tabs on the PC Card connector (2).
3. Remove the PC Card assembly (3).
76 Chapter 4 Removal and replacement procedures
