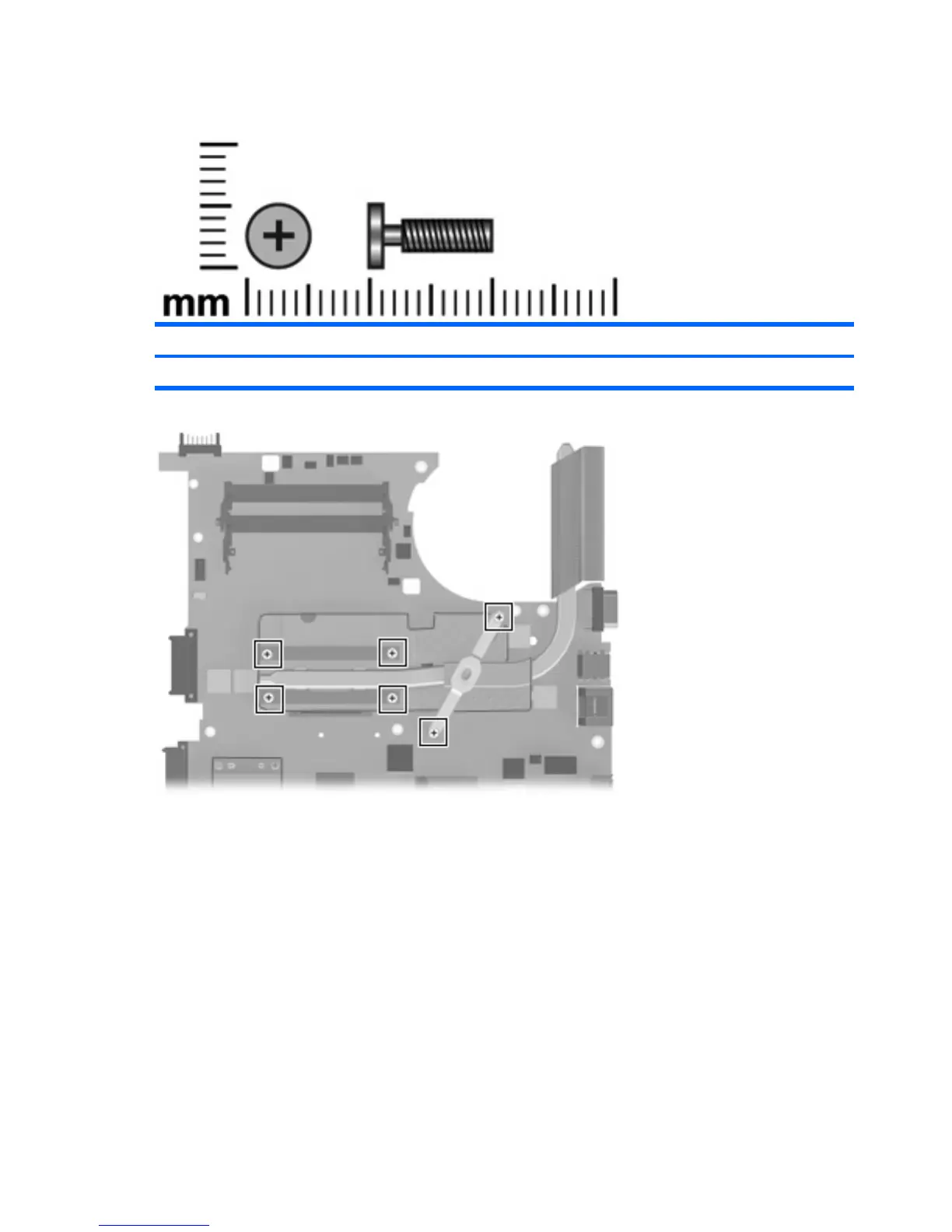

Phillips PM2.5×10.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Silver
16
10.0 mm
2.5 mm
5.0 mm
Where used:
6
captive screws that secure t
he heat si
nk to the syst
em board for use only with H
P
Compaq 6535s Noteboo
k PC models (screws are secure
d to the heat sink by C-clips)
128
Chapter 7 Screw listing
135
137
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
16
Top Components
16
Display Components
16
Touchpad
17
Buttons, Switch, Lights, and Speakers
18
Keys
19
Front Components
20
Right-Side Components
20
Left-Side Components
22
Bottom Components
23
3 Illustrated Parts Catalog
24
Service Tag
24
Computer Major Components
25
Plastics Kit
33
Cable Kit
34
Mass Storage Devices
35
Miscellaneous Parts
37
Sequential Part Number Listing
39
4 Removal and Replacement Procedures
46
Preliminary Replacement Requirements
46
Tools Required
46
Service Considerations
46
Plastic Parts
46
Cables and Connectors
47
Drive Handling
47
Grounding Guidelines
48
Electrostatic Discharge Damage
48
Packaging and Transporting Guidelines
49
Workstation Guidelines
49
Equipment Guidelines
50
Unknown User Password
51
Component Replacement Procedures
52
Service Tag
52
Computer Feet
53
Battery
54
Hard Drive
55
WLAN Module
58
Memory Module
61
Optical Drive
63
Switch Cover and Keyboard
65
Speakers
69
Display Assembly
70
Top Cover
76
USB Connector Module
80
Bluetooth Module
81
RTC Battery
83
Fan
85
System Board
87
Modem Module
90
Heat Sink
92
Processor
96
5 Computer Setup
99
Starting Computer Setup
99
Using Computer Setup
100
Navigating and Selecting in Computer Setup
100
Restoring Factory Settings in Computer Setup
100
Computer Setup Menus
102
File Menu
102
Security Menu
103
Diagnostics Menu
104
System Configuration Menu
105
6 Specifications
108
Computer Specifications
108
14.1-Inch, WXGA Display Specifications
109
Hard Drive Specifications
110
DVD±RW and CD-RW Combo Drive, Double-Layer Specifications
111
DVD/CD-RW Combo Drive Specifications
112
DVD-ROM Drive
113
System DMA Specifications
114
System Interrupt Specifications
115
System I/O Address Specifications
116
System Memory Map Specifications
118
7 Screw Listing
119
Slotted Torx ST8M2.5×7.0 Screw
119
Phillips PM2.0×3.0 Screw
122
Phillips PM2.5×6.0 Captive Screw
123
Phillips PM2.5×10.0 Captive Screw
124
Phillips PM3.0×4.0 Screw
125
Phillips PM2.5×4.0 Screw
126
Torx T8M2.0×2.0 Broadhead Screw (9-MM)
127
Phillips PM2.0×2.0 Broadhead Screw (6-MM)
128
Torx T8M2.5×4.0 Screw
129
Torx T8M2.5×6.0 Screw
130
Phillips PM2.5×5.0 Screw
132
Phillips PM2.0×2.0 Broadhead Screw (5-MM)
132
Phillips PM2.0×4.0 Screw
133
Phillips PM2.5×9.0 Screw
135
Phillips PM2.5×10.0 Captive Screw
136
8 Backup and Recovery
138
Backup and Recovery in Windows Vista
138
Overview
138
Backing up Your Information
138
Performing a Recovery
139
Using F11
140
Using the Windows Recovery Tools
140
Using a Windows Vista Operating System DVD (Purchased Separately)
141
Backup and Recovery in Windows XP
142
Overview
142
Backing up Your Information
142
Performing a Recovery
143
Recovering the Operating System and Programs
143
Recovering Your Information
143
9 Connector Pin Assignments
144
Audio-In (Microphone)
144
Audio-Out (Headphone)
144
External Monitor
145
Modem)
146
Network)
147
Universal Serial Bus
147
10 Power Cord Set Requirements
148
Requirements for All Countries and Regions
148
Requirements for Specific Countries and Regions
149
11 Recycling
150
Battery
150
Display
150
Index
156
