Hardware Reference Guide www.hp.com 1ā3
Product Features

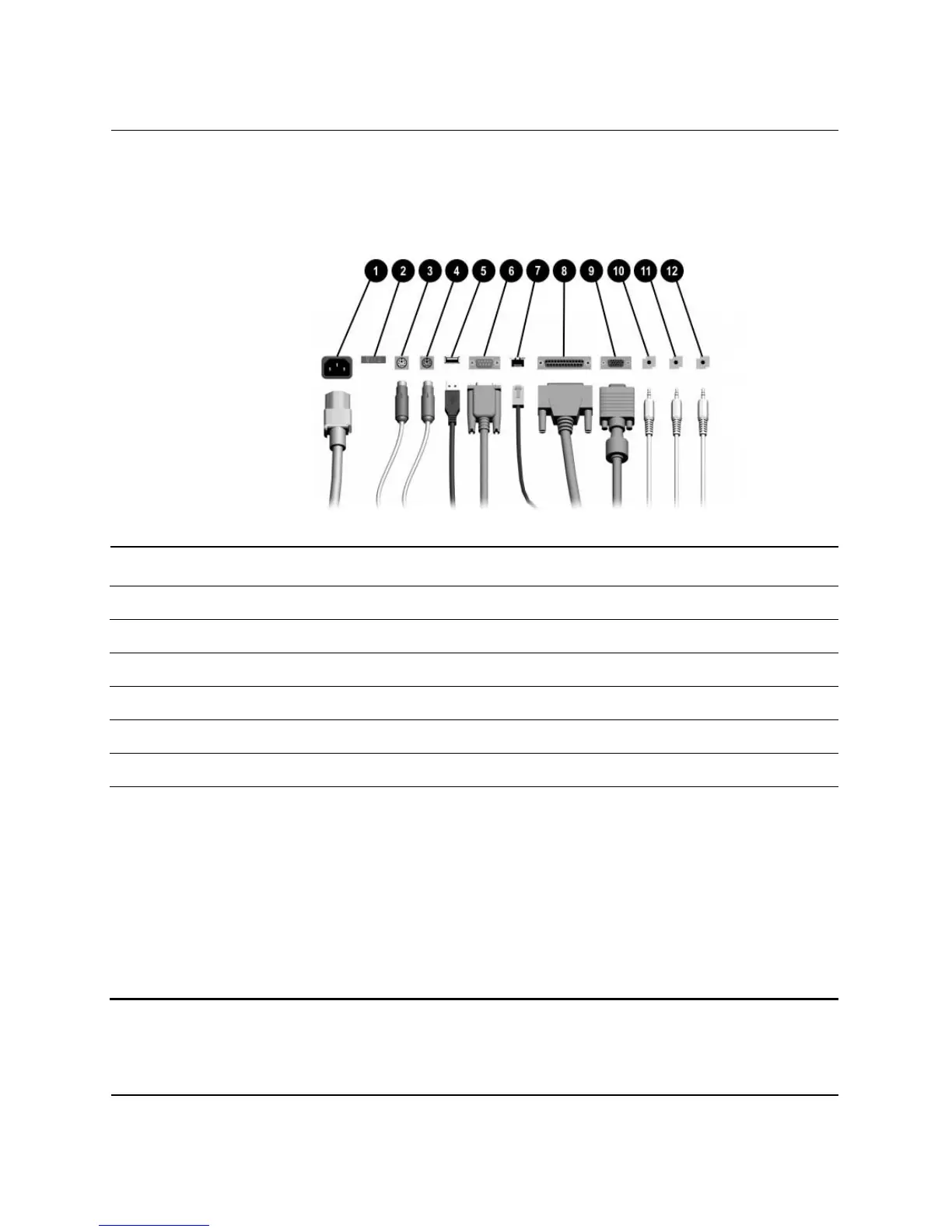

Rear Panel Components
Rear Panel Components
1 Power Cord Connector 7
n
RJ-45 Network Connector
2 Voltage Select Switch 8
l
Parallel Connector
3
b
PS/2 Mouse Connector 9
c
Monitor Connector
4
a
PS/2 Keyboard Connector -
h
Headphone/Line-Out Connector
5
o
Universal Serial Bus (USB) q
j
Line-In Audio Connector
6
m
Serial Connector w
g
Microphone Connector
ā
Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when an AGP expansion card is installed in
the computer, or when both an AGP and PCI graphics card are installed.
If only a PCI graphics card is installed, the connectors on the card and the system board may be
used at the same time. Some settings may need to be changed in F10 setup to use both connectors.
For more information about Boot Order, refer to the Computer Setup (F10) Utility Guide on the
Documentation Library CD.
If you have installed an AGP and PCI graphics card, the connectors on both cards are active and
can be used at the same time.
