Hardware Setup
Getting Started 1–7
Connecting the Modem with an Adapter
To connect the modem to an analog telephone line that does
not
have an RJ-11 (modem) jack:

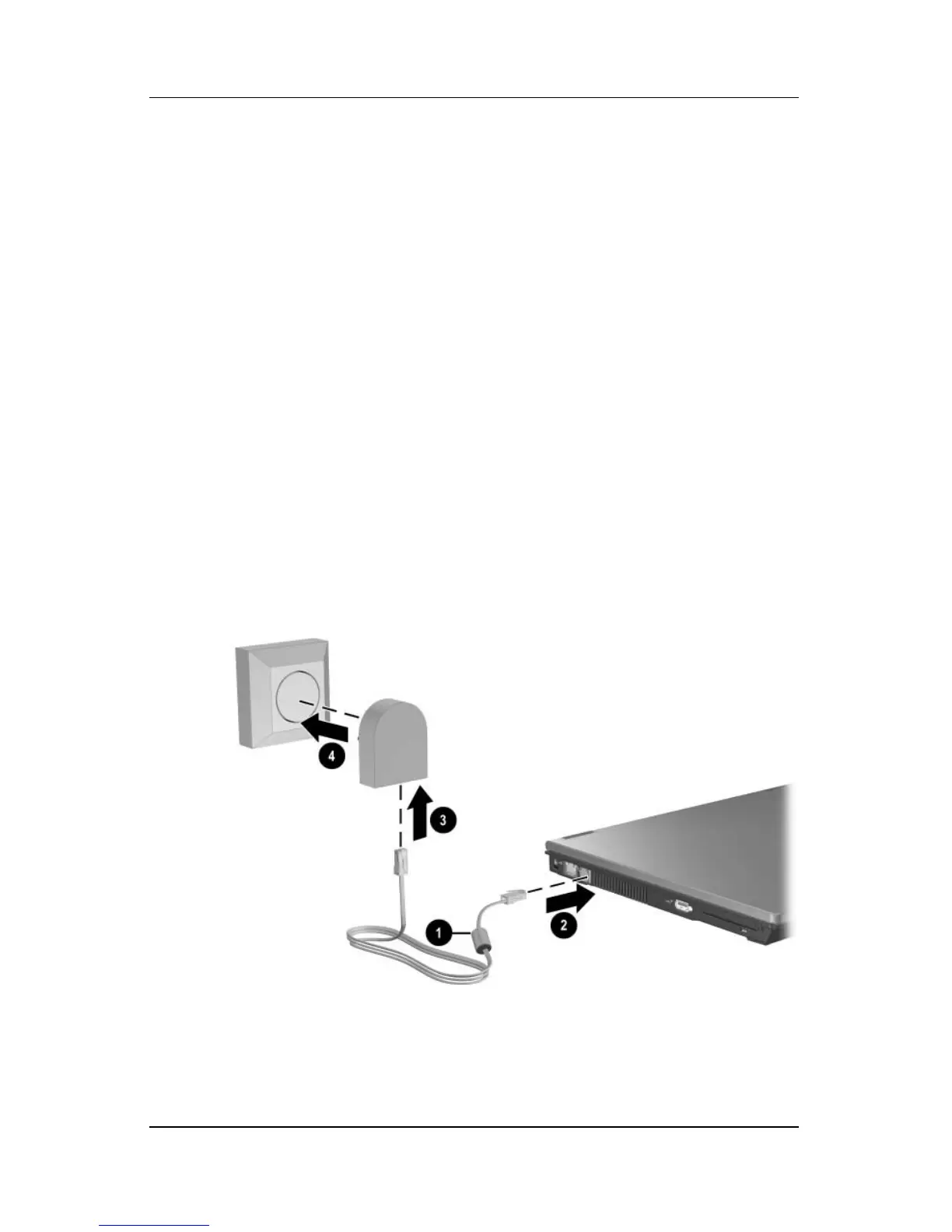

1. If the modem cable contains noise suppression circuitry 1,
plug the circuitry end of the modem cable 2 into the RJ-11
modem jack on the notebook.
Å
To reduce the risk of electrical shock, fire, or damage to the
equipment, do not plug the modem cable into a RJ-45
network jack.
2. Plug the modem cable into the country-specific modem
adapter 3.
3. Plug the country-specific modem adapter 4 into the
(modem)
jack.
✎
Telephone wall jacks and modem cables vary in appearance by
region and country.
