HP Elite Dragonfly G2 User Manual

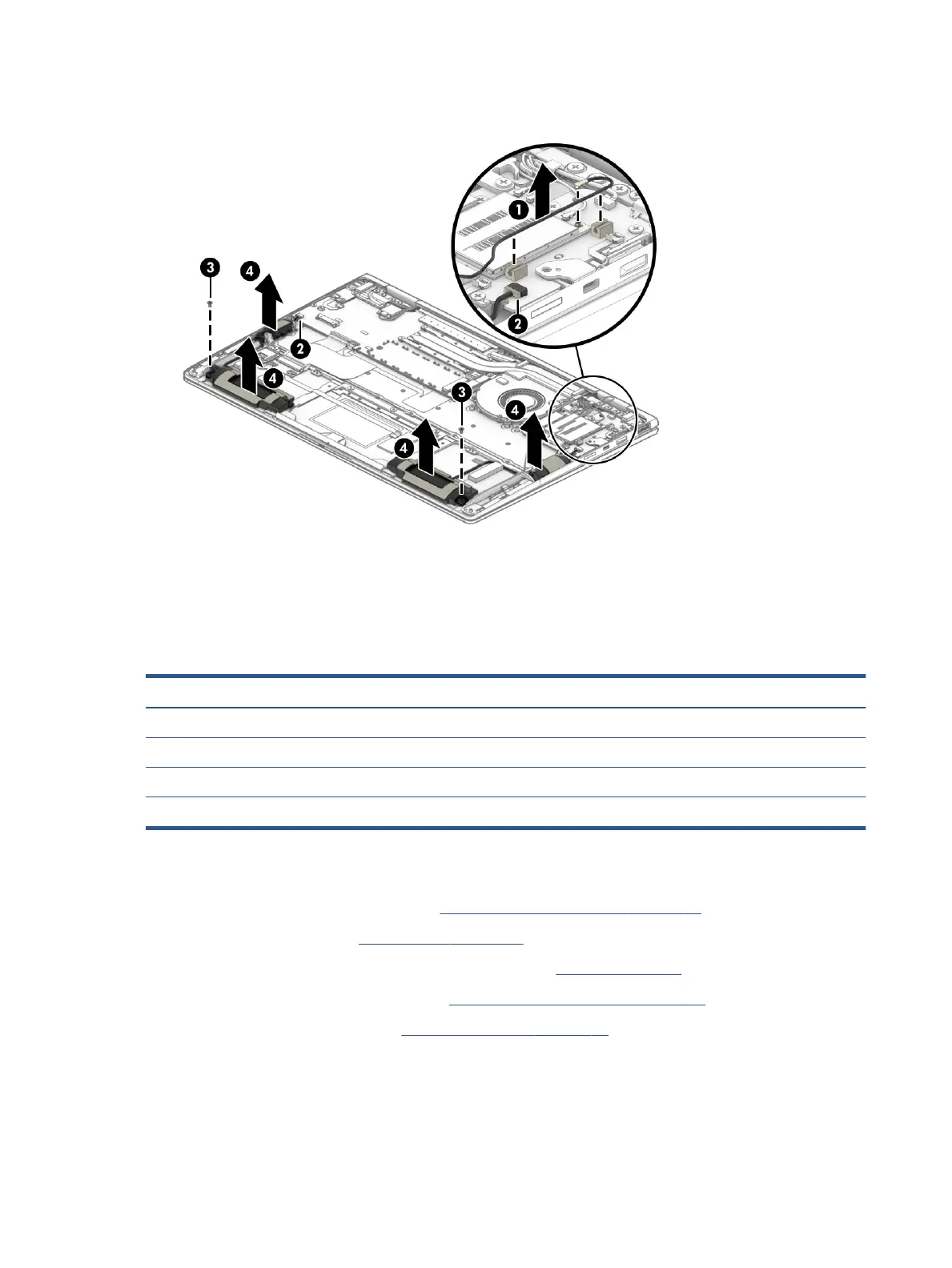

4. Remove the speakers from the computer (4).
Reverse this procedure to install the speakers.
USB board
To remove the USB board, use this procedure and illustration.
Table
5-11 USB board description and part number
Description Spare part number
USB board (models without WWAN) M42276-001
USB board (models with WWAN) M42277-001
USB board cable (available in the Cable Kit for models without WWAN) M42293-001
USB board cable (available in the Cable Kit for models with WWAN) M48385-001
Before removing the USB board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (Bottom cover on page 30).
3. Disconnect the battery cable from the system board (see Battery on page 31).
4. Remove the heat sink and fan assembly (Heat sink and fan assembly on page 38).
5. Remove the power button board (Power button board on page 45).
Remove the USB board:
1. Disconnect the large, at cable from the ZIF connector on the USB board (2).
2. Disconnect the touch cable from the connector on the USB board (2).
44 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP Elite Dragonfly G2 Specifications

General

4G standard	LTE-TDD & LTE-FDD
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
WLAN controller model	Intel Wi-Fi 6 AX201
Mobile network connection	Yes
Mobile network generation	4G
WLAN controller manufacturer	Intel
Color gamut	72 %
Display surface	Gloss
RGB color space	NTSC
Display diagonal	13.3 \
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	400 cd/m²
Display diagonal (metric)	33.8 cm
Processor cache	8 MB
Processor cores	4
Processor model	i5-1135G7
Processor family	Intel® Core™ i5
Processor threads	8
Configurable TDP-up	28 W
Processor frequency	- GHz
Processor cache type	L3
Configurable TDP-down	12 W
Processor boost frequency	4.2 GHz
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-down frequency	0.9 GHz
ECC	No
Memory slots	1x SO-DIMM
Internal memory	8 GB
Memory clock speed	4266 MHz
Memory form factor	On-board
Internal memory type	LPDDR4x-SDRAM
Battery weight	240 g
Battery capacity	56 Wh
Pointing device	Clickpad
Input device model	HP Premium Collaboration Keyboard
Keyboard special features	Spill-resistant
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express, NVMe
Storage media	SSD
Total storage capacity	256 GB
Number of SSDs installed	1
Color name	Galaxy blue
Form factor	Convertible (Folder)
Product type	Hybrid (2-in-1)
Product color	Blue
Country of origin	China
Market positioning	Premium
Original brand name	HP
Speakers manufacturer	Bang & Olufsen
Charging port type	USB Type-C
USB 2.0 ports quantity	0
Sustainability certificates	ENERGY STAR, TCO
HP segment	Business
Operating system installed	Windows 11 Pro
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Front camera	-
Password protection type	BIOS, Power on, User
Trusted Platform Module (TPM) version	2.0
Package depth	449 mm
Package width	69 mm
Package height	305 mm

Weight and Dimensions

Depth	197.5 mm
Width	304.3 mm
Height	16.1 mm
Weight	990 g
