A Templates
This appendix contains blank floor plan grids and equipment templates. Combine the necessary
number of floor plan grid sheets to create a scaled version of the computer room floor plan.

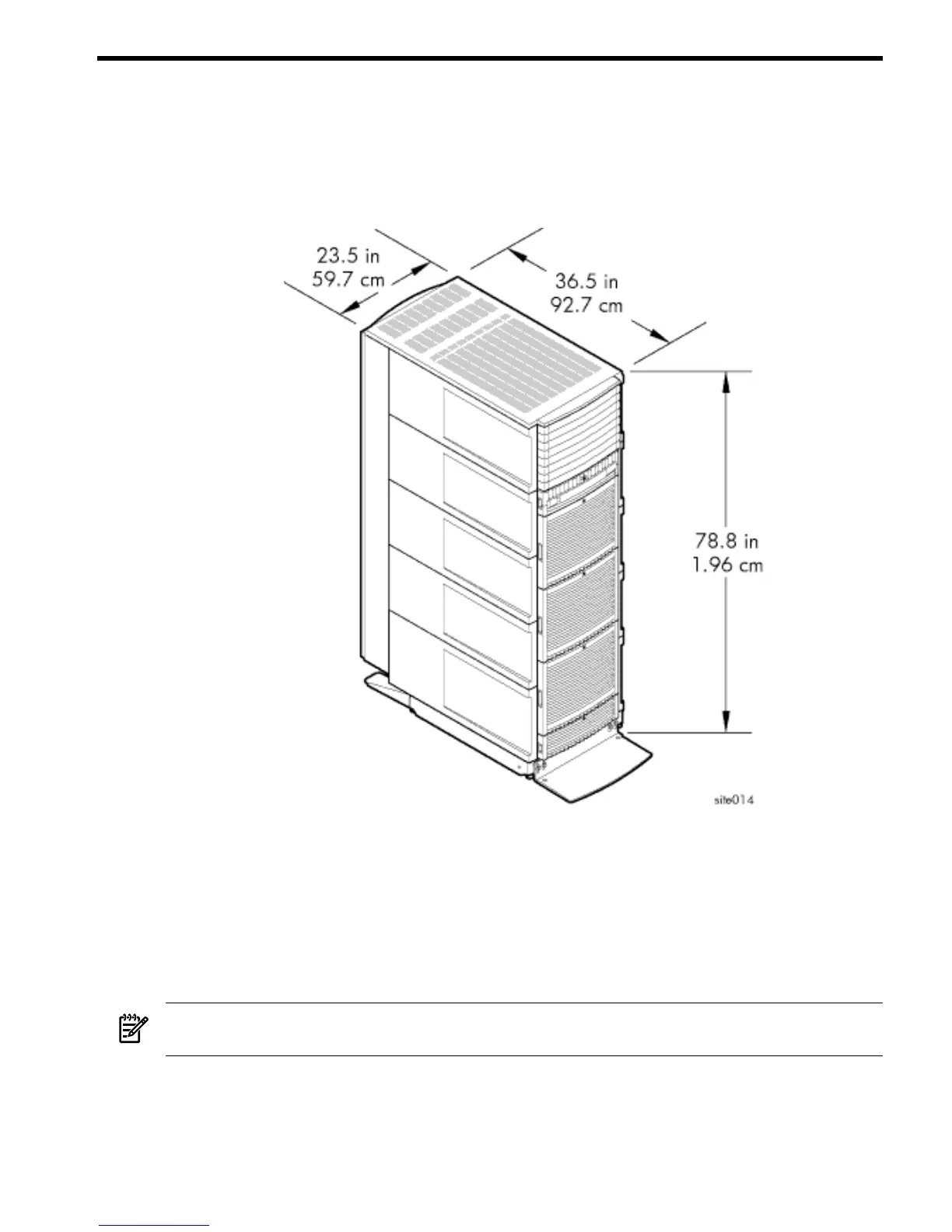

Figure A-1 illustrates the overall dimensions required for the servers.
Figure A-1 Server Space Requirements
Equipment Footprint Templates
Equipment footprint templates are drawn to the same scale as the floor plan grid (1/4 inch = 1
foot). These templates show basic equipment dimensions and space requirements for servicing.
Refer to Figure A-2 (page 42).
The service areas shown on the template drawings are lightly shaded.
Use the equipment templates with the floor plan grid to define the location of the equipment
that will be installed in your computer room.
NOTE: Photocopying typically changes the scale of drawings copied. If you copy any templates,
then you must also copy all templates and floor plan grids.
Computer Room Layout Plan
Use the following procedure to create a computer room layout plan:
1. Remove several copies of the floor plan grid (Figure A-3).
Equipment Footprint Templates 41
