2 Installation
The AP can be mounted on a wall, a wall-mounted electrical box, or a suspended ceiling. In all
cases, the first step is to mount the bracket, and the second step is to attach the AP to the bracket.The
AP Bracket is two-sided: The AP is installed on the side with the UP arrow. The other side with the
T-bar clip screw holes faces the wall or T-bar.

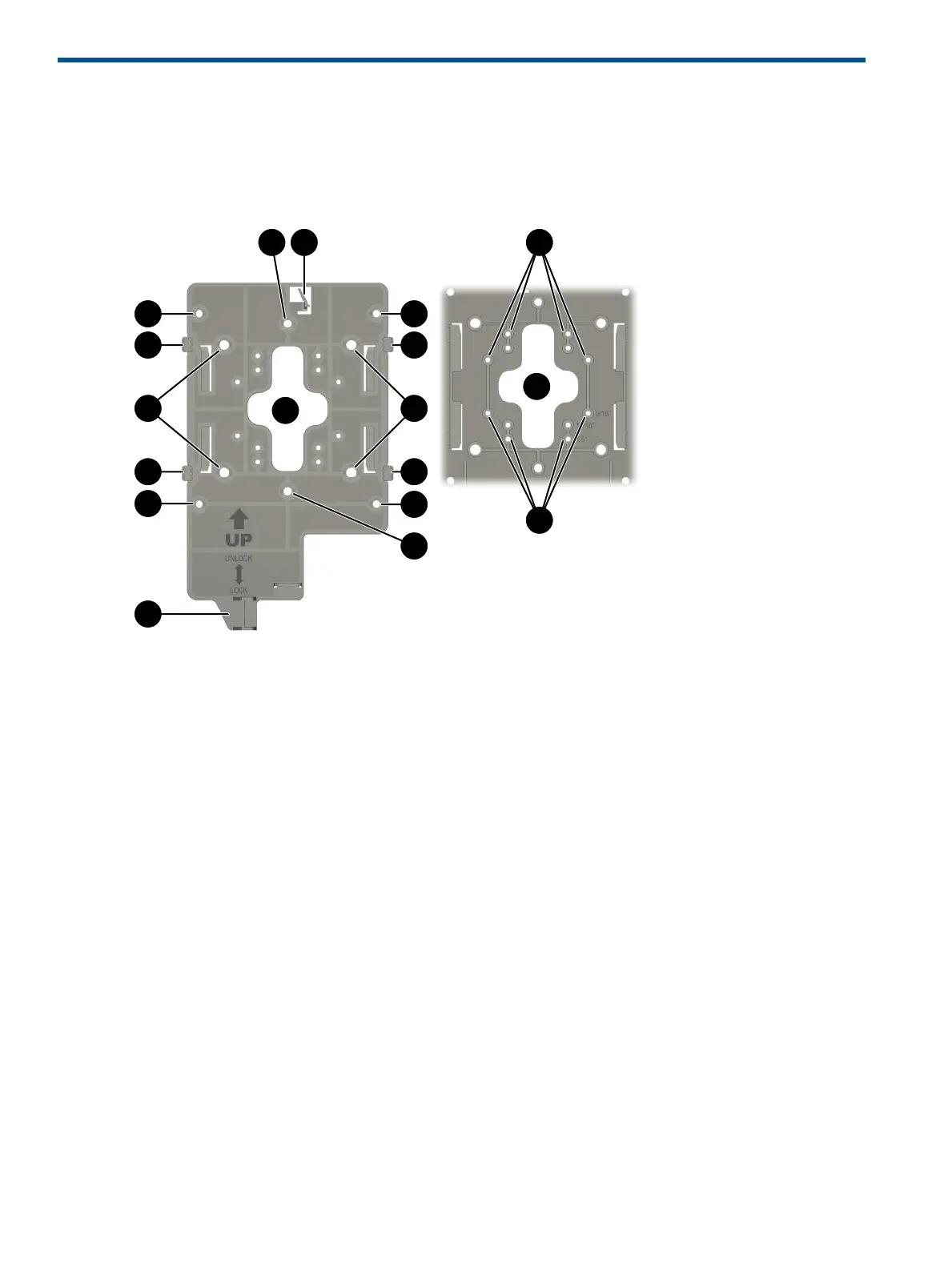

AP Bracket (AP side left, wall/ ceiling side right)
5: Drywall mounting holes1: Adapter Bracket mounting holes
6: Cutout area2: Electrical box mounting holes
7: AP Bracket lock tab3: AP Bracket latch
8: T-bar clip screw holes4: AP retention tabs
Mounting directly on a wall
1. Respecting the UP indicator on the bracket, hold the bracket against the wall at the desired
position. Mark two holes for the screws (wall anchors) and one hole in the cutout area of the
bracket for the Ethernet cable.
2. Drill two holes for the wall anchors, typically 4.7 mm (3/16 inch) in diameter.
3. If necessary, drill a hole for the Ethernet cable in the marked cutout area of the bracket.
Alternatively, you can feed the Ethernet cable from above and through the AP cable channel.
4. Insert the anchors and tap them flush with the wall surface.
5. If applicable, pull the Ethernet cable through the hole in the wall and the hole in the bracket.
6. Screw the bracket to the wall.
7. Continue with “Attaching the AP to the mounting bracket” (page 12).
Mounting on a wall-mounted electrical box
The AP can be mounted on a wall-mounted electrical box using the supplied mounting bracket.
1. Disconnect power and take any other needed safety precautions.
2. Remove the electrical box cover and any contents.
10 Installation
