Solid-state drive (SSD)
Table 5-2 Solid-state drive description and part number
Description Spare part number
128 GB, SATA-3, TLC L62973-001
Solid-state drive shielding L68814-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 44).
Remove the solid-state drive:

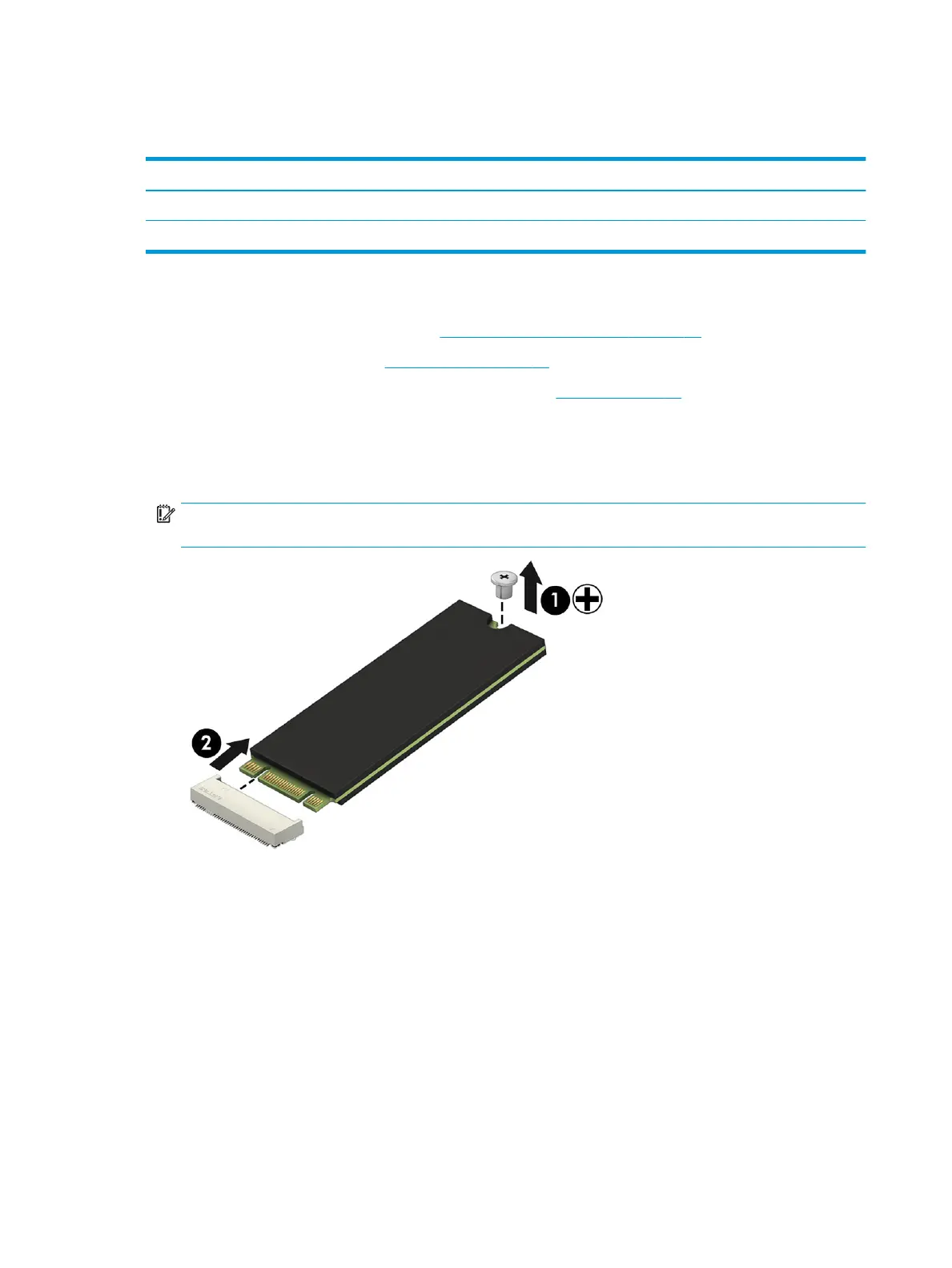

1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive by pulling it away from the connector (2).
IMPORTANT: When replacing the solid-state drive, remove the shielding from the old drive and install
it on the replacement drive.
Reverse this procedure to install the solid-state drive.
34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
