Smart card reader
Table 6-11 Smart card reader and cable descriptions and part numbers
Description Spare part number
Smart card reader L62733-001
Smart card reader pass-thru board (for use in models without a smart card)
NOTE: This board provides cable pass-through capability for models without a smart card.
L62743-001
Smart card reader cable (available in Cable Kit) L64668-001 (Cable Kit)
Before removing the card reader, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Remove the battery (see Battery on page 44).
Remove the smart card reader:
NOTE: Before you remove the smart card reader, make sure nothing (memory card or plastic insert) is
inserted in the reader.

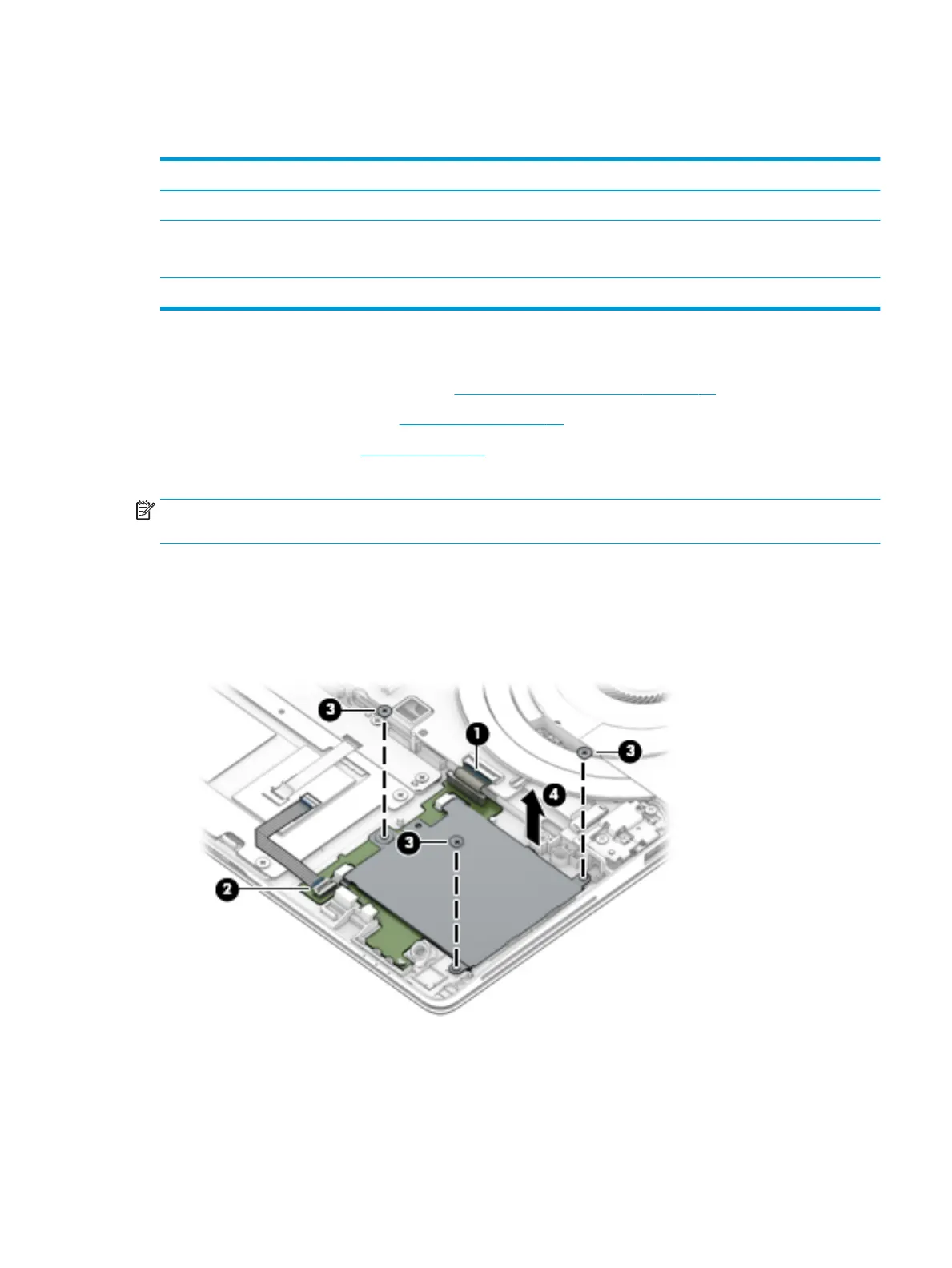

1. Disconnect the system board cable from the connector on the smart card reader board (1).
2. Disconnect the touchpad cable from the ZIF connector on the smart card reader board (2).
3. Remove the three Phillips M2.0 × 2.0 screws (3) that secure the smart card reader to the computer.
4. Remove the smart card reader from the computer (4).
Reverse this procedure to install the smart card reader.
