NFC module
Table 6-10 NFC module description and part number
Description Spare part number
NFC module (includes antenna and touchpad foam) L14385-001
Before removing the NFC module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Disconnect all external devices from the computer.
3. Remove the bottom cover (see Bottom cover on page 32).
4. Remove the battery (see Battery on page 44).
Remove the NFC module:

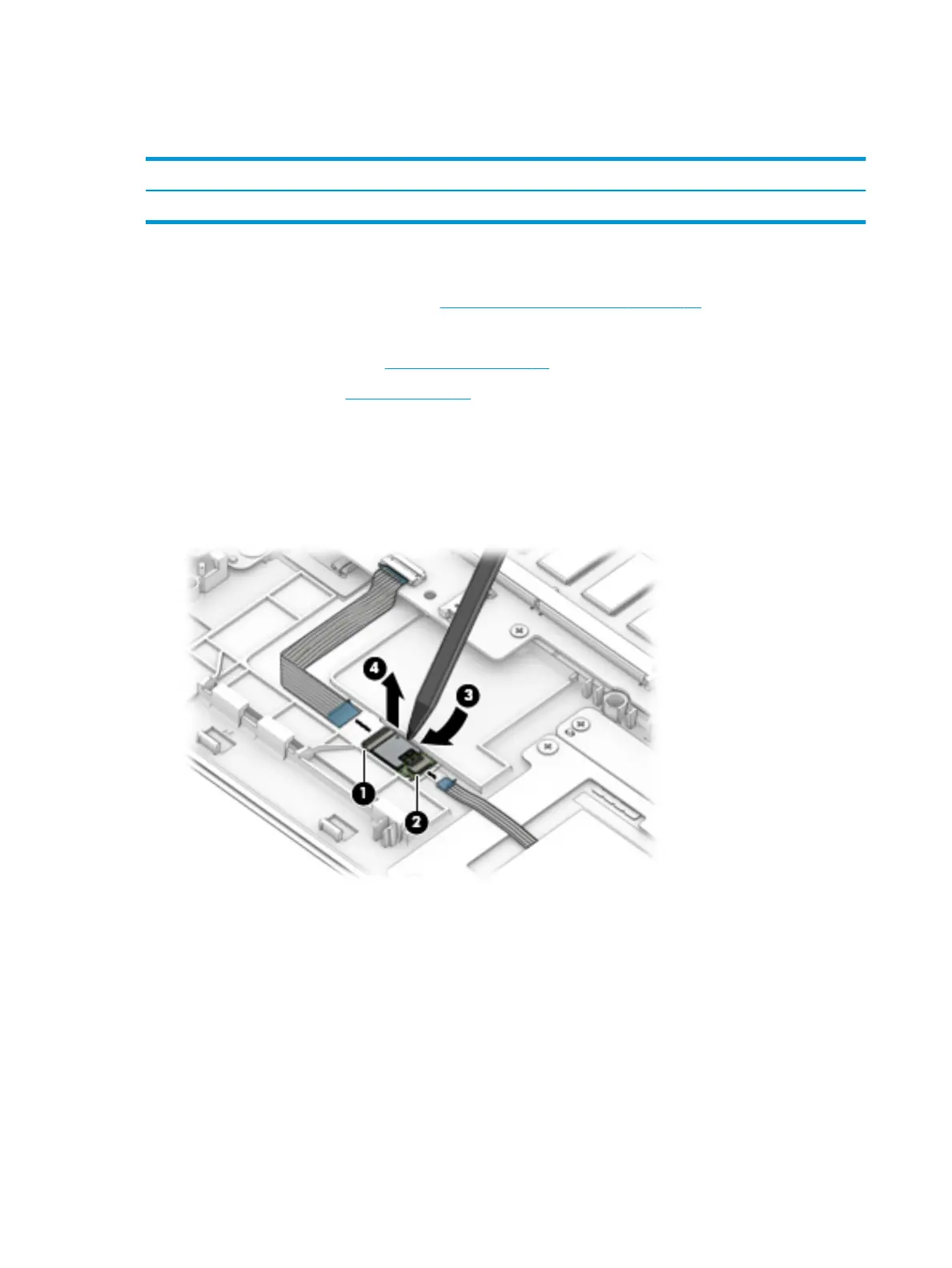

1. Disconnect the system board cable (1) and the NFC antenna (2) from the ZIF connectors on the NFC
module.
2. Use a tool to release the NFC module from the adhesive securing it to the computer (3), and then remove
the module from the computer (4).
Reverse the removal procedures to install the NFC module.
