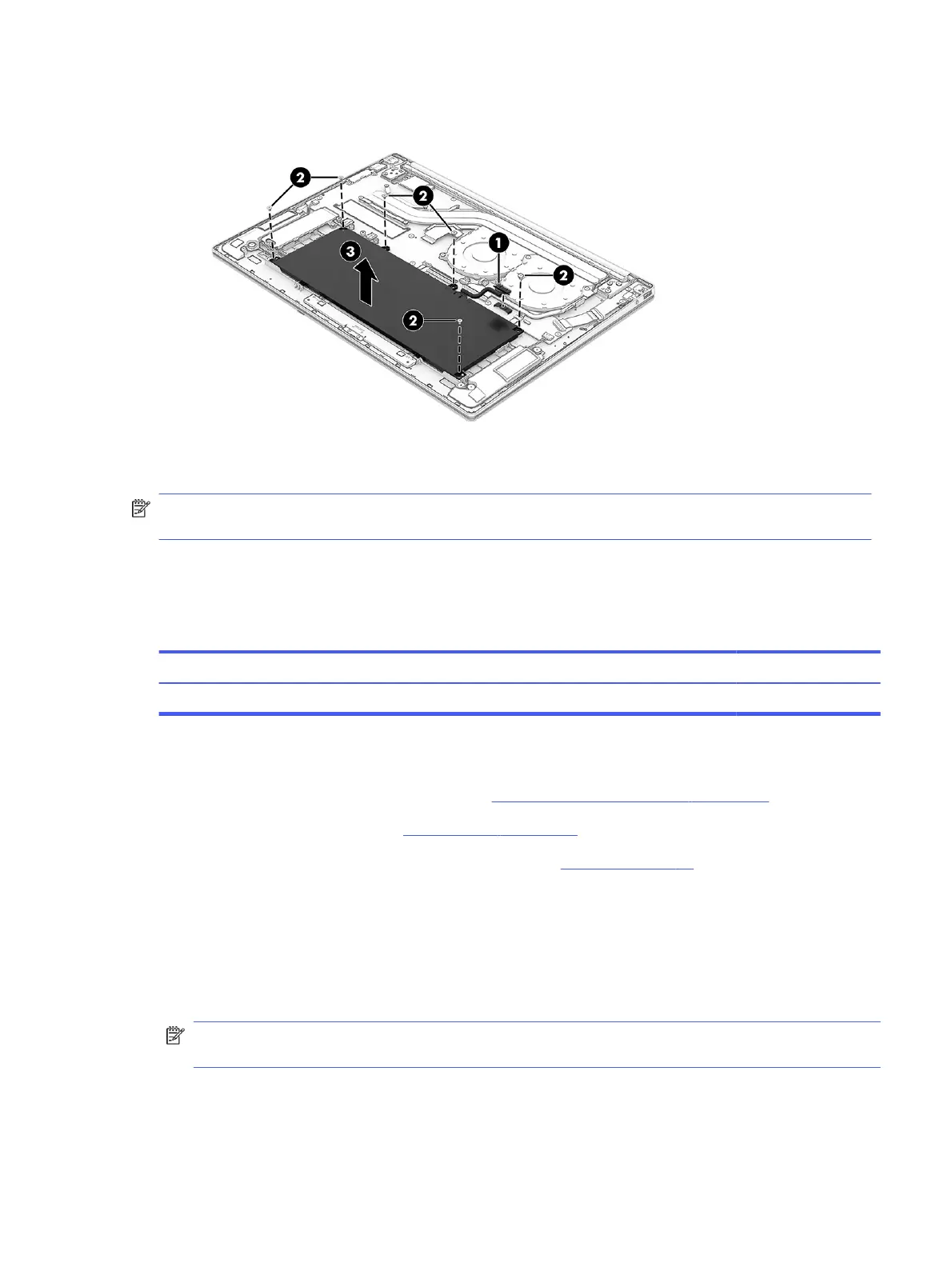

4. Remove the battery (3) from the computer.
To install the battery, reverse the removal procedures.
NOTE: When replacing the battery, be sure to completely reassemble the computer and plug in the
AC adapter before turning the computer on.
Speakers
To remove the speakers, use this procedure and illustration.
Table 5-3
Speaker description and part number
Description Spare part number
Speakers (includes left and right speakers, cables, and four rubber isolators) N94802-001
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 33).
2. Remove the bottom cover (see Bottom cover on page 33).
3. Disconnect the battery cable from the computer (see Battery on page 35).
Remove the speakers:
1. Disconnect the speaker cables (1) from the system board.
2. Remove the four Phillips M2.0 × 2.4 broadhead screws (2) that secure the speakers to the computer.
3. Remove the speakers (3) from the computer.
NOTE: When removing the speakers, make note of the location of the rubber isolator locations (4).
The absence of or damage to these isolators can result in degraded speaker performance.
Speakers
37
