6.

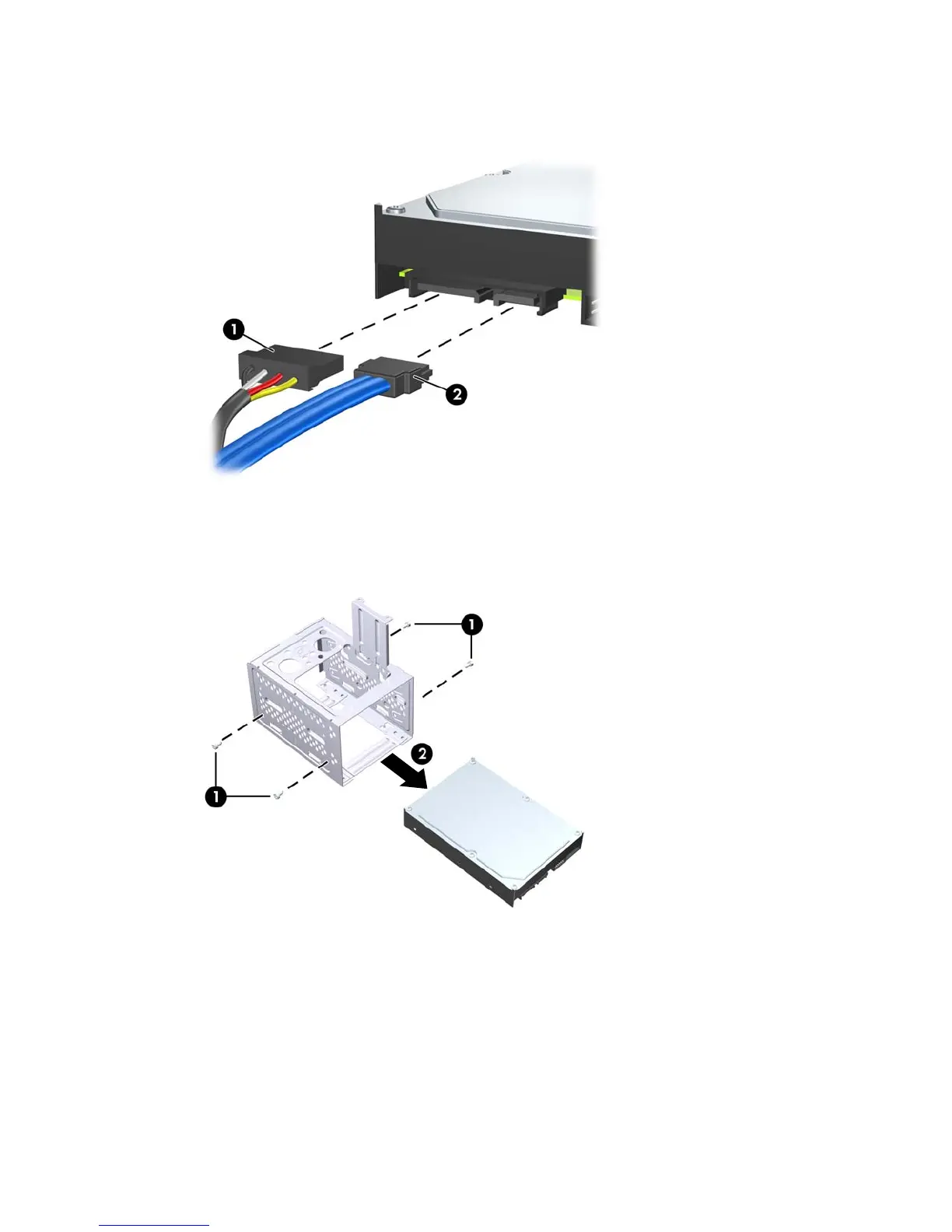

Disconnect the power cable
(1)
and da
ta cable
(2)
from the back of the hard drive.
Figure 5-26
Disconnecting the Hard Drive Cables
7.
Remove the four screws
that secure the hard disk dr
ive to the hard dri
ve cage
(1)
, then slide the
hard disk drive o
ut of the hard dr
ive cage
(2)
.
Figure 5-27
Removing the Ha
rd Drive
Drives
71
80
82
Table of Contents
Default Chapter
3
About this Book
3
Table of Contents
5
1 Installing and Customizing the Software
11
Installing the Operating System
11
Downloading Microsoft Windows Updates
12
Installing or Upgrading Device Drivers (Windows Systems)
12
Accessing Disk Image (ISO) Files
12
Protecting the Software
13
2 Computer Setup (F10) Utility
14
HP Pro 2110 - Computer Setup (F10) Utilities
14
Using Computer Setup (F10) Utilities
15
Computer Setup-Main
16
Computer Setup-Advanced
17
Computer Setup-Boot
18
Computer Setup-Power
19
Computer Setup-PC Health
20
Computer Setup-Exit
20
HP Pro 3120 - Computer Setup (F10) Utilities
21
Using Computer Setup (F10) Utilities
21
Computer Setup-Main
22
Computer Setup-Advanced
24
Computer Setup-Power
25
Computer Setup-Boot
26
Computer Setup-Exit
27
HP Pro 3125 - Computer Setup (F10) Utilities
27
Using Computer Setup (F10) Utilities
27
Computer Setup-Main
28
Computer Setup-Advanced
30
Computer Setup-Power
31
Computer Setup-Boot
31
Computer Setup-Exit
32
HP Pro 3130 - Computer Setup (F10) Utilities
33
Using Computer Setup (F10) Utilities
33
Computer Setup-Main
34
Computer Setup-Advanced
36
Computer Setup-Power
37
Computer Setup-Boot
38
Computer Setup-Exit
39
3 Serial ATA (SATA) Drive Guidelines and Features
40
SATA Hard Drives
40
SATA Hard Drive Cables
40
SATA Data Cable
40
SMART ATA Drives
41
Hard Drive Capacities
41
4 Identifying the Chassis, Routine Care, and Disassembly Preparation
42
Chassis Designation
43
Minitower
43
Small Form Factor
44
Electrostatic Discharge Information
45
Generating Static
45
Preventing Electrostatic Damage to Equipment
45
Personal Grounding Methods and Equipment
46
Grounding the Work Area
46
Recommended Materials and Equipment
47
Operating Guidelines
47
Routine Care
48
General Cleaning Safety Precautions
48
Cleaning the Computer Case
48
Cleaning the Keyboard
48
Cleaning the Monitor
49
Cleaning the Mouse
49
Service Considerations
49
Power Supply Fan
49
Tools and Software Requirements
50
Screws
50
Cables and Connectors
50
Hard Drives
50
Lithium Coin Cell Battery
51
5 Removal and Replacement Procedures Minitower (MT) Chassis
52
Preparation for Disassembly
52
Access Panel
53
Front Bezel
54
Bezel Blanks
55
Memory
55
DDR3-SDRAM Dimms
55
Populating DIMM Sockets
57
Installing Memory Modules
62
Expansion Cards
64
Cable Management
70
Cable Connections
71
HP Pro 3120
71
HP Pro 3125
71
HP Pro 3130
72
Drives
73
Drive Positions
73
Installing Additional Drives
74
System Board Drive Connections
75
Removing an Optical Drive
78
Removing an Internal 3.5-Inch Hard Drive
79
Front I/O and USB Panel Housing Assembly
82
Power Switch/Led Assembly
83
System Fan
84
Heat Sink Assembly
85
Processor
86
Power Supply
89
System Board
92
Battery
94
Type 1 Battery Holder
95
Type 2 Battery Holder
95
Type 3 Battery Holder
96
6 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
97
Preparation for Disassembly
97
Access Panel
98
Front Bezel
99
Installing Additional Memory
100
Dimms
100
DDR3-SDRAM Dimms
100
Populating DIMM Sockets
101
Installing Dimms
105
Expansion Cards
107
System Fan
113
Cable Management
114
Cable Connections
115
HP Pro 2110
115
HP Pro 3120
115
HP Pro 3130
116
Optical Drive Eject Button
117
Drives
119
Drive Positions
119
Installing and Removing Drives
120
System Board Drive Connections
121
Removing the Optical Drive
123
Removing the Hard Drive
124
Front I/O Assembly
127
Power Switch/Led Assembly
129
Heat Sink
132
Processor
133
Power Supply
136
System Board
138
Battery
140
Type 1 Battery Holder
141
Type 2 Battery Holder
141
7 Restore and Recovery
143
Microsoft System Restore
143
System Recovery
143
System Recovery Options
144
System Recovery from the Windows Start Menu
144
System Recovery at System Startup
145
System Recovery from Recovery Discs
145
Recovery Discs
146
Choosing Recovery Discs
146
Creating Recovery Discs
147
8 Computer Diagnostic Features
148
Hewlett-Packard Vision Diagnostics
148
Accessing HP Vision Diagnostics
148
Survey Tab
149
Test Tab
150
Status Tab
150
History Tab
151
Errors Tab
151
Help Tab
152
Saving and Printing Information in HP Vision Diagnostics
152
Downloading the Latest Version of HP Vision Diagnostics
152
Protecting the Software
153
9 Troubleshooting Without Diagnostics
154
Safety and Comfort
154
Before You Call for Technical Support
154
Helpful Hints
155
Solving General Problems
157
Solving Diskette Problems
161
Solving Hard Drive Problems
163
Solving Media Card Reader Problems
164
Solving Display Problems
166
Solving Audio Problems
169
Solving Printer Problems
171
Solving Keyboard and Mouse Problems
172
Solving Hardware Installation Problems
175
Solving Network Problems
177
Solving Memory Problems
180
Solving CD-ROM and DVD Problems
181
Solving USB Flash Drive Problems
184
Solving Front Panel Component Problems
185
Solving Internet Access Problems
186
Solving Software Problems
189
Contacting Customer Support
190
10 POST Error Messages
191
POST Text Messages
191
Interpreting POST Diagnostic Audible Codes
192
11 Password Security and Resetting CMOS
194
Resetting the Password Jumper
194
Clearing and Resetting the CMOS
195
Appendix A Connector Pin Assignments
197
Ethernet BNC
197
Usb
197
Microphone
197
Headphone
198
Line-In Audio
198
Line-Out Audio
198
4-Pin Power (for CPU)
198
Monitor
199
24-Pin Power
199
PCI Express
200
PCI Express
201
Appendix B Power Cord Set Requirements
202
General Requirements
202
Japanese Power Cord Requirements
202
Country-Specific Requirements
203
Appendix C Specifications
204
Minitower Models
204
Small Form Factor Models
205
Index
206
