Installing the Switch

Sample Network Topologies

Installing the Switch

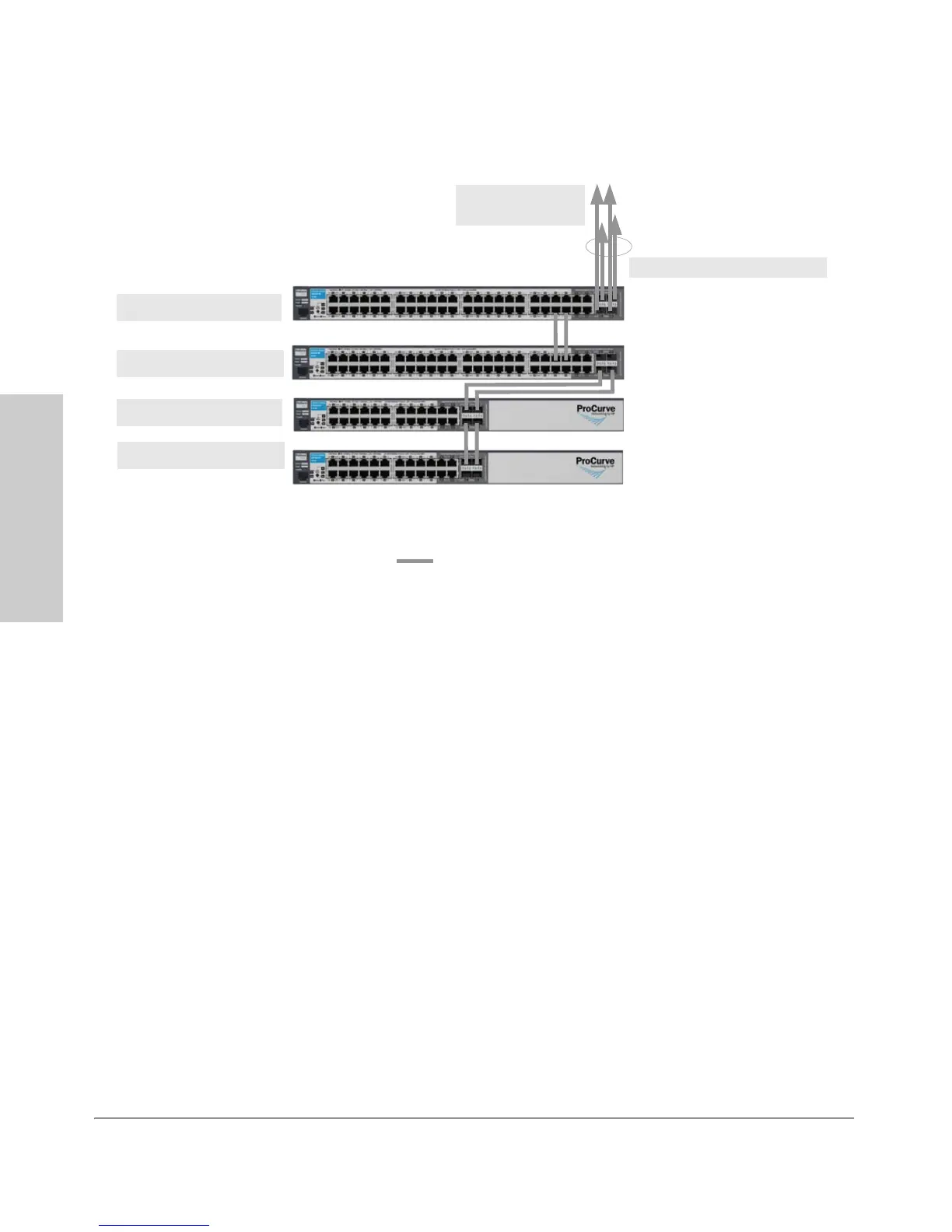

Figure 2-16. Example of stacking switches

LEGEND: GigabitEthernetcable

ProCurve Switch 2510G-24

ProCurve Switch 2510G-48

Gigabit link (use fiber if over 100 meters

ProCurve Switch 2510G-48

ProCurve Switch 2510G-24

To Gigabit-Ethernet

Backbone

Other manuals for HP ProCurve 2510G Series

Need help?

Do you have a question about the HP ProCurve 2510G Series and is the answer not in the manual?

General

Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Manageable	Yes
Storage Temperature	-40°C to 70°C
Ports	24 x 10/100/1000 ports
Memory	128 MB
Jumbo Frame Support	Yes
Layer	Layer 2
Features	VLAN, QoS, ACLs, IGMP snooping
Management	Web interface, CLI, SNMP
Security Features	RADIUS, TACACS+
Power Supply	Internal power supply
Operating Temperature	0°C to 45°C
Power over Ethernet (PoE)	Optional (PoE models available)
