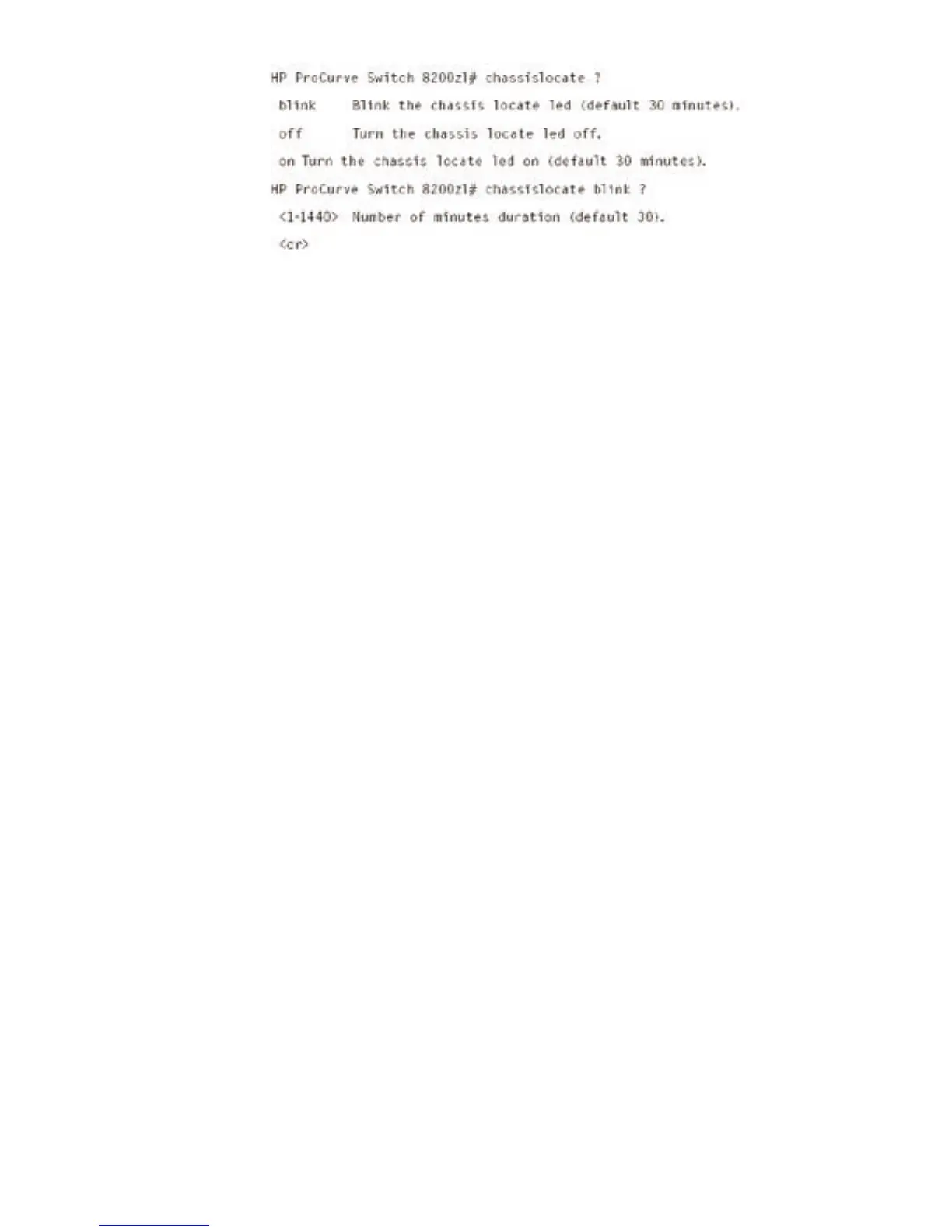

The Locator function is enabled through the following CLI command:
By indicating a number N after either the “blink” or “on” parameter, the locator LED will extinguish
automatically after N minutes. If no value is specified, the default is 30 minutes.
HP ProCurve Switch 5400zl series
The HP ProCurve Switch 5400zl series of high-end edge switches has been designed to be a feature-oriented
high-performance wiring closet switch series. It can also be used as a low-to-medium distribution switch when
used with the Premium License, described later in this document.
The Switch 5400zl series is the latest generation of managed chassis products from HP ProCurve. The 5400zl
series follows in the evolution of HP ProCurve managed chassis switches, featuring Power over Ethernet (PoE) on
every copper port, chassis flexibility in the stackable price range, and a scalable architecture.
The Switch 5406zl and Switch 5412zl each require a single management module that initializes, controls, and
monitors the various line and services modules and the switch fabric. The Switch 5406zl has six slots available
for population with interface and services modules, and it supports up to two internal power supplies. The
Switch 5412zl has twelve interface/services module slots, and it supports up to four internal power supplies.
The 5400zl series shares interface, services modules, and power supplies used with the HP ProCurve Switch
8200zl series. The power supplies can be used for purposes of power redundancy or for additional PoE
requirements. Power redundancy is useful in networks that provide two separate AC power feeds. A minimum
of two power supplies is required for proper operation of all 12 slots in a Switch 5412zl. Up to four power
supplies can be installed in a 5412zl, providing N+N power redundancy. In the event of a failure that would
result in a configuration with one operable power supply, the Switch 5412zl will continue to operate; but
only the top six slots (labeled A through F) will remain powered on, so critical network connections should be
prioritized toward the top of the switch.
A minimum of one power supply is required for proper operation of a 5406zl. Up to two power supplies can
be installed in the 5406zl, providing N+N power redundancy.
The base configuration for the Switch 5406zl (J8697A) includes a management module, Intelligent Edge
software, and 6 open slots. Line interface modules can be added as needed for connectivity. The base
configuration for the Switch 5412zl (J8698A) includes a management module, Intelligent Edge software, and
12 open slots. Line interface modules can be added to the 5412zl as needed for connectivity.
NOTE: No power supplies ship with base chassis products—they must be ordered separately.
The management module monitors the ambient temperature of the system. In the event the temperature exceeds
a product-specified threshold, an SNMP trap and event log entry are generated.
