Hardware options installation 23
Installing the LED cable (ML110 G4)

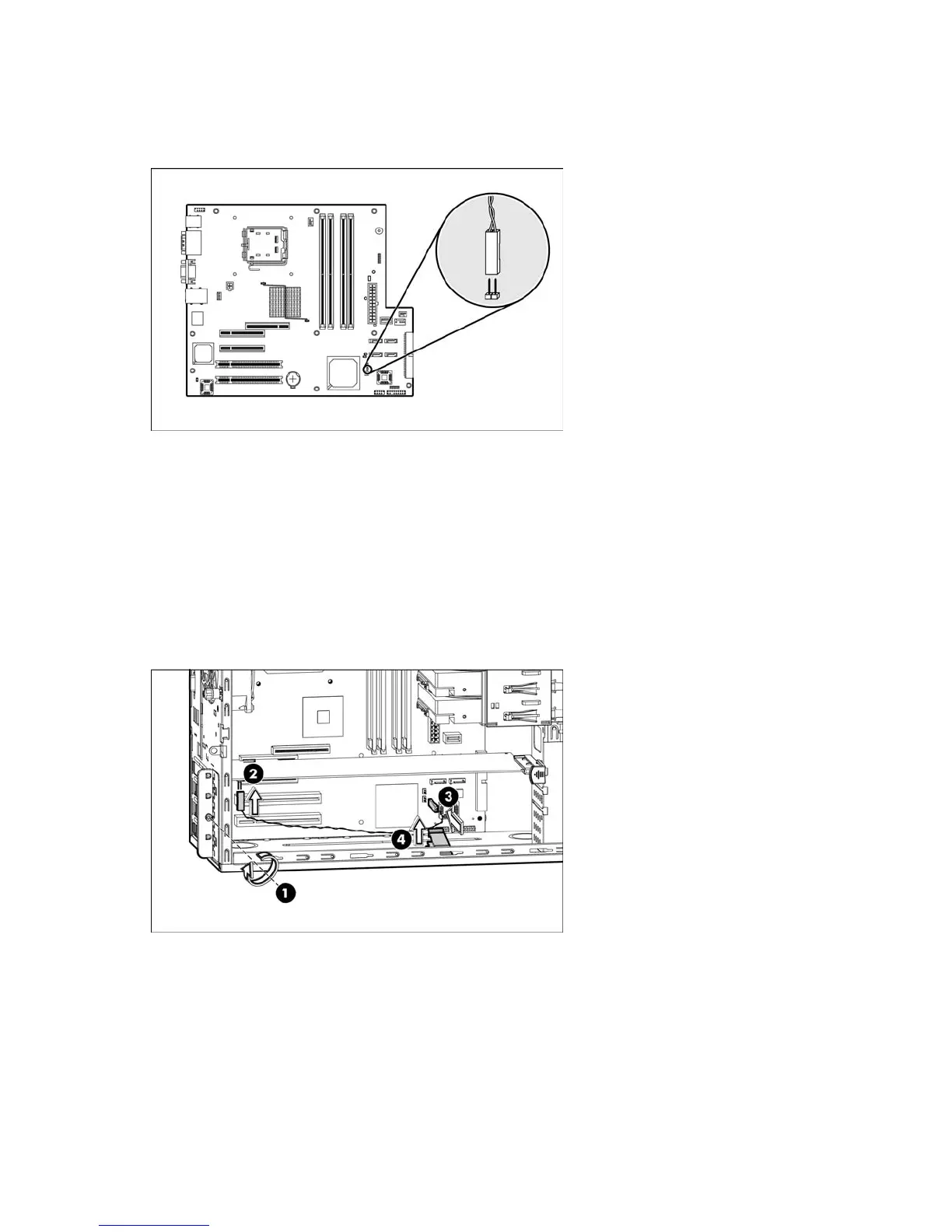

Connector location (ML110 G4)
Cabling an HP Smart Array E200 controller card (ML110 G4)
1. Power down the server (on page 6).
2. Remove the access panel ("Access panel" on page 6).
3. Install an HP Smart Array E200 controller card.
For more information, see the documentation that ships with the option and see "Expansion board
options (on page 41)."
4. Connect the LED cable to the controller card and to the system board.
5. Open the cable clamp.
