Hardware opt
ions
installation
28
6.
Secure the ca
ble with the c
able tie.
7.
Install the access panel.
8.
Power up th
e server
(on page
6
).
I
nsta
lling
the LE
D ca
ble
(ML110 G
5, ML
115
G5, an
d ML
150
G5)

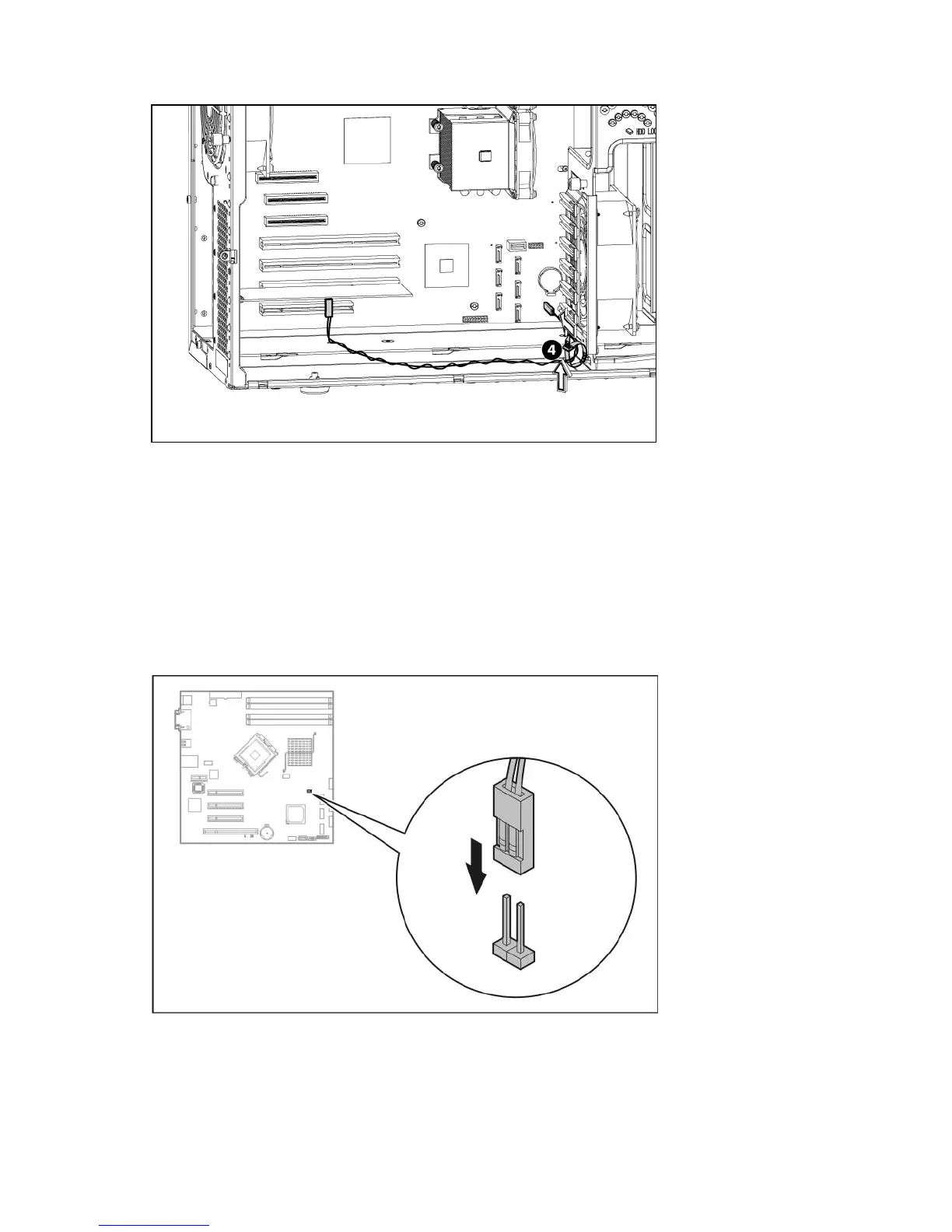

Connector locations (ML110 G5, ML11
5
G5, and
ML150 G5)
•
HP ProLiant ML11
0 Generati
on 5 Server
27
29
Table of Contents
Default Chapter
1
User Guide
1
Table of Contents
3
Server Operations
6
Power up the Server
6
Power down the Server
6
Access Panel
6
Server Setup
7
Optional Installation Services
7
Rack Planning Resources
7
Optimum Environment
7
Space and Airflow Requirements
8
Temperature Requirements
8
Power Requirements
9
Electrical Grounding Requirements
9
Rack Warnings
10
Installing Hardware Options
10
Powering up and Configuring the Server
10
Installing the Operating System
10
Registering the Server
10
Hardware Options Installation
11
Introduction
11
Processor Option
11
Installing a Processor in HP Proliant ML150 Generation 3 and Generation 5 Servers
11
Installing a Processor in HP Proliant ML110 (G2, G3, and G4) and Proliant ML150 Generation 2 Servers
14
Installing a Processor in HP Proliant ML110 Generation 5 Servers
16
Installing a Processor in HP Proliant ML115 and ML115 Generation 5 Servers
17
SAS or SATA Hard Drive Options
19
Hard Drive LED Cable Option
22
Installing the LED Cable (ML110 G4)
23
Installing the LED Cable (ML150 G3)
26
Installing the LED Cable (ML110 G5, ML115 G5, and ML150 G5)
28
Removable Media Device Options
33
Installing Media Devices with Rails
33
Installing Media Devices with Screws
34
Installing Media Devices with a Media Latch
36
Installing Media Devices with Wire Retainers
37
Memory Options
40
Interleaving and Non-Interleaving Memory Configuration
40
Installing Dimms
40
Expansion Board Options
41
Installing an Expansion Board with a Single Retainer
41
Installing an Expansion Board with Individual Retainers
43
Installing an Expansion Board with an External Retainer
45
Server Software and Configuration Utilities
48
Rompaq Utility
48
HP Insight Diagnostics
48
Keeping the System Current
48
Drivers
48
Subscriber's Choice
48
Embedded SATA RAID Feature
49
Required Hardware
49
Configuring the SATA RAID Feature
50
Creating a Raid Volume
52
USB Diskette and CD-ROM Drives
53
Installing an Operating System
54
Troubleshooting
55
Pre-Diagnostic Steps
55
Important Safety Information
55
Symbols on Equipment
55
Warnings and Cautions
56
Symptom Information
57
Preparing the Server for Diagnosis
57
Common Problem Resolution
58
Loose Connections
58
DIMM Handling Guidelines
59
Hard Drive Guidelines
59
Sas and Sata Hard Drive Led Combinations
60
Troubleshooting Flowcharts
61
Start Diagnosis Flowchart
62
General Diagnosis Flowchart
62
Power-On Problems Flowchart
64
POST Problems Flowchart
66
OS Boot Problems Flowchart
68
Server Fault Indications Flowchart
69
Hardware Problems
71
Power Problems
72
General Hardware Problems
73
Unknown Problem
74
Internal System Problems
75
Diskette Drive Problems
77
Fan Problems
79
Hard Drive Problems
80
Memory Problems
81
Ppm Problems
82
System Open Circuits and Short Circuits
83
Processor Problems
83
External Device Problems
84
Video Problems
84
Audio Problems
85
Printer Problems
85
Mouse and Keyboard Problems
85
Modem Problems
86
Network Controller Problems
88
Software Problems
89
Operating System Problems
89
Operating System Updates
90
Restoring to a Backed-Up Version
90
When to Reconfigure or Reload Software
91
Linux Operating Systems
91
Application Software Problems
91
Firmware Maintenance
92
Types of ROM
92
System Rom
92
Rompaq Utility Diskette or USB Drive Key
93
Current Firmware Versions
93
Updating Firmware
94
Drivers
94
Contacting HP
94
Contacting HP Technical Support or an Authorized Reseller
94
Server Information You Need
95
Operating System Information You Need
95
Battery Replacement
98
Regulatory Compliance Notices
99
Regulatory Compliance Identification Numbers
99
Federal Communications Commission Notice
99
FCC Rating Label
99
Class a Equipment
99
Class B Equipment
99
Declaration of Conformity for Products Marked with the FCC Logo, United States Only
100
Modifications
100
Cables
100
Canadian Notice (Avis Canadien)
101
European Union Regulatory Notice
101
Disposal of Waste Equipment by Users in Private Households in the European Union
101
Japanese Notice
102
BSMI Notice
103
Korean Notice
103
Laser Compliance
103
Battery Replacement Notice
104
Taiwan Battery Recycling Notice
104
Power Cord Statement for Japan
104
Acoustics Statement for Germany (Geräuschemission)
104
Electrostatic Discharge
105
Preventing Electrostatic Discharge
105
Grounding Methods to Prevent Electrostatic Discharge
105
Technical Support
106
HP Contact Information
106
Before You Contact HP
106
Customer Self Repair
106
Acronyms and Abbreviations
114
Index
118
