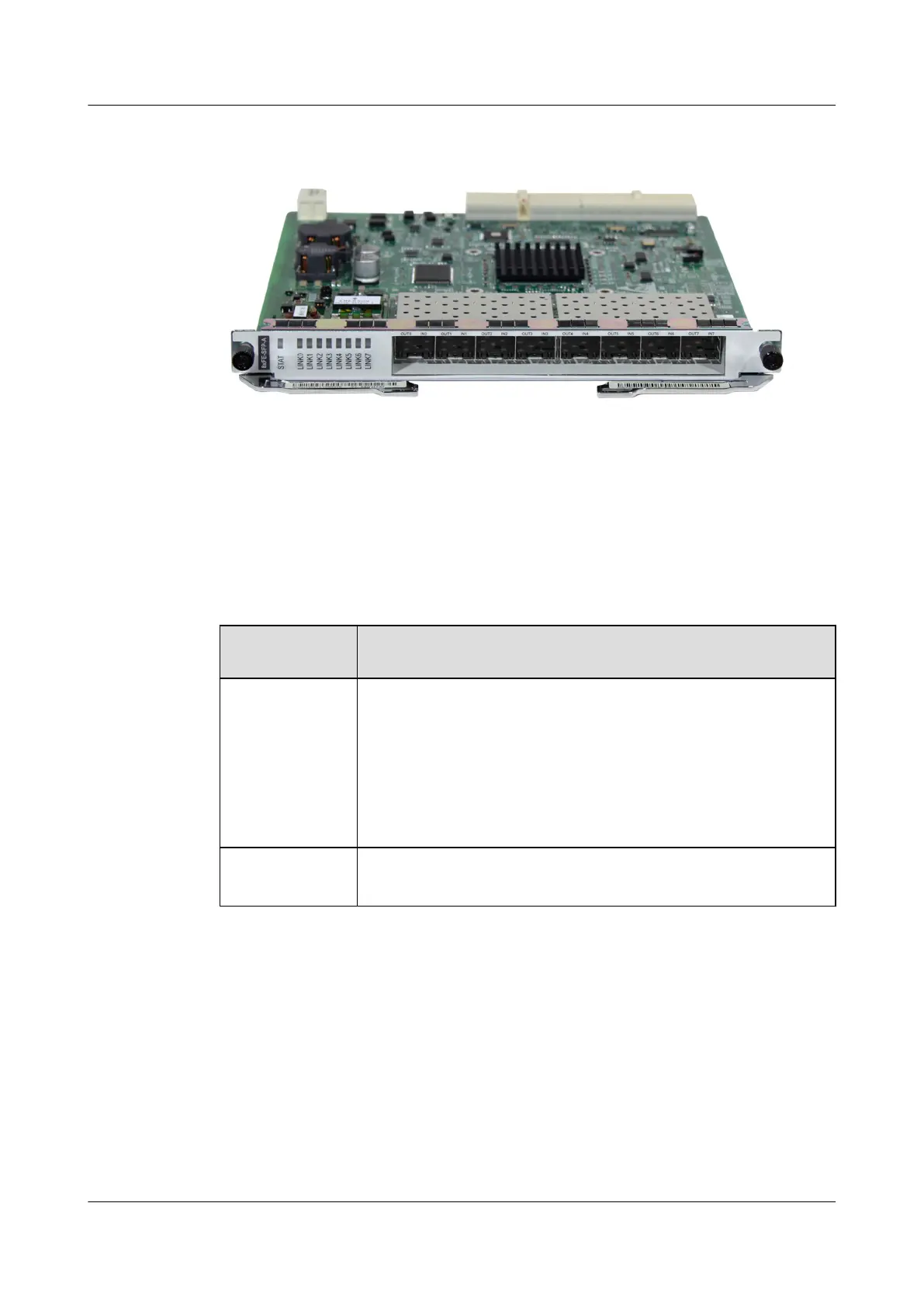

Figure 3-3 Appearance of the 8-Port 100Base-X-SFP Flexible Interface Card (FIC, Supporting
1588v2)
Panel Description
Table 3-15 lists the indicators on the 8-Port 100Base-X-SFP Flexible Interface Card (FIC,
Supporting 1588v2).
Table 3-15 Description of the indicators on the 8-Port 100Base-X-SFP Flexible Interface Card
(FIC, Supporting 1588v2)
Indicator/
Button
Meaning
STAT If the indicator is steady green, it indicates that the FPIC works normally.
If the indicator is off, it indicates that the FPIC is powered off or is not
registered.
If the indicator is steady red, it indicates that the hardware on the FPIC
is faulty.
If the indicator is steady yellow, it indicates that the FPIC is not loaded
with the logic.
LINK/ACT
(green)
If the indicator is steady green, it indicates that the FPIC works normally.
If the indicator is off, it indicates that the link is Down.
Interface Attributes
Table 3-16 lists the interface attributes of the 8-Port 100Base-X-SFP Flexible Interface Card
(FIC, Supporting 1588v2).
HUAWEI NE40E-X1 & NE40E-X2 Universal Service
Router
Hardware Description 3 Boards
Issue 02 (2011-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
53
