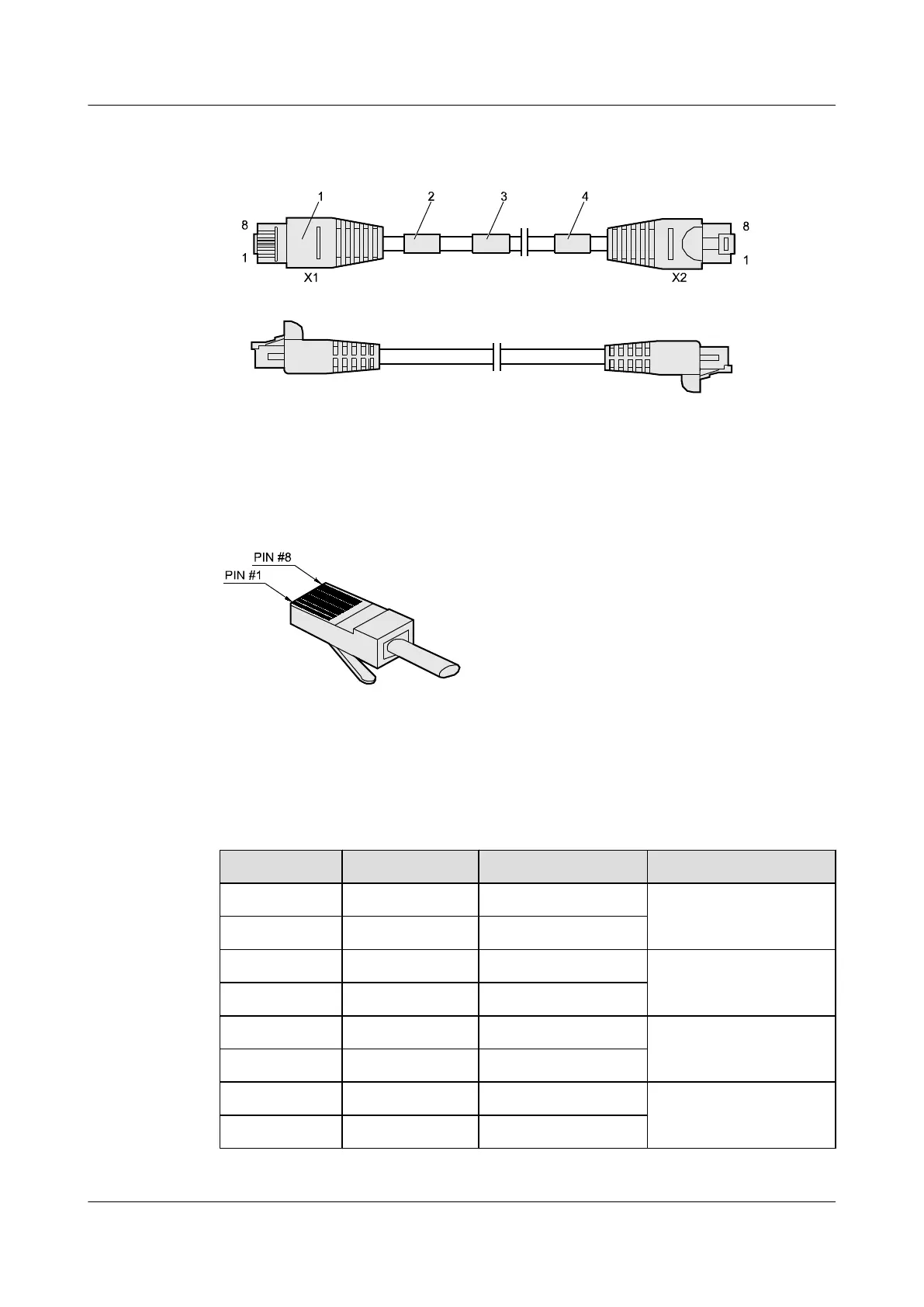

Figure 4-4 Network cable
1. Connector - RJ45 2. Label 1 3. Main label 4. Label 2
Figure 4-5 RJ45 connector
Table 4-11 and Table 4-12 show the pin assignments of the straight-through cable and the
crossover cable respectively.
Table 4-11 Pin assignments of the straight-through cable
Connector X1
Connector X2 Color Relationship
X1.2 X2.2 Orange Twisted
X1.1 X2.1 White/orange
X1.6 X2.6 Green Twisted
X1.3 X2.3 White/green
X1.4 X2.4 Blue Twisted
X1.5 X2.5 White/blue
X1.8 X2.8 Brown Twisted
X1.7 X2.7 White/brown
HUAWEI NE40E-X1 & NE40E-X2 Universal Service
Router
Hardware Description 4 Cables
Issue 02 (2011-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
82
